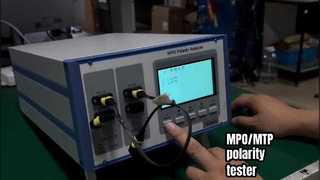

MPO Polarity Tester For MTP Fiber Patch Cords

Fiber Patch Cord Manufacturing Machine
December 28, 2025
Chat Now Contact Us
Brief: Get a guided demo that shows common workflows and troubleshooting tips for the MPO Polarity Tester. This video demonstrates how to perform polarity judgment and continuity analysis during MPO/MTP patch cord production, using visible red light to inspect line sequence status for both MPO-MPO patch cords and fan-out cables. You'll see how this tester provides a fast, accurate, and reliable solution for production, semi-finished, and finished product testing.
Related Product Features:
  • Compatible with 12, 24, 16, 32, and 48-core MPO/MTP fiber patch cords, including special core configurations.
  • Works with SM 9/125, MM 50/125, and MM 62.5/125 fiber core types for versatile testing applications.
  • Supports user-defined polarity settings for customized testing requirements.
  • Features study mode and error alarm functions to enhance testing accuracy and efficiency.
  • Provides error polarity analysis to quickly identify and troubleshoot connectivity issues.
  • Allows for easy replacement of MPO connector vulnerable parts to maintain device longevity.
  • Supports USB, RS232, and upper monitor application for flexible connectivity and data management.
  • Operates within a temperature range of -5 to +40°C, suitable for various production environments.
FAQs:
  • What types of fiber patch cords is this MPO Polarity Tester compatible with?
    The tester is compatible with 12, 24, 16, 32, and 48-core MPO/MTP fiber patch cords, including special core configurations, and supports SM 9/125, MM 50/125, and MM 62.5/125 fiber types.
  • Does the MPO Polarity Tester support custom polarity settings?
    Yes, the device supports user-defined polarity settings, allowing for customized testing to meet specific production or quality control requirements.
  • What connectivity options are available for data output and monitoring?
    The MPO Polarity Tester supports USB, RS232, and upper monitor application interfaces, enabling flexible connectivity for data transfer and integration with monitoring systems.
  • What is the operating temperature range for this tester?
    The device operates effectively within a temperature range of -5 to +40°C, making it suitable for use in standard production and testing environments.
