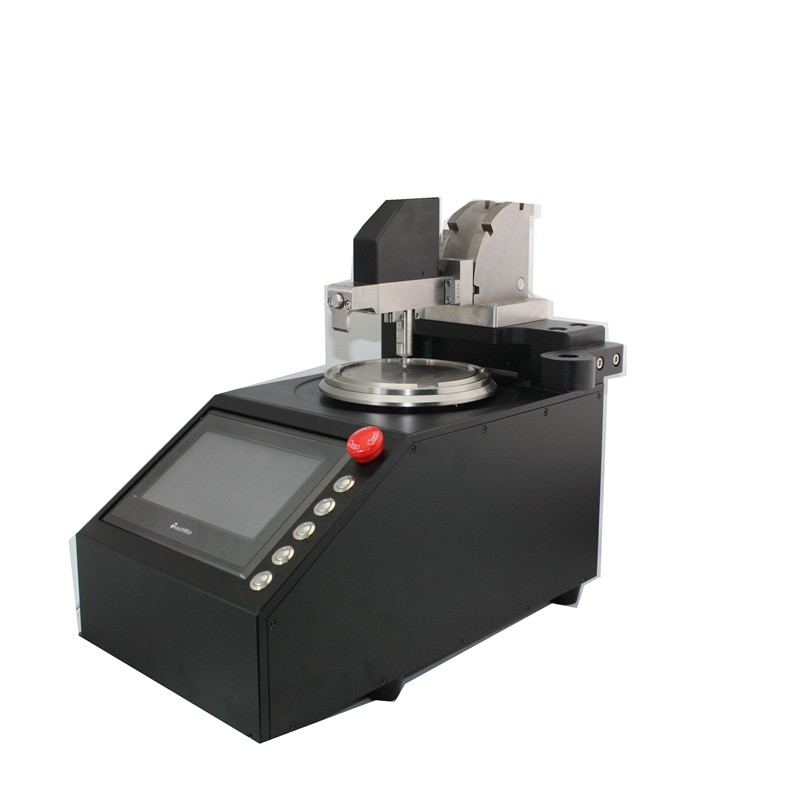

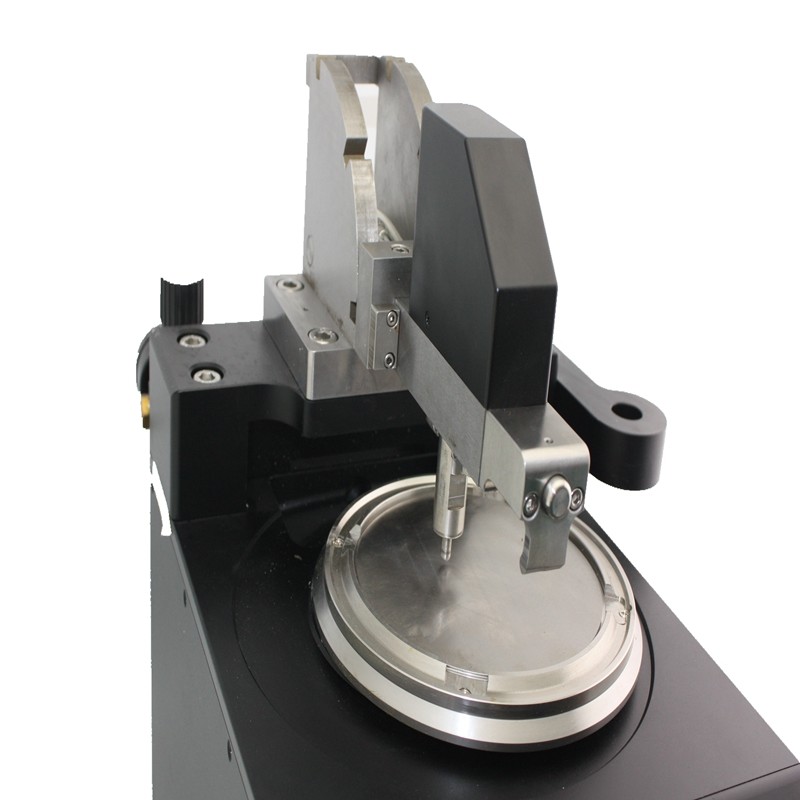

MTP MPO Fiber Optic Polishing Machine

Brand Name: CLX
Model Number: CLX-04E
Place of Origin: Guangdong,China
Minimum Order Quantity: 1 Set
Price: Negotiable
Supply Ability: 10 set/week

Product Details


Type: Fiber Optic Production Machine Pressure Source: Compressed Air&Motor
Polishing Capacity: Maximum 24 Connector Warranty: 1 Years
Input Voltage: 100-240VAC,50/60Hz Application: Polishing Connector MT,mini-MT,MPO,SC/FC/ST,LC/MU
Highlight

MTP Fiber Optic Polishing Machine

,

MPO Fiber Optic Polishing Machine

,

MPO Optical Fiber Connector Machine

Product Description

MPO high Precision Fiber Optic Polishing Machine MPO Fiber connector Programmable Polishing Machine


Model:CLX-04E

Place of Origin:ShenZhen,China


Product description:

CLX-04E fiber polishing machine is designed for MTP MPO connector polishing. And it is also used for regular simplex fiber connector polishing, such as SC, FC, ST, LC upc and APC end-face.


Structure

1. Power switch: machine power on/off.

2. FUSE specification: 250V/0.5A

3. Speed Adjustor: used for adjustment of polishing plate’s rotating speed.

4. ON/OFF button: click ON button, run machine, click OFF button, stop machine.

5 . Timer: set/display polishing duration.

6. Counter: record polishing quantity, reset record by pressing RST button.


Key Features

1, Dual APC & PC polishing
2, Designed for high volume manufacturing
3, Accommodates most styles of connectors
4, Quick change tooling
5, APC back reflection as low as -70 dB UPC back reflection as
6, low as -60 dB
7, Insertion loss 0.2 dB typical
8, Super centering accuracy
9, Low undercut
10, Excellent connector endface polishing quality


Specification

Item Index
Power Source
Voltage : Frequency AC 110-120V: 50Hz/60Hz Or AC 220-240V: 50Hz
Power waste 80VA
Drive Units
Big motor (rpm) 15W,Including transmission
Small motor (rpm) 6 W,Including transmission
Fan φ90mm
Operation unit
Control time Set the growth time of 0.1mins ,maximum time is 3min the middle button is power switch, right button is the start switch
Power switch
Timing switch
Pressure unit Centre coil spring
Pressure way
Polishing
The least grinding ferrule abrasive sheet level grinding by polishing pad and polishing by PC connector 1 - 48 connector
Outer diameter:110mm
Glass pad
Synthetic rubber pad
Performance
Polish PC connector Four-step, 1.4 to 2.4 minutes
Polish APC connector Five-step, 3.0 to 5.0 minutes
Dimension W230 × D230 × H350 mm
Weight Weight



FAQ

1. Are you a factory or a trader?

-we are factory.

2. What is your MOQ?

-MOQ 1 piece.

3. Do you provide sample services?

-Yes, we will provide samples(Samples at prices announced by chuanglixun).

4. How will you ship to me?

-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.

5. How do we pay

-Book in advance or multiple payment methods such as T / T and T / L.

6. How long is your product warranty?

-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7. Do you provide customized services?

-Yes, we provide customized services, According to customer requirements and description.
