0.9MM Fiber Optic Pigtail Connector , SM MM LC Optical Connector Temperature Control
Product Details
| Product Name: | Optical Fiber Pigtail Optic LC 0.9 Connector Parts | Connector Type: | LC |
|---|---|---|---|
| Type: | Fiber Optic Connectors | Fiber Type: | SM OM1 OM2 OM3 OM4 |
| Custom Design: | Welcome | Application: | FTTX,CATV Metro,LAN |
| Use: | Patch Cord,PLC Splitter,Pigtail | Advantage: | Best Price,Best Service |
| Highlight |
0.9MM Fiber Optic Pigtail Connector,LC Optical Connector,SM MM LC Optical Connector |
||
Product Description

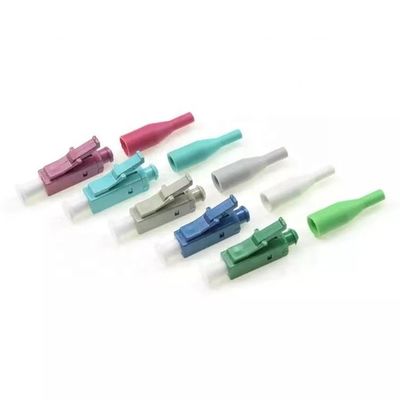

Optical fiber pigtail optic LC 0.9 connector parts OM4 OM3 SM MM LC 0.9 boot connector
Model:SX-MM-LC-0.9mm
Place of Origin:ShenZhen,China
Description
| Product Name | Optical fiber pigtail optic LC 0.9 Connector Parts |
| Model Number | LC 0.9 fiber optic connector |
| Fiber Type | SM OM1 OM2 OM3 OM4 |
| Connector Type | LC |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Application | FTTX,CATV Metro,LAN |
| Form of sale | OEM/ODM |
| Use | Patch cord,PLC splitter,Pigtail |
| Custom Design | Welcome |
| Sample Lead Time | 1 day |
| Sample Price | As per sample details |
| Certificate | ROHS,SGS,CE |
| Advantage | Best price,Best service |
| Feature | 1. pass high&low temperature test |
Feature
• Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.
Specifications
| Parameter | Unit | FC,SC,LC | ST,MU | MT-RJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥50 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating Wavelength | nm | 1310,1550 | 1310,1550 | 1310,1550 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | ℃ | -40～+75 | -40～+75 | -40～+75 | |||||||
| Storage temperature | ℃ | -40～+85 | -45～+85 | -45～+85 | |||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | |||||||
