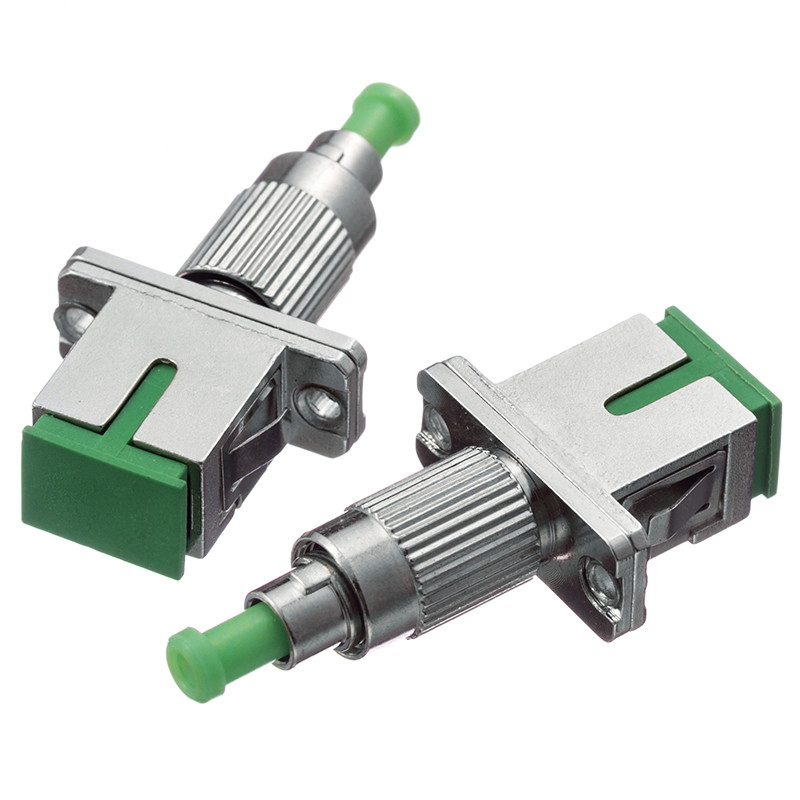

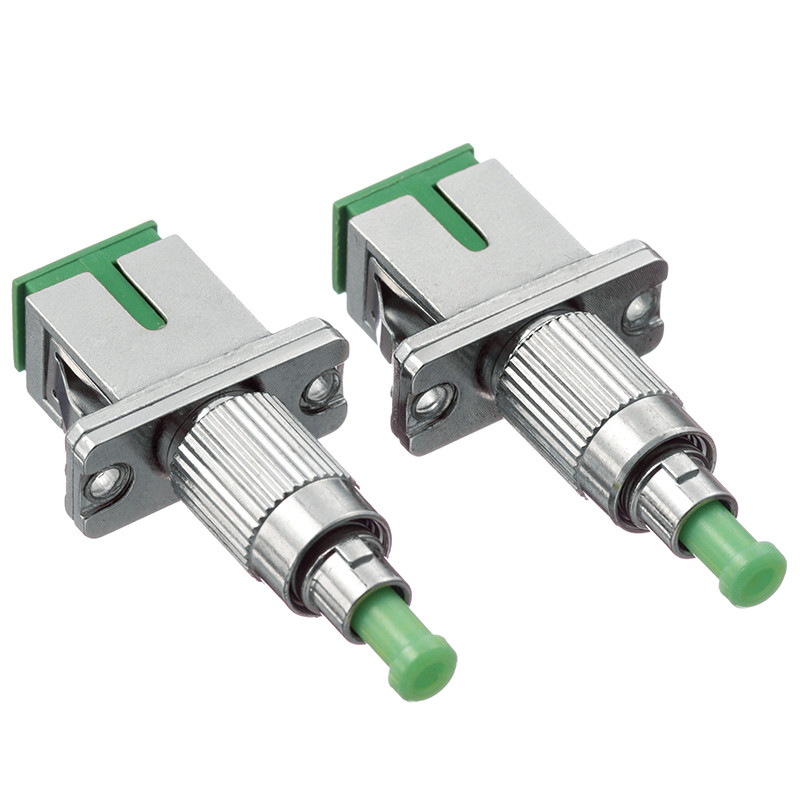

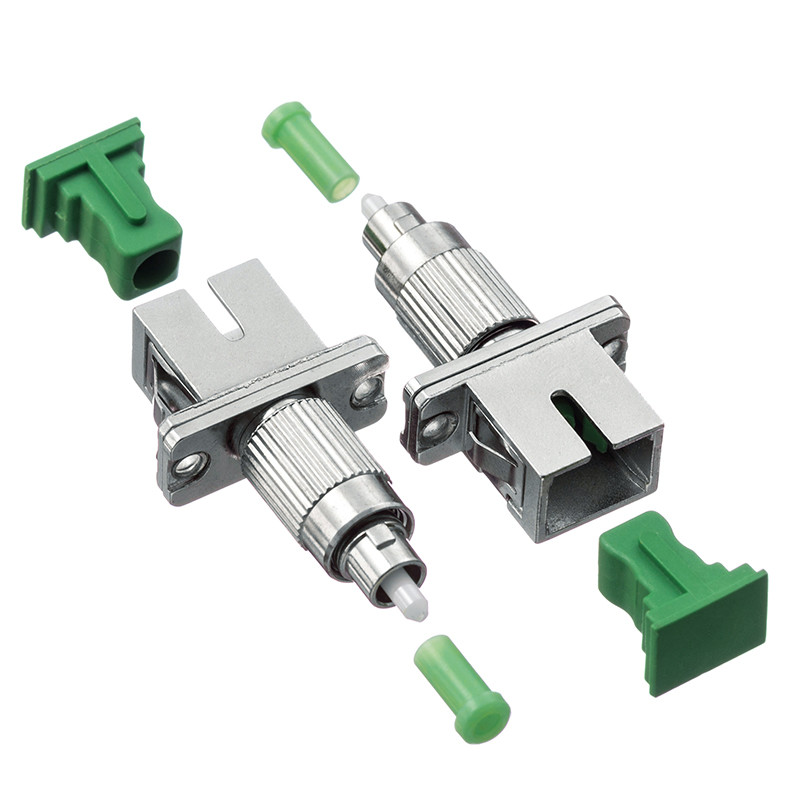

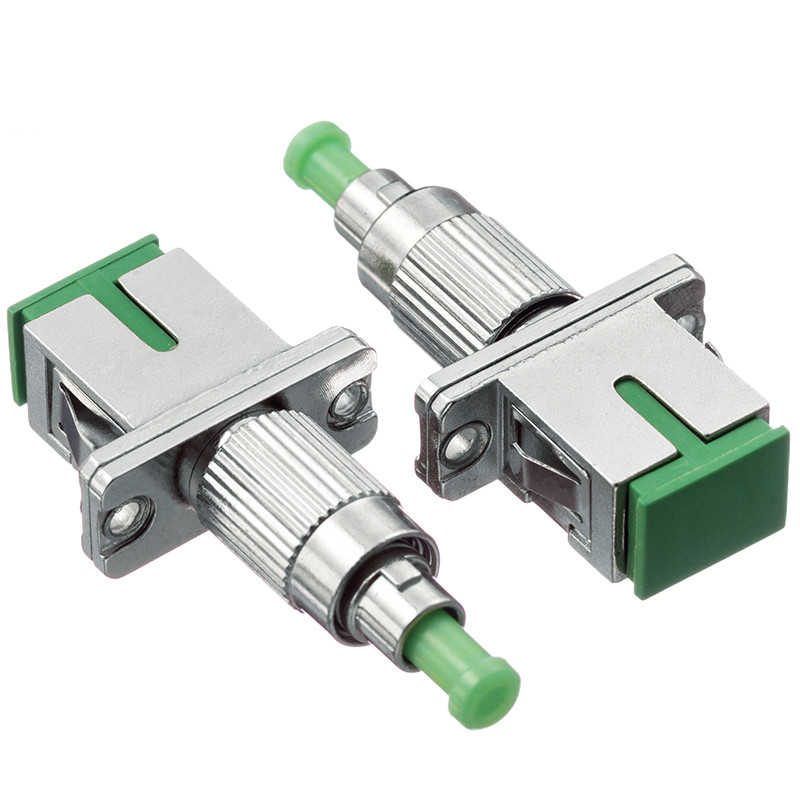

SC female to FC APC male SM SX fiber optic adapter hybrid adaptor
Model:SM-SX-SC/APC-FC/APC
Place of Origin:ShenZhen,China
Description
SC Female to FC male conversion adapter adopt embedded optical fiber connector and optical fiber ferrule matching Sleeve joint technology. The products can hybrid a type of fiber optic connectors (male) into another type of optical fiber connector (male). It keeps the advantages of small size, light signal stable, easy to use characteristics, widely used in optical fiber equipment instrument testing and rescue project construction field.
Features
Specifications
| Test item | (SM-9/125) APC |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥60 dB |
| Durability (500 Mating) | 0.2dB Max. |
| Operation Temp | -40~+85 |
| Storage Temp | -40~+85 |
| Remark: SC Female to FC Male Hybrid Adapter are ultra-reliable components featuring low insertion loss and back reflection loss. You can select single mode 9/125um or multimode 62.5/125um or multimode 50/125um. | |
Packaging
Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box
Other size carton is available too.
