12 Cores Steel Wire Aerial Fiber Optic Patch Cord Cable Self Supporting For Outdoor
Product Details
| Product Name: | 12 Cores SM GYXTW Outdoor Fiber Cable | Jacket: | PE |
|---|---|---|---|
| Fiber Type: | SM G652D, G657A1, G657A2 | Color: | Black |
| Package: | Drum, Cartns | Cable Type: | GYXTW Outdoor Cable |
| Highlight |
Steel Wire Fiber Optic Patch Cord Cable,12 Cores Fiber Optic Patch Cord Cable,aerial fiber optic cable |
||
Product Description

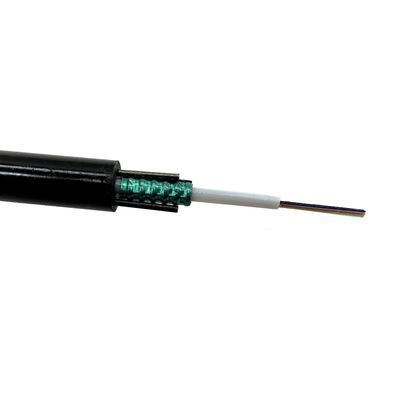

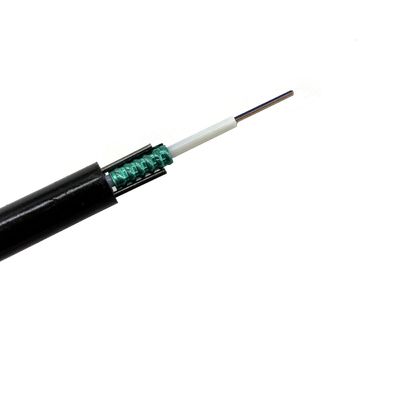

12 Cores Single Mode G657A G652D GYXTW Aerial Outdoor Steel Wire Fiber Optic Cable FTTH GYXTW Outdoor Fiber Cable
Technical Parameter
|
Fiber Count (F) |
Cable Diameter (mm) |
Cable Weight (kgs) |
Tensile Strength (N) | Crush Strength (N) | Min. Bending Radius |
Temperature Range (℃) |
|||
| Long term | Short Term | Long term | Short Term | Long term | Short Term | ||||
| 2 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 4 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 6 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 8 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 10 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
| 12 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 |
Packaging & Shipping
| Cable Type | Drum Length (KM) | Drum/Carton size (cm) | Gross weight/CTN (kgs) | KMs/20ft |
| GYXTW 2~12F | 2 | 70*70*60 | 160 | 144 |
Our Services
1. Advanced production and testing equipment
2. Professional manufacturer, 100% tested.
3. Full compliance with ISO 9001:2008 quality management system
4. Our company has experienced professional team
5. Provide reliable solutions and satisfactory services
6. Warmly services with careful attentions.
7. Can provide your specific inquiry within 24 hours.Advanced production and testing equipment
