24 Port FC UPC Fiber Optic Polishing Jig with Hardened Stainless Steel S136 for High Efficiency Connector Polishing

1
MOQ
$210.23-230.51
Price
24 Port FC UPC Fiber Optic Polishing Jig with Hardened Stainless Steel S136 for High Efficiency Connector Polishing
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Hardened Stainless Steel S136
Dimensions: 174mmx174mmx5.1mm
Weight: 1.2kg
No. Of Fiber: 24
Connector Type: FC PC
End-face: PC
Ferrule Diameter: 2.5mm
Capacity: 24 Positions
Insertion Loss: ≤0.20dB
Return Loss: ≥55dB (PC)
Radius Of Curvature: 5-25mm
Apex Offset: 0-50μm
Fiber Height: -100~+50μm
Angle: 8.00+/-0.50°
First Pass Yield: 98%～100%
Highlight:

24 Port Polishing Fixture

,

Hardened Stainless Steel S136 Fiber Optic Polishing Jig

,

High Efficiency Polishing Holder
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: chuanglixun
Model Number: FC UPC-24, FC UPC-24
Payment & Shipping Terms
Product Description
24 Port FC UPC Fiber Optic Polishing Jig
High-performance optical fiber polishing fixture designed for FC UPC connectors, delivering exceptional surface quality and stability for fiber optic connector manufacturing.

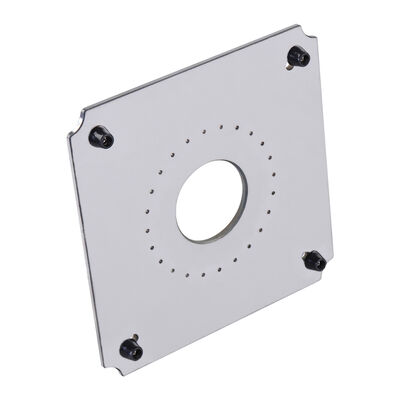

24 Port FC UPC Fiber Optic Polishing Jig with Hardened Stainless Steel S136 for High Efficiency Connector Polishing 0
Product Overview
This precision fiber polishing fixture/jig offers high stability and superior surface quality. Manufactured from high-quality S2316 hardened steel with heat treatment for extended service life. Available in various configurations for SC, FC, ST, LC connectors and custom designs.
Key Features
  • Designed specifically for FC/PC connectors
  • Easy jig changing with simple, flexible operation
  • High efficiency: polishes up to 24, 32, or 36 connectors per cycle
  • First-pass yield for end face quality reaches 98%–100%
  • IPC structure with independent compression for each connector
  • Interference pass rate ≥98% (typical 100% per IEC standards)
  • PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories for extended service life

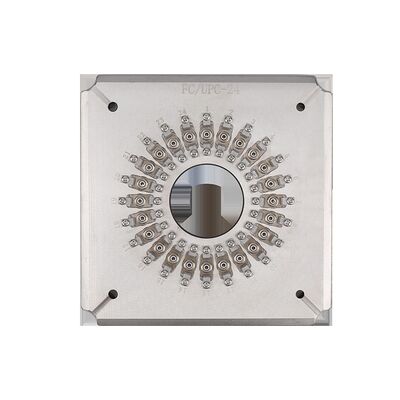

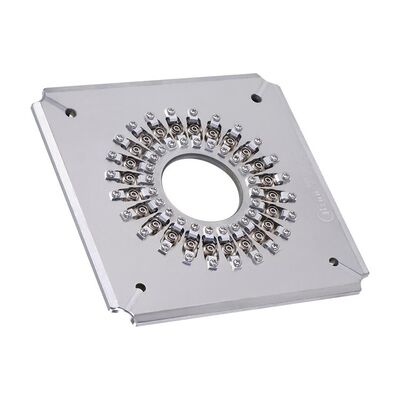

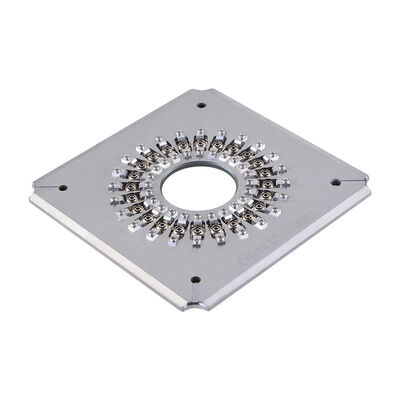

24 Port FC UPC Fiber Optic Polishing Jig with Hardened Stainless Steel S136 for High Efficiency Connector Polishing 1 24 Port FC UPC Fiber Optic Polishing Jig with Hardened Stainless Steel S136 for High Efficiency Connector Polishing 2 24 Port FC UPC Fiber Optic Polishing Jig with Hardened Stainless Steel S136 for High Efficiency Connector Polishing 3
Technical Specifications
Parameter FC-PC-24 FC-PC-32 FC-PC-36
Brand CLX CLX CLX
Connector Type FC PC FC PC FC PC
End-face PC PC PC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (PC) ≥55dB (PC) ≥55dB (PC)
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.5 kgs / 2.0 kgs
Suitable Machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar equipment
Get a free Quotation via Us >>>GO
Polishing Performance Results
Polished Connector Ferrule Faces:
24 Port FC UPC Fiber Optic Polishing Jig with Hardened Stainless Steel S136 for High Efficiency Connector Polishing 4
High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges.
Insertion Loss & Return Loss Test Results:
24 Port FC UPC Fiber Optic Polishing Jig with Hardened Stainless Steel S136 for High Efficiency Connector Polishing 5
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return Loss ≥55dB ≥60dB ≥30dB
Geometry Test Results:
24 Port FC UPC Fiber Optic Polishing Jig with Hardened Stainless Steel S136 for High Efficiency Connector Polishing 6
Parameter UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
Get a free Quotation via Us >>>GO
Manufacturer Profile
24 Port FC UPC Fiber Optic Polishing Jig with Hardened Stainless Steel S136 for High Efficiency Connector Polishing 7
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Established in 2010, we are an optical communications equipment company integrating research and development, production, after-sales service and technical services. We provide high-quality products, comprehensive after-sales support, and free technical assistance for fiber optic connector production challenges.
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
MOQ 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx in 4 to 6 days, with extended timelines based on order quantity.
How do we pay?
Advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty with free repairs (excluding consumables). After warranty, accessories provided at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements.
