I. Product Overview

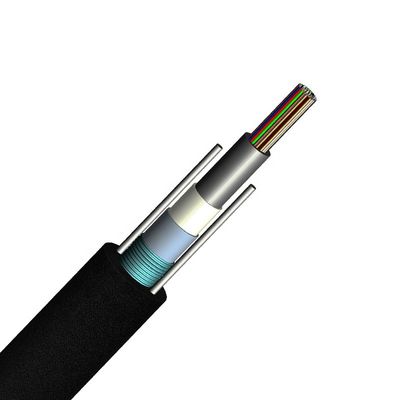

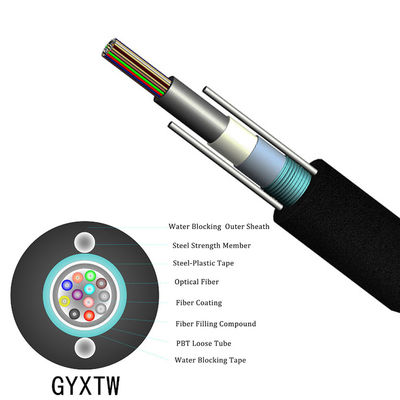

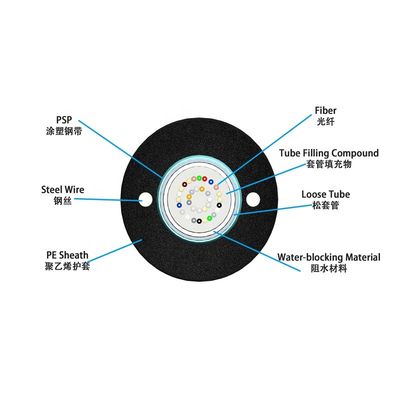

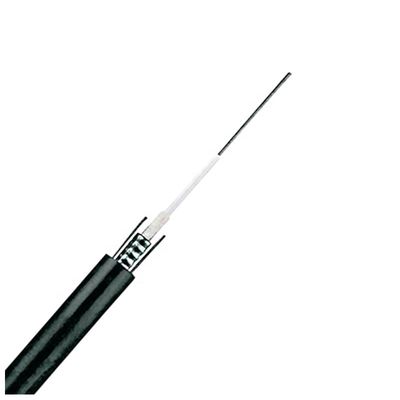

Central tube construction, jelly compound filled, water blocking tape and steel tape, then PE outer sheath incorporated with two steel wire strength elements.
II. Features
1. Low dispersion and attenuation
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable
3. excellent mechanical and environmental properties
4. Compact structure and lightness, flexible and good bend-resistant performance
5. With small cable diameter, light cable weight, self-supporting
6. Operating Temperature : -40 ~ +60 C
The tube color is nature. And fiber color in the tube starts from No. 1 Blue
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Purple | Pink | Aqua |
| No. | 13 | 14 | 15 | 16 | 17 | 18 |
| Color | Blue S100 | Orange S100 | Green S100 | Brown S100 | Gray S100 | White S100 |
| No. | 19 | 20 | 21 | 22 | 23 | 24 |
| Color | Red S100 | Nature S100 | Yellow S100 | Purple S100 | Pink S100 | Aqua S100 |
Specifications
| SN | Item | Unit | Value | ||
| 1 | No. of fibers | count | 4/6 | 8/12 | 24 |
| 2 | Tube diameter | count | 2.2 | 2.4 | 3.2 |
| 3 | Cable diameter(±5%) | mm | 8.5 | 8.7 | 9.5 |
| 4 | Cable weight(±10%) | kg/km | 72 | 74 | 87 |
| 5 | Short term tension | N | 1500 | ||
| 6 | Short term crush | N/100mm | 1000 | ||
Characteristic of Optical Cable
1 Min. bending radius for installation
| Static | 15 x cable diameter |
| Dynamic | 20 x cable diameter |
2.Application temperature
| range Operation | - 40℃ ~ +60℃ |
| Installation | -10℃ ~ +60℃ |
| Storage/transportation | - 40℃~ +60℃ |
3.Main mechanical & environmental performance test
| Item | Test Method | Acceptance Condition |
| Tensile Strength IEC 60794-1-2-E1 | - Load: Short term tension - Length of cable: about 50m - Load time: 1min |
- Fiber strain £ 0.6% - No fiber break and no sheath damage. |
| Crush Test IEC 60794-1-2-E3 |
- Load: Short term crush - Load time: 1min |
- Loss change £ 0.1dB@1550nm - No fiber break and no sheath damage. |
Characteristic of Optical Fiber
G652D fiber information
| Mode field diameter (1310nm) | 9.2mm±0.4mm |
| Mode field diameter (1550nm) | 10.4mm±0.8mm |
| Cut off wavelength of cabled fiber (lcc) | £1260nm |
| Attenuation at 1310nm | £0.36dB/km |
| Attenuation at 1550nm | £0.22dB/km |
| Bending loss at 1550nm (100 turns, 30mm radius) | £0.05dB Dispersion in the range 1288 to 1339nm: £3.5ps/ (nm•km) |
| Dispersion at 1550nm | £18ps/ (nm•km) |
| Dispersion slope at zero dispersion wavelength | £0.092ps/ (nm2•km) |
