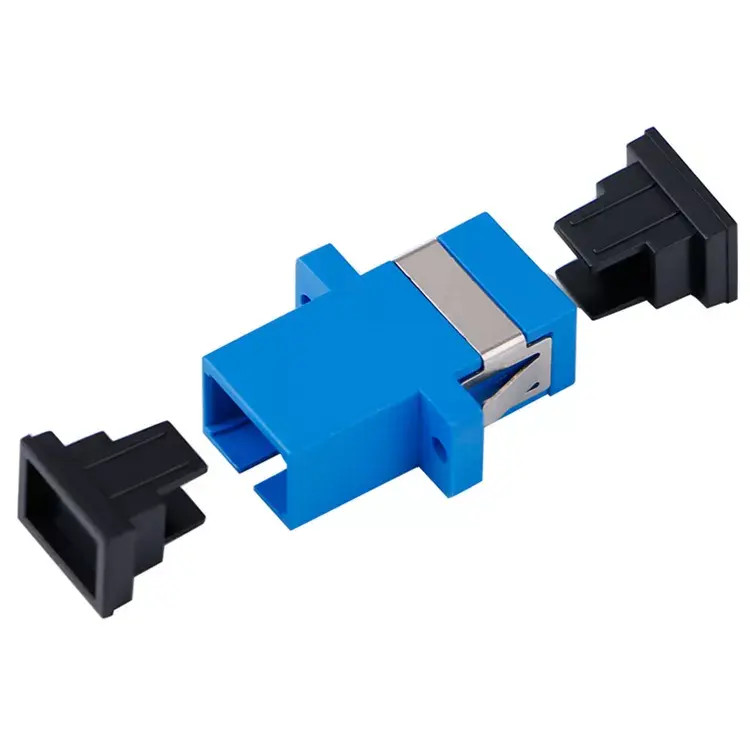

SC UPC Fiber Optic Adapters Suitable for FTTH Simplex Optical Networks Offering Easy Installation and Secure Connections
Product Details
| Product Name: | SC-SC/UPC PC Simplex SM Fiber Optic Adapter | Type: | Fiber Opitc Adapter, PC/UPC/APC,SM/MM |
|---|---|---|---|
| Model Number: | Sc Sm Adapter | Application: | FTTH FTTB FTTX Network |
| Return Loss: | ≥50db | Material: | ABS |
| Insertion Loss: | ≤0.3db | Color: | Blue |
| Fiber Count: | Simplex | Fiber Opitc Adapter, PC/UPC/APC,SM/MM: | 1 Year |
| Highlight |
SC UPC Fiber Optical Adapter,FTTB Fiber Optical Adapter,FTTH Simplex Fiber Optic Adaptor |
||
Product Description
| Quantity(pieces) | 1 - 100 | 101 - 1001 | 1002 - 3000 | >3000 |
|---|---|---|---|---|
| Lead time (days) | 7 | 10 | 15 | To be negotiated |
- CATV System
- Telecommunications
- Optical Network
- Testing / Measurement Instruments
- Fiber To the Home
- High size precision
- Good repeatability
- Good changeability
- Good temperature stabilization
- High wearable
| Parameter | Unit | LC, SC, FC, ST | |||
|---|---|---|---|---|---|
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °C | -40~75 | |||
| Storage Temperature | °C | -45~85 | |||
- Telecommunications,acccess network
- Optic fiber CATV LAN and Access Network
- Terminal of the devices multimedia
- Testing and hospital deveces
- Other industry and military applications
