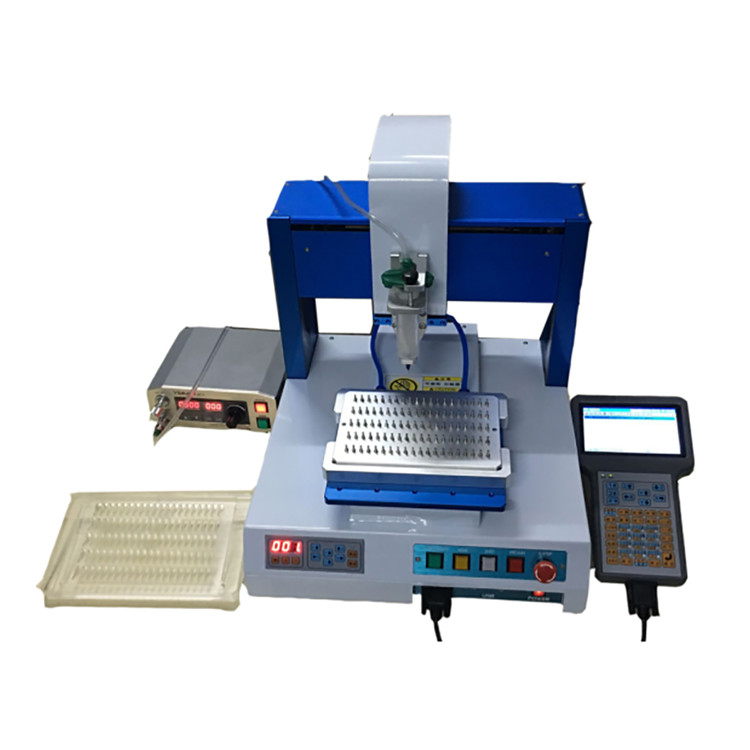

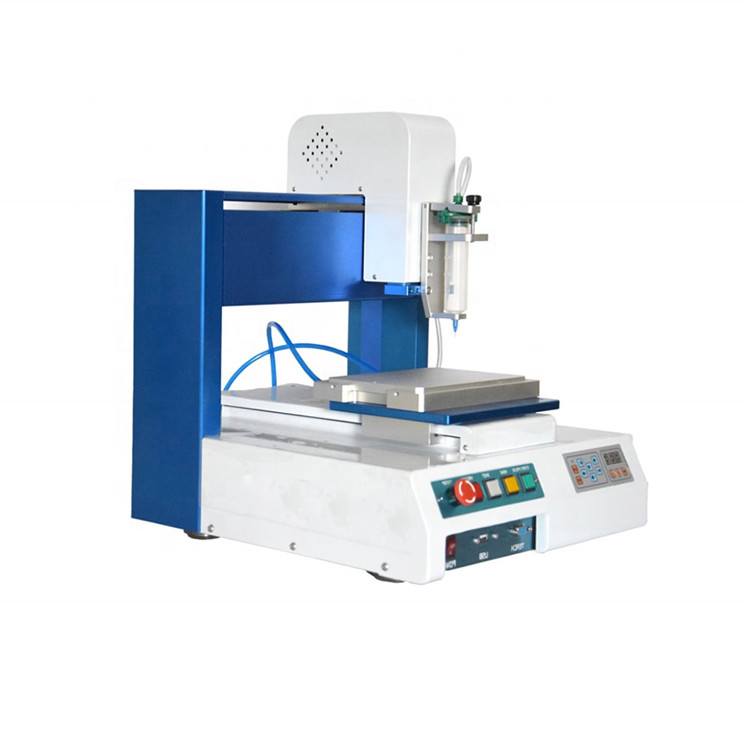

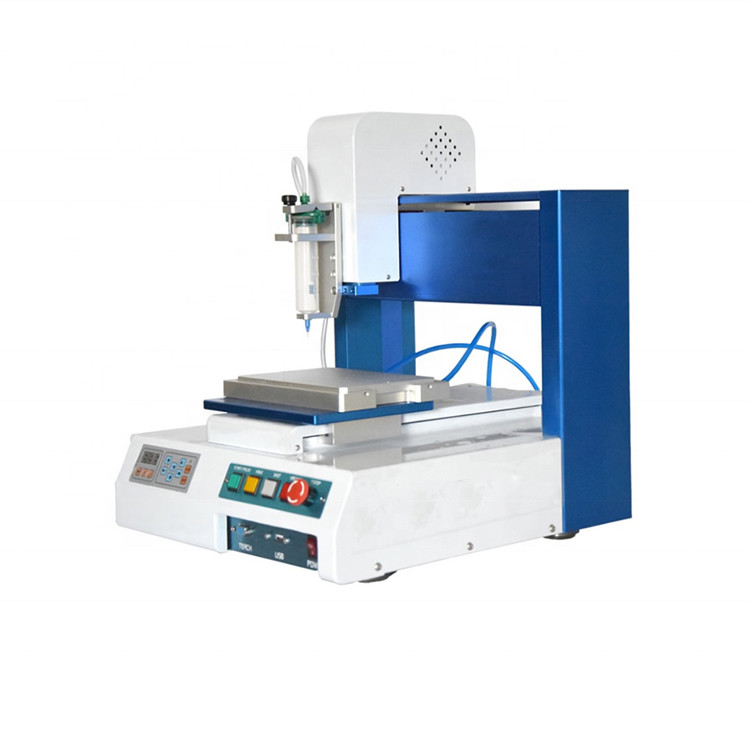

High efficiency glue dispensing machine fiber optic patch cord production machine for epoxy dispense
Model:CLX-DJ02
Place of Origin:ShenZhen,China
Description
Automatic Optical Fiber patch cord epoxy injection machine specially designed for mass fiber optic patch cord production. special designed 1.25mm and 2.5mm holding jig for precise epoxy injetion. save labor, high efficiency .
Quick Detail
● Special fiber optic ferrule dispensing disc, for inserting core fetching
● XYZ axis NC size precision, high density array dispensing support
● Stable glue exudation without glue leaking and dripping
● Hand-held programmer, programming more convenient
● Improve production efficiency, saving the material cost
Features
1. Stable glue exudation without glue leaking and dripping
2. Many kinds needles/syringes, dispensing valve and controller, to meet different requirements
3. Could set glue size, glue speed, dispensing time, stopping glue time.
4. High performance and cost-effective linear structure platform
5. High performance and cost-effective linear structure platform
6. High precision stepper motor control, trajectory precision dispensing
Specifications
| 1. Machine size | 400*310*440mm |
| 2. Adhesive compensation |
early plastic, glue, glue advance off switch delay, segmented wire drawing |
| 3. Use environment | temperature 0 ~ 40℃; humidity 20% ~ 90% |
| 4. Motor control shaft | three axis |
| 5. CAD graphics support |
supported by the software to provide DXF graphics and G code to import,support manual drawing |
| 6. Speed control |
three dimensional linear and circular interpolation, automatic speed up and down speed processing |
| 7. Powrer consumption | 100 ~ 240V AC |
| 8. Materials | cast iron and plastic |
| 9. Net weight | 18kg |
| 10. Load weight | workbench 6 Kgs; nose 2 Kgs |
Applications
1. Widely used in precision electronic components and optical fiber dispensing.
2. Applied to fluid dispensing, e.g.:UV glue, AB glue, EPOXY(black glue), Epoxy resin.
3. Uses air pressure within set time to push out liquid.
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5. How do we pay
......Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description.
