80rpm Patchcord Fiber Optic Cable Polishing Machine Double Motors

80rpm Patchcord Fiber Optic Cable Polishing Machine Double Motors
Features Gallery Product Description Request A Quote
Product Name: Fiber Optic Polishing Machine
Machine Size: 285*220*320mm
Electric Power: 120w
Warranty: 1 Years
Application: Fiber Optic Patchcords Making
Weight: 28 Kg
Type: Fiber Optic Equipment
High Light:

Fiber Optic Cable Polishing Machine


80rpm Fiber Optic Cable Polishing Machine


80rpm Patchcord Polishing Machine

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Model Number: CLX-02E
Payment & Shipping Terms
Packaging Details: Carton Packing:400*320*450mm
Delivery Time: 7-10 work day
Payment Terms: T/T
Supply Ability: 20 set /week
Product Description

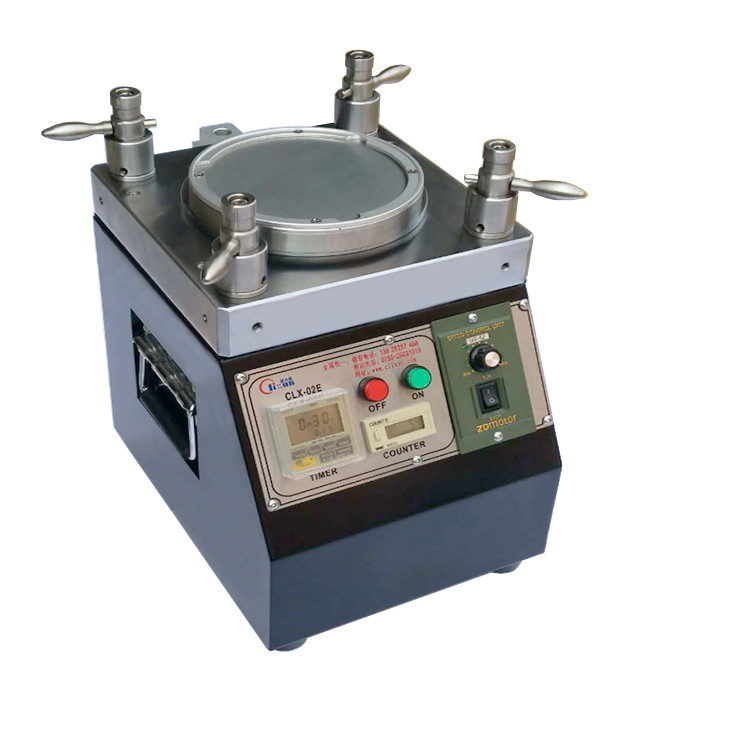

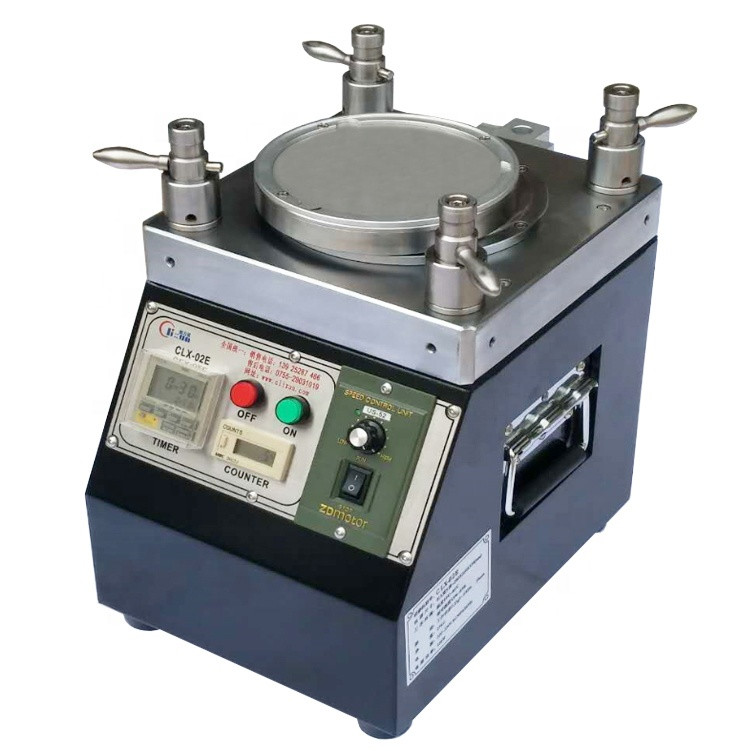

120w High Precision Fiber Optic Polishing Machine ClX-02E Patchcord Manufacturing Equipment



Place of Origin:ShenZhen,China



The unique DPC pressure technology offers a mass production platform incorporating highly stable, widely variable precision pressure control to the polishing Turntable. The pressure is applied from the bottom to the top. Moreover, CLX’s advanced micro machining design guarantees polishing with perfect parallelism between the polisher's turntable and the rigidly clamped polishing holder by the 4 corners.

Combining proprietary bottom-up pressurization, precision speed & pressure control and rigid fixture parallelism, the CLX-02E series – while in DPC mode - realize epoxy removal of multi-fiber ferrule done by the CLX-02E polisher and perform multi-fiber polishing similar in simplicity to standard single fiber connector polishing.

The CLX-02E polisher provides a wide range of benefits to the user:

1) Backwards compatible with the full range of CLX-02E series IPC polishing holders.

2) 2) Open overhead work space for creative cable handling solutions for multi-fiber, large O.D cables.


Quick Detail

● Designed for polishing high quality fiber optic patch cord.

● Double motors with sufficient power

● High accuraty Machinary size, minimal plane tolerance

● Excellent stability, five or ten years lifetime

● Super centering accuracy

● Excellent connector endface polishing quality

● Forφ2.5mm PC, APC/φ1.25mm PC, APC/MT, mini-MT, Fiber Array polish



1. Machine Size 285*220*320mm
2. O.D. of Rotation Plate 127 mm(5 inch)
3. Time Settings 99 min 99 sec (Max)
4. Speed for Rotation Plate 80 rpm
5. Height of Plate Jumpiness <10 um
6. Pressure Configuration 21 ~ 36 N/cm2
7. Work Temperature 10℃~40℃
8. Relative Humidity 15%~85%
9. Noice unloading Less 50 dB
10. Libration Working Status 0.25g 5~100Hz 10min
11. Stopping Status 0.50g 5~100Hz 10min
12. Power Input 220~230 VAC 50Hz/60Hz
13. Electric Power 120W
14. Net Weight 28kg
15. Materials stainless steel



1. ZrO2 Ceramic Ferrules

2. Quartz capillary

3. Glass materials

4. Stainless steel and titanium alloy

5. Colophony material



1. Are you a factory or a trader?

......we are factory.

2. What is your MOQ?

......MOQ 1 piece.

3. Do you provide sample services?

......Yes, we will provide samples(Samples at prices announced by chuanglixun).

4. How will you ship to me?

....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity

5. How do we pay

......Book in advance or multiple payment methods such as T / T and T / L.

6. How long is your product warranty?

......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7. Do you provide customized services?

......Yes, we provide customized services, According to customer requirements and description
