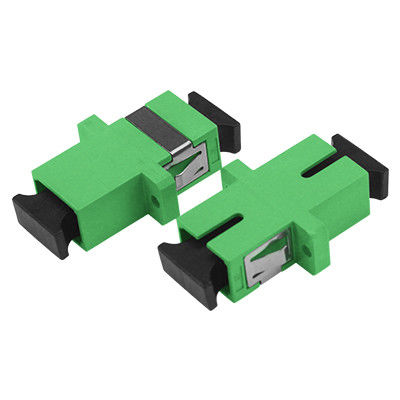

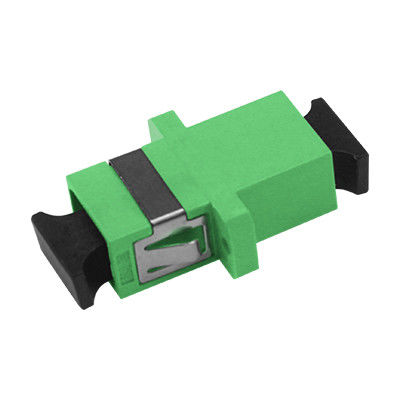

SC Type Flange Fiber Optic Adapters Simplex APC Low Insertion Loss
Product Details
| Product Name: | SC/APC Single Mode Fiber Optic Adapter | Color: | Green |
|---|---|---|---|
| Type: | Singlemode | Insertion Loss: | ≤ 0.2dB(SM&MM) |
| Application: | FTTH FTTB FTTX Network | Operating Temperature: | -40 To +80 Degree |
| Durability: | >1000time | Tensility Resist(g): | 200-600 |
| Highlight |
SC Flange Fiber Optic Adapters,APC Fiber Optic Adapters,Low Insertion Loss sc apc adapter |
||
Product Description
Optic flange adapter coupler SC type simplex APC fiber optic adapter
Model:SM-SX-SC/APC-SC/APC
Place of Origin:ShenZhen,China
Quick Detail:
● Accord with the standard of ANSL,Bellcore,TIA/EIA,IEC
● With high precise dimension
● Ceramic or bronze house
● Low insertion(<0.2dB),hign return loss(≥50dB)
● Changebility is more than one thousand,repeatibility is less than 0.2dB
Description
Fiber optic Adapter are used to calibrate two fiber optic connectors.The types of these adapter are FC(PC/APC),LC(simplex or duplex),ST,MU,MTRJ,E-2000 and so on.
Specifications
| Type | Insertion loss (db) | Tensility resist(g) | Inser and pulltimes | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
Applications
♦ Telecommunications,acccess network
♦ Optic fiber CATV LAN and Access Network
♦ Terminal of the devices multimedia
♦ Testing and hospital deveces
♦ Other industry and military applications
Product Highlights
Optic flange adapter coupler SC type simplex APC fiber optic adapter Model:SM-SX-SC/APC-SC/APC Place of Origin:ShenZhen,China Quick Detail: ● Accord with the standard of ANSL,Bellcore,TIA/EIA,IEC ● With high precise dimension ● Ceramic or bronze house ● Low insertion(
