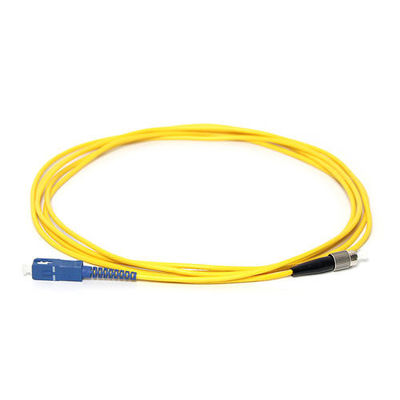

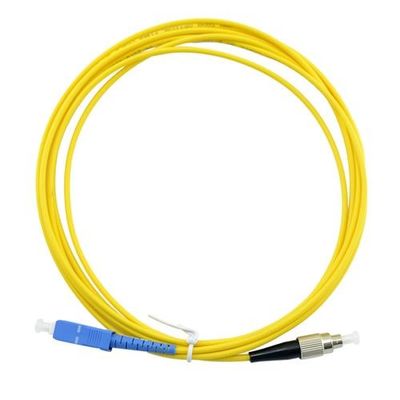

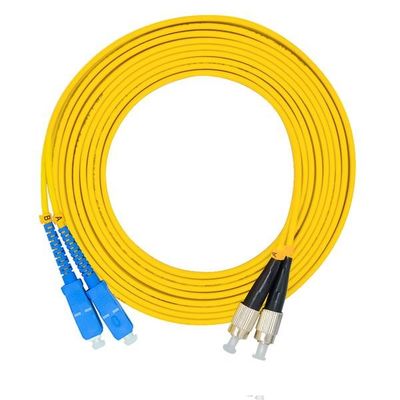

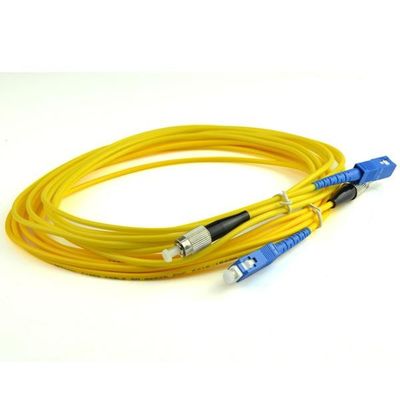

SC-FC Optical Fiber Patch Cord
Model Number:SC-FC Patch Cable
Place of Origin:ShenZhen,China
Quick Details:
Place of Origin:China
Brand Name:CLX
Mode:Single Mode
Connector Type: SC-FC
Ferrule end face:PC/UPC/APC
Fiber counts:Simplex/Duplex
Jacket:PVC/LSZH
Cable length:1/1.5/3/5/10/20m or customized
Quality Standard:Telcordia's GR-326-Core or IEC
Flammability Grade:OFN/OFNR/OFNP
Certification:ISO9001/14001/OHSAS18001/TLC
Company Type:Factory
Description:
The SC connector is becoming increasingly popular in single mode fiber optic telecom and analog CATV, field deployed links. The high precision, ceramic ferrule construction is optimal for aligning singlemode optical fibers. The connectors’ outer square profile combined with its push pull coupling mechanism, allow for greater connector packaging density in instruments and patch panels. The keyed outer body prevents rotational sensitivity and fiber endface damage. Multimode versions of this connector are also available. The typical insertion loss of the SC connector is around 0.3 dB.
| Performance | unit | FC, SC, LC | ST, MU | |||
| SM | MM | SM | MM | |||
| PC/UPC | APC | PC | PC/UPC | PC | ||
| Fiber Type | G652D,G657A | 50/125,65.2/125 | G652D,G657A | 50/125,65.2/125 | ||
| Insertion loss | dB | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 |
| Return loss | dB | ≥ 50 | ≥ 60 | ≥ 30 | ≥ 50 | ≥ 30 |
| Wavelength | nm | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | 1300(OM1)850 | |
| Interchangeability | dB | ≤ 0.2 | ≤ 0.2 | |||
| operating temperature | ℃ | -40~75 | -40~75 | |||
| Storage temperature | ℃ | -45~85 | -45~85 | |||
