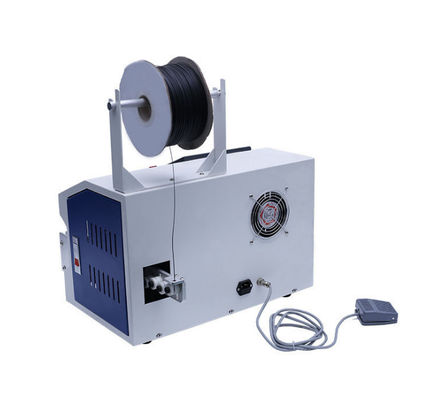

50-150MM Optical Fiber Cable Binding Machine Semi Automatic Coiling Equipment AC220V
Product Details
| Power Supply: | AC220V | Power Frequency: | 50HZ/60HZ |
|---|---|---|---|
| Rated Power: | 80 W | Total Weight: | 12 Kg |
| Winding Size: | 50-150MM | Winding Speed: | 1-30 Gears |
| Highlight |
AC220V Automatic Fiber Cable Binding Machine,50MM Fiber Cable Binding Machine,150MM Fiber cable coiling equipment |
||
Product Description
Semi automatic wire cable winder binding machine/cable coiling machine/ cable winding and tie machine
Model:CLX-30A
Place of Origin:ShenZhen,China
Product description:
This equipment is suitable for optical fiber connectors, optical fiber jumpers, AC power cords, DC power cords, USB data cables, earphone cables, RCA cables, video cables, HDMI high-definition cables and other transmission lines that are twisted into bundles with rubber cores. It can also be used for tapes and other applications that require rubber-coated iron core sealing. This machine can reduce the fatigue strength of employees, improve work efficiency, and save cable ties. Employees only need to put the wire on the winding port to automatically wind the wire, and then put the wound wire at the wire binding port, and the machine can automatically tie the tape. This machine can be used to set the cable length, the number of turns, the number of coils, and the speed of the winding, as well as the output count. This machine adopts PLC program control, text display for parameter setting, and the operation is simple and convenient.
Specifications:
| Power supply voltage | AC220V | |
| Power frequency | 50HZ/60HZ | |
| Rated power | 80W | |
| Winding size | can be adjusted (50-150MM) | |
| Winding speed | can be set by yourself (1-30 gears) | |
| Number of windings | can be set by yourself (1-999 turns) | |
| Machine model | cable tie length | maximum diameter range |
| JIASU-30A new style | 60-140 | Φ05-40mm |
| JIASU-40A new style | 150-260 | Φ30-70mm |
| JIASU-25A | 75-130 | Φ05-25mm |
| JIASU-35A | 120-200 | Φ05-40mm |
| Number of coils | can be set by yourself (recommended 2-6 turns) | |
| Thread tie speed | can be set by yourself (1-3 gears (recommendation 2) | |
| Recommended PE material for cable tie | coated iron core | |
| Protection device | fuse, fault alarm shutdown | |
| Dimensions (L*W*H) | 350x250x220mm | |
| Total weight | 12Kg | |
FAQ
1.Are you a factory or a trader?
......we are factory.
2.What is your MOQ?
......MOQ 1 piece.
3.Do you provide sample services?
......Yes, we will provide samples(Samples at prices announced by chuanglixun).
4.How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5.How do we pay
......Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description
