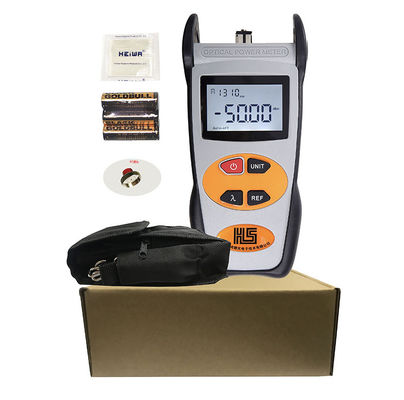

Mini Opm Fiber Optic Cable Tools Fiber Optic Light Meter 1310/1490/1550/1625Nm
Product Details
| Product Name: | Optical Fiber Power Meter | Type: | Testers &Tools |
|---|---|---|---|
| Wavelength(nm): | 800~1700nm | Measurement Range: | 70~+6 DB -50~+26 DB |
| Detector: | InGaAs | Relative Humidity: | 0 To 95% (non-condensing) |
| Uncertainty: | ±5% | Weight: | 0.285g |
| Highlight |
Mini Opm Fiber Optic Cable Tools,1550 1625Nm Fiber Optic Cable Tools,Mini Opm Fiber Optic Light Meter |
||
Product Description
1310 1490 1550 1625 Nm Handheld Mini Opm Ftth Fibre Cable Testing Tools Price Power Meter Optical Fiber Optic Meter
Description
This optical power meter series is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It has features of ingenious appearance, wide range of power measurement, high accuracy with high performance-to-price ratio.
Features
Comfortable LCD display and optional backlight LCD display supports
night operation;
Power measurements in dBm or mw and insertion loss in dB;
Reference power level storage(Ref Setting)
Low battery consumption, more than 240 hours continual operation time with three 1.5V alkaline batteries;
10 minutes Auto-off function can be activated or deactivated.
Applications
Maintenance in Telecom
Maintenance in CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Specifications
| Type | HS 1001-A | HS1001-C |
| Wavelength(nm) | 800~1700nm | |
| Detector | InGaAs | |
| Measurement Range (dBm) | -70~+6 | -50~+26 |
| Uncertainty | ±5% | |
| Calibrated Wavelength(nm) | 850,,1300,1310,1490,1550,1625 | |
| Resolution(dB) | 0.01 | |
| Optical Connector | FC(interchangeable SC,ST) / as well as 2.5mm universal | |
| Power Supply | Alkaline Battery(3 AA 1.5V batteries) | |
| Battery Operating Time | 240 h with 1.5V Battery(3) | |
| Operating Temperature(℃) | -10 ~ +60 | |
| Storage Temperature(℃) | -25 ~ +70 | |
| Relative Humidity | 0 to 95% (non-condensing) | |
| Dimension(mm) | 200 X90 X50 | |
| Weight(g) | 285 | |
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
- We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description
About shipping:
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity.
