FC/LC/SC/ST Connector SM DM OTDR Launch Cable Box , 500m 1km Fiber Optic Launch Box
Product Details
| Warranty Time: | 1 Years | Dimension: | 9.37" X 5.56" X 2.62" (238x141x66mm) |
|---|---|---|---|
| Operating Temperature: | -40° To +55°C | Weight: | 0.75 Kg (without Fiber) |
| Typical Loss: | < 0.5dB @ 1310nM For 1000 Meters | Application: | FTTH FTTB FTTX Network |
| Highlight |
SM DM OTDR Launch Cable Box,ST Connector OTDR Launch Cable Box,1km Fiber Optic Launch Box |
||
Product Description
Ftth FC/LC/SC/ST Connector SM DM OTDR Launch Cable Box 500m 1KM OTDR Launch Cable
Model:OTDR Launch Cable
Place of Origin:Guangdong,China
Description

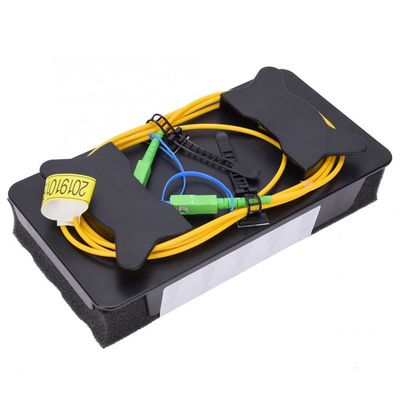

Fiber Ring OTDR launch cable connects the OTDR to the link-under-test and relays insertion loss and reflectance of the near-end connection. This help to avoid variations in loss and distance measurements when testing. The launch fiber cable helps to negate blind spots or the Dead Zones of an OTDR which occures when there is high launch power or faults near the launch end of the fiber.
CLX offers OTDR launch cable with 500m,1000m,2000m or customized length as per customers requirements. Check the product below to what you are looking for.
Quick Detail:
Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration

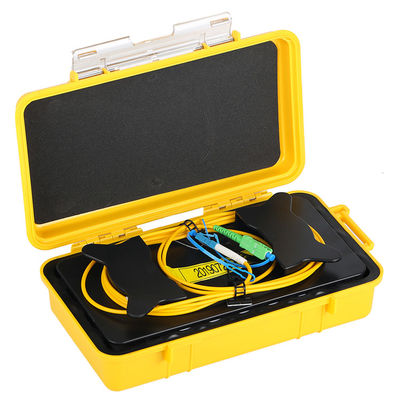

Compound Latch for positive seal and easy opening with locking feature
Non¬metal construction will not dent, corrode, or conduce electricity
Water and dust prove allowing the unit to be taken into almost any environment
Case can house up to 2,000 meters of fiber
Auto Purge Valve for changes in altitude and temperature
Specifications:
| Product name | OTDR Launch Fiber Cable Box |
| Dimensions | 24cm*14cm*6.6cm |
| Material | SR Polypropylene |
| Weight | 0.75kg |
| Operating temperature | -40° to +55°C |
| Typical Loss | < 0.5dB @ 1310nM for 1000 meters |
Order Information
| Part No. | Description |
| OTDR-BOX-SM05 |
OTDR Launch Cable Box, SM G652D, 500M, Connector: FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
| OTDR-BOX-SM10 |
OTDR Launch Cable Box, SM G652D, 1KM, Connector: FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
| OTDR-BOX-SM20 |
OTDR Launch Cable Box, SM G652D, 2KM, Connector: FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
| OTDR-BOX-MM05 |
OTDR Launch Cable Box, MM (62.5/125um or 50/125um), 500M, Connector: FC/PC, SC/PC, ST/PC, LC/PC optional |
| OTDR-BOX-MM10 |
OTDR Launch Cable Box, MM (62.5/125um or 50/125um), 1KM, Connector: FC/PC, SC/PC, ST/PC, LC/PC optional |
| OTDR-BOX-MM20 |
OTDR Launch Cable Box, MM (62.5/125um or 50/125um), 2KM, Connector: FC/PC, SC/PC, ST/PC, LC/PC optional |
| OTDR-BOX-SM705 |
OTDR Launch Cable Box, SM G657A, 500M, Connector: FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
| OTDR-BOX-SM710 |
OTDR Launch Cable Box, SM G657A, 1KM, Connector: FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
| OTDR-BOX-SM720 |
OTDR Launch Cable Box, SM G657A, 2KM, Connector: FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
| OTDR-BOX-OM305 |
OTDR Launch Cable Box, OM3, 500M, Connector: FC/PC, SC/PC, ST/PC, LC/PC optional |
| OTDR-BOX-OM310 |
OTDR Launch Cable Box, OM3, 1KM, Connector: FC/PC, SC/PC, ST/PC, LC/PC optional |
| OTDR-BOX-OM320 |
OTDR Launch Cable Box, OM3, 2KM, Connector: FC/PC, SC/PC, ST/PC, LC/PC optional |
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
- We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
