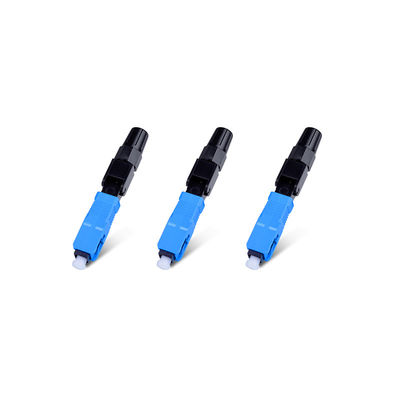

125um Plastic Fiber Optic Cable Connectors , Pre Embedded SC/UPC Optical Fast Connector
Product Details
| Product Name: | Fiber Optic SC UPC Fast Connector | Color: | Blue |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Return Loss: | ≥50dB |
| Insertion Loss: | ≤ 0.3dB | Tensile Strength: | ≥40N |
| Applicable Cable 2.0*3.0mm Drop Cable Fiber Diameter 125um Coating Diameter 250um Fiber Mode Single : | ≤20s | Lifespan: | 10 Years |
| Highlight |
125um Plastic Fiber Optic Cable Connectors,SC UPC Optical Fast Connector,Pre Embedded Optical Fast Connector |
||
Product Description

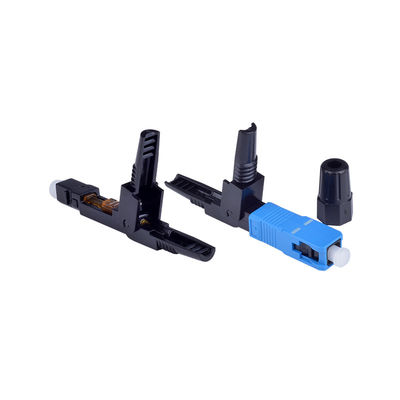

SC Pre-embedded Fiber Type Field Assembly Optical Connector
Description
It is easy, fast and reliable for engineers to terminate optical fibers in field by using Field Assembly Optical Connector, without epoxy, polishing, curing, or splicing.
Field assembly optical connector plays an irreplaceable role in FTTH access network. It can achieve similar excellent transmission parameters as standard polishing and splicing technology. It can greatly reduce the assembly time.
The pre-embedded fiber in the ferrule of pre-embedded fiber type field assembly optical connector has already been pre-polished at the patchcord workshop. Just strip, cleave and clean the fiber and then insert the fixed-length fiber and connect with the pre-embedded fiber by index-matching gel.
Installation Charm:
For pre-embedded fiber type field assembly optical connector, the fiber connects with the pre-embedded fiber by index-matching gel.
Features
Low insertion loss and high return loss
High reliability, and save maintenance cost
Pre-embedded fiber is polished in high quality
Can be reusable with easy disassembly and assembly
Can work stably in harsh environment, like severe coldness and dust, high temperature, high humidity, etc
Few special installation tools required, installation is simple and fast, with less than 20 seconds averagely; low technical requirements for the operators
Applications
Telecommunication networks
FTTX, FTTH (Fiber to the Home)
Fiber testing and testing equipment
FTTH Drop Cable, 86 socket outlet, and ONU
Specifications:
| Applicable Cable | 2.0*3.0mm drop cable | |
| Fiber Diameter | 125um | |
| Coating Diameter | 250um | |
| Fiber Mode | single mode or multi-mode | |
| Insertion Loss | ≤0.3dB (max. 0.5dB) | |
| Return Loss | PC≥45dB; APC≥55dB | |
| Dimension | 60mm | |
| Lifespan | 10 years | |
| Installation Time | ≤20s | |
| Tensile Strength | ≥40N | |
|
EndFace Geometric Performance (3D)
|
Radius of Curvature | PC: 10~25mm; APC: 5~15mm |
| Apex Offset | ≤50um | |
| Fiber Height | PC: -100~+50mm; APC: -100~+100mm | |
|
Material
|
Flame Retardancy | compliant |
| RoHS Compliant | compliant | |
|
Mechanical Performance
|
Assembly Repeatability | ≥10 times |
| Drop (1.5m height) | ≥10 times | |
| Durability | ≥500 times | |
|
Working Environment
|
Relative Humidity | ≤95% (@±30°C) |
| Atmospheric Pressure | 60kpa~160kpa | |
| Operating Temperature | -40°C~+85°C | |
| Storage Temperature | -40°C~+85°C | |
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
- We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
