Blue SC UPC Field Installable Fiber Optic Fast Connectors For WAN LAN
Product Details
| Product Name: | Fiber Optic SC APC Fast Connector | Color: | Blue |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Return Loss: | ≥50dB |
| Insertion Loss: | ≤ 0.3dB | ||
| Highlight |
Field Installable Fiber Connector,LAN Fiber Optic Fast Connectors,blue WAN Fiber Optic Fast Connectors |
||
Product Description

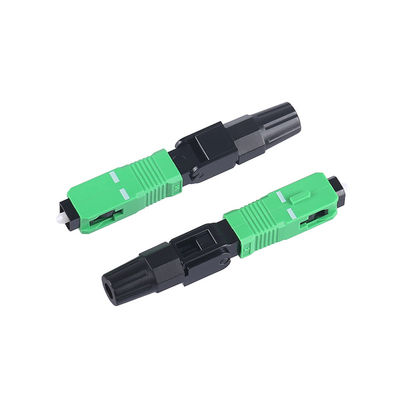

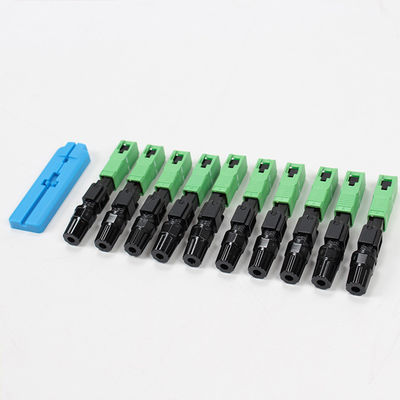

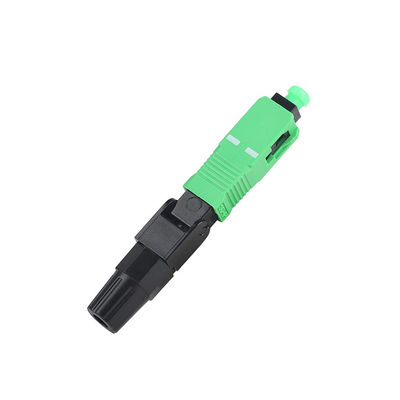

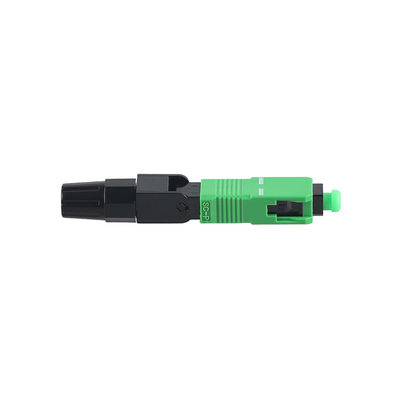

Fiber Optic Fast Connector Sc Apc Singlemode Quick Connector
Production Description:

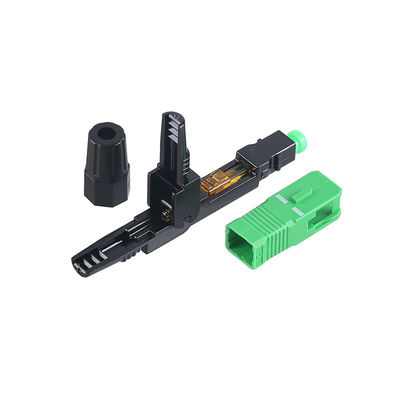

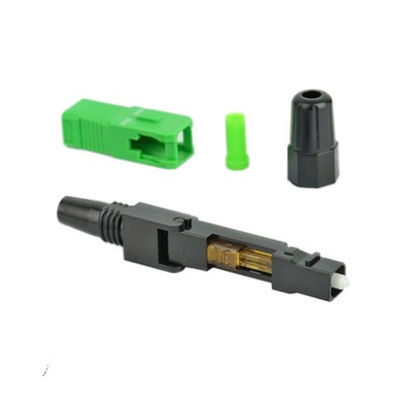

Mechanical connectors make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Our connector can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.
Quick Detail:
● Single fiber, SC/LC/ST/FC-based connector
● Easy to operate. No special tools needed when installed
● Design of double layer structure, the upper layer is the optical splitter wiring layer, the lower layer is the fiber fusion layer
● Operating temperature: -40° to 85°C
● Cable Diameter Range: 2.0mm, 3.0mm, 2.0*3.0mm
● No need of epoxy
● No need of polishing (for PC )
Specification
| Single mode(UPC) | Single mode(APC) | Mult mode | |
| Insertion loss | ≤ 0.2db | ≤ 0.2db | ≤ 0.25db |
| Return loss | ≥45db | ≥55db | ≥30db |
| Durability | ≤ 0.2db typical change, 1000 times mating | ||
| Pull | >0.3kg | ||
| Operating Temperature | -45 to +85 degree |
||
|
Ferrule Hole Sizes |
125.0+1/-0um, Concertricity:≤1.0um |
125.0+1/-0um, Concertricity:≤0.5um |
127.0um, Concertricity: ≤3.0um |
| 125.5+1/-0um, Concertricity:≤1.0um |
125.5+1/-0um, Concertricity:≤0.5um |
127.0um, Concertricity: ≤3.0um |
|
| 126.0+1/-0um, Concertricity:≤1.0um |
126.0+1/-0um, Concertricity:≤0.5um |
127.0um, Concertricity: ≤3.0um |
|
Application
1. CATV & FTTH
2. Local area networks (LAN)
3. Wide area networks (WAN)
4. Premise installations5.Data processing networks
6. Video and military active device termination
7. Optical Distribution Frame
8. Optical Network Equipments
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
- We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
