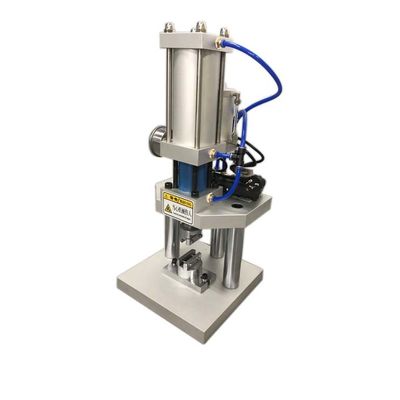

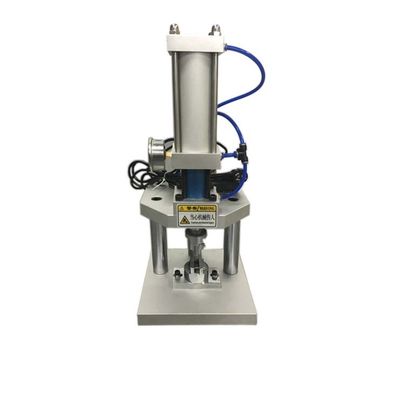

1 TON Manual Fiber Crimping Machine Rust Proof 0.6~0.9Mpa For Cable Lug
Product Details
| Type: | Fiber Optic Production Machine | Warranty Time: | 1 Year |
|---|---|---|---|
| Dimension: | L31(cm)*W39(cm)* H65(cm) | Net Weight: | 1000 Kgf |
| Applicable Pressure: | Range: 0.6~0.9 Mpa | Use: | Fiber Connector Crimping Machine |
| Highlight |
1 TON Fiber Crimping Machine,1 TON Fiber Cable Lug Crimping Machine,0.9Mpa Manual Fiber Crimping Machine |
||
Product Description
1 TON Manual Fiber Optic Connector Crimping Machine fiber optical produce line cable lug crimping machine
Model:CLX-Y1T
Place of Origin:ShenZhen,China
Product description:
1. CLX-Y1T Crimping machine is used for assembling fiber optic connectors / ceramic ferrules and fiber optic adapters.
2. Pressure force is more than 1 ton or 2 tons with different cylinders, and it is available for different kinds of fiber optic connectors(Such as FC, ST, SC, MU, LC, E2000, LX.5 and so on).
3. This type of machine is always used for crimping FTTH waterproof connectors.
Feature
1. One-time crimping: ceramic lock pin and metal tail pipe can be crimped at one time, faster and more convenient
2. Different types of fiber ports are suitable for different types of fiber optic connector assembly and crimping
3. The product is made through multiple special processes, which is wear-resistant, rust-proof, and not easily deformed
4. Simple and reliable operation, high processing efficiency
5. Can provide customized crimp adapter teeth according to customer needs.
Specification
| Dimension (mm) | L 31(cm) × W 39(cm) × H 65(cm) |
| Net Weight (kg) | 22 kg |
| Compressed Air Source | 0.6 ~ 0.9 Mpa |
| Input Voltage | 220VAC, 50/60Hz |
| Connector Type | 1.25 mm / 2.50 mm ferrule, FC/ST/SC/MU/LC |
| Capacity | Crimping SC FC ST LC connector ring and eyelets. Crimping outdoor FTTH waterproof connector parts. |
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
