0.5-1.6m/S Fiber Patch Cord Manufacturing Machine Cable Cutting Machine CAT6 50HZ
Product Details
| Operation System: | Chinese And English Screen | Power Input: | 220v,50HZ |
|---|---|---|---|
| Weight: | 327kgs | Cable Type: | Jacket Fiber, Ribbon Fiber, UTP, CAT6 |
| Warranty Time: | 1 Year | Application: | Copper Wire Cable Cutting And Aligning, Submarine/Underwater |
| Highlight |
1.6m/S Fiber Patch Cord Manufacturing Machine,50HZ CAT6 Patch Cord Manufacturing Machine,0.5m/S Fiber Cable Cutting Machine |
||
Product Description

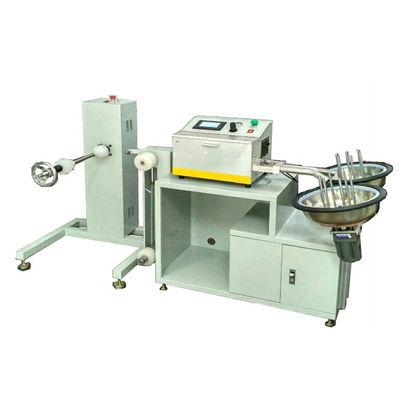

Automatic Heavy Duty Copper Wire Fibre Optics Optical Cables Fiber Cable Cutting Machine
Model:CLX-95
Place of Origin:ShenZhen,China
Product description:
CLX-95 cable cutting machine is a type of multi function machine. It is designed for optical cable, CAT6 and UTP cable cutting. Its cable diameter range is 1.0 mm to 6.0 mm.
Feature
Applied for manufacturing fiber optic patch cord.
Professional equipment with measuring length / cutting and winding functions.
Cut different indoor optical fibers into required length and wind cable into circularity.
CSM, CRM and Main machine communications control cutting and aligning cable accurately.
Cable Cutting length tolerance is limited in 0.3%.
Cable receiving machine could divide cable drum into small cable ring and shorter cable drums.
Customize cable length on control system.
Friendly touch screen interface, compact window.
Customized language: Chinese / English / Korea or other.
Easy to handle and Low noise.
Specification
| Description | Capacity |
| Operation System | Chinese & English, Touch Screen |
| Cutting Length | 1 to 2000 mtrs |
| Cable Diameter | Φ1.00mm to Φ9.00mm(max) |
| Cable Type | Jacket fiber, Ribbon Fiber, UTP, CAT6 |
| Running Speed (m/s) | 0.5 - 1.6 meters per second |
| Length Accuracy | no more than 3% |
| Power Consumption | 2200Watt, 220V AC, 50/60Hz |
| Pressure Source | 0.4 to 0.6Mpa |
| Load Weight | CSM: 75 kgs, CRM:45 kgs |
| Cable Drum OD | Φ500 mm (max) |
| Cable Drum ID | 50 ~ 80 mm |
| Cable Collection Bowl Size | Φ180*110 mm |
| Assembled Machine Size | 300cm * 73cm * 125cm |
| Net & Gross Weight | 285 kgs / 330 kgs |
Remark: If you have special requirement, please feel free to contact us.
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
