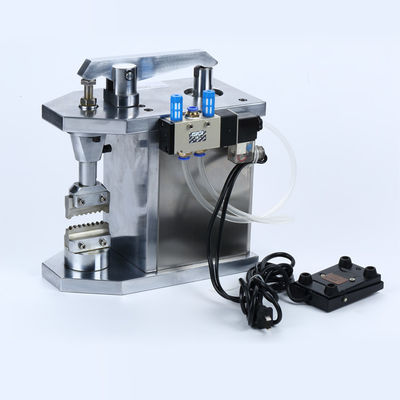

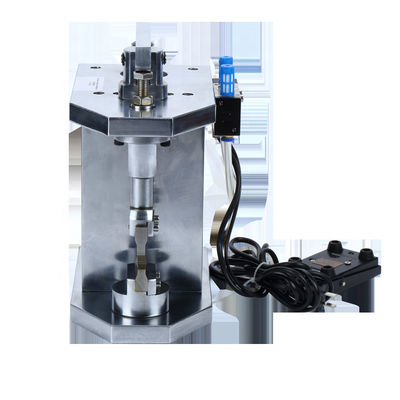

50/60Hz Fiber Patch Cord Manufacturing Machine Ceramic Ferrule Pneumatic Terminal Crimper
Product Details
| Type: | Fiber Optic Production Machine | Air Pressure: | 0.6-0.9Mpa |
|---|---|---|---|
| Weight: | 25KG | Mechanical Pressure: | 600-800KG |
| Die Type: | Can Customized | Attention: | Need To Cooperate With Air Pressure |
| Highlight |
60Hz Fiber Patch Cord Manufacturing Machine,Ceramic Ferrule Pneumatic Terminal Crimper,Ceramic Ferrule Fiber Patch Cord Manufacturing Machine |
||
Product Description
Horizontal Crimping Machine Vertical Pneumatic Crimping Machine used for fiber optic connector assembly
Model:CLX-Y300
Place of Origin:ShenZhen,China
Product description
CLX-Y300 Crimping machine is used for assembling fiber optic connectors / ceramic ferrules and fiber optic adapters.
Pressure of the machin is adjustable, and it is available for different kinds of fiber optic connectors (Such as FC, ST, SC, MU, LC, E2000, LX.5 and so on). Easy to handle, High quality and High efficiency.
Feature
1. For the connector assembly and the ceramic ferrule and metal tail stock assembly of other products crimp
2. Use air pressure is not less than 0.6 ~ 0.9 Mpa, the maximum pressure for 1000 kgf
3. By replacing the crimp tooling, can adapt to different parts assembly and the crimping.
4. Pressure can be adjusted to adapt to different products.
5. Simple, reliable, high processing efficiency
6. Stable quality.
7. Maintenance, simple and convenient.
8. Provide the connector crimping dies, adapters and metal tailstock pressure dies.
9. According to customer needs, custom-made different crimping tooling.
Specification
| Dimension (mm) | L 31(cm) × W 39(cm) × H 65(cm) |
| Net Weight (kg) | 22 kg |
| Compressed Air Source | 0.4 ~ 0.9 Mpa |
| Input Voltage | 220VAC, 50/60Hz |
| Connector Type | 1.25 mm / 2.50 mm ferrule, FC/ST/SC/MU/LC |
| Capacity | Crimping SC FC ST LC connector ring and eyelets. Crimping outdoor FTTH waterproof connector parts. |
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5.How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
