Polish Marble Rubber Glass Polishing Pad , Smooth Fiber Optic Polishing Film
Product Details
| Product Name: | Fiber Optic Polishing Pads | Diameter: | 127mm |
|---|---|---|---|
| Weight: | 0.3kg/pack | Number Of Packages: | 3 Pcs/pack |
| Thickness: | 4.80mm | Warranty: | 1 Year |
| Type: | Fiber Optic Polishing Tools | Operating Temperature: | -20℃ -- +60℃ |
| Highlight |
Polish Marble Rubber Glass Polishing Pad,Smooth Fiber Optic Polishing Film,Smooth Rubber Glass Polishing Pad |
||
Product Description

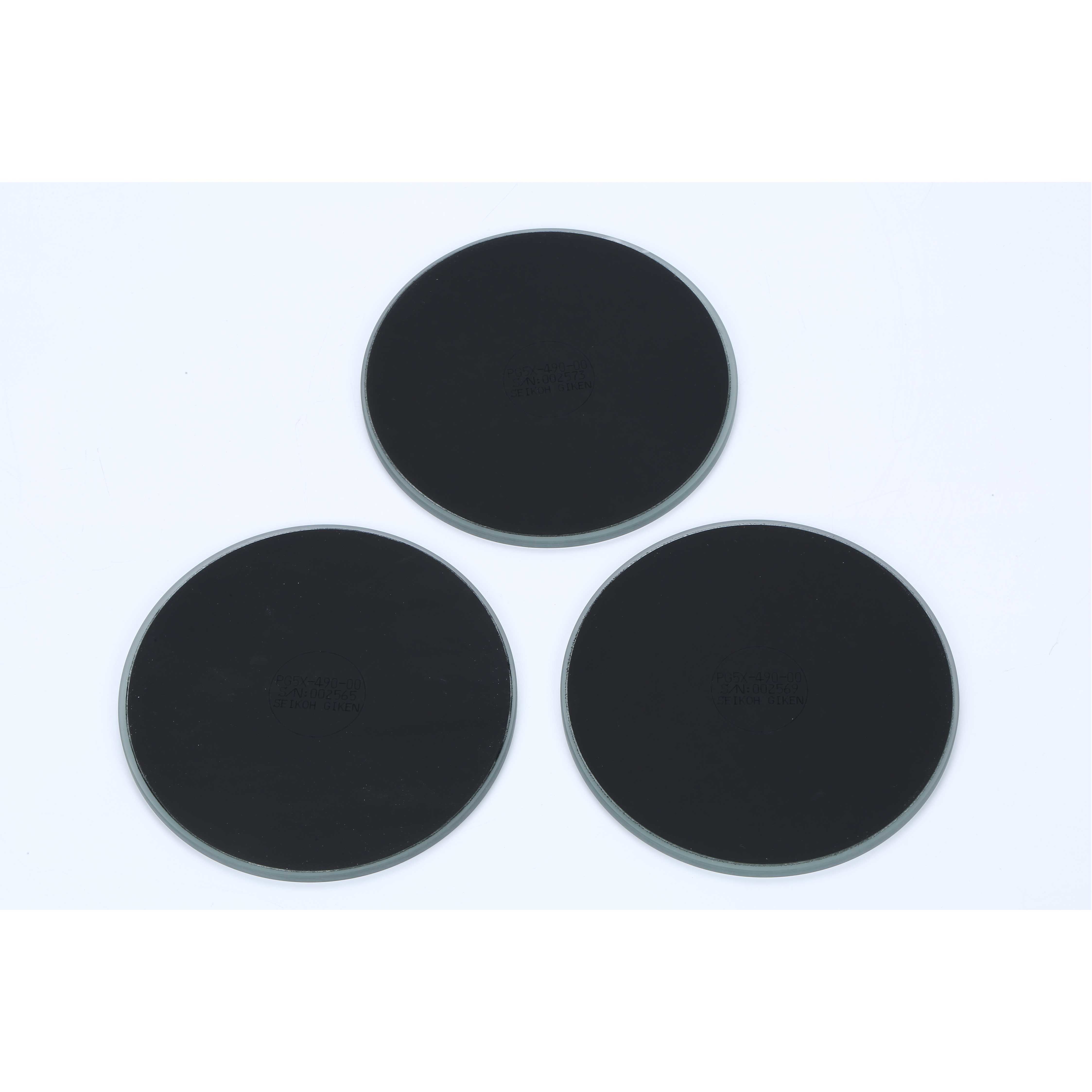

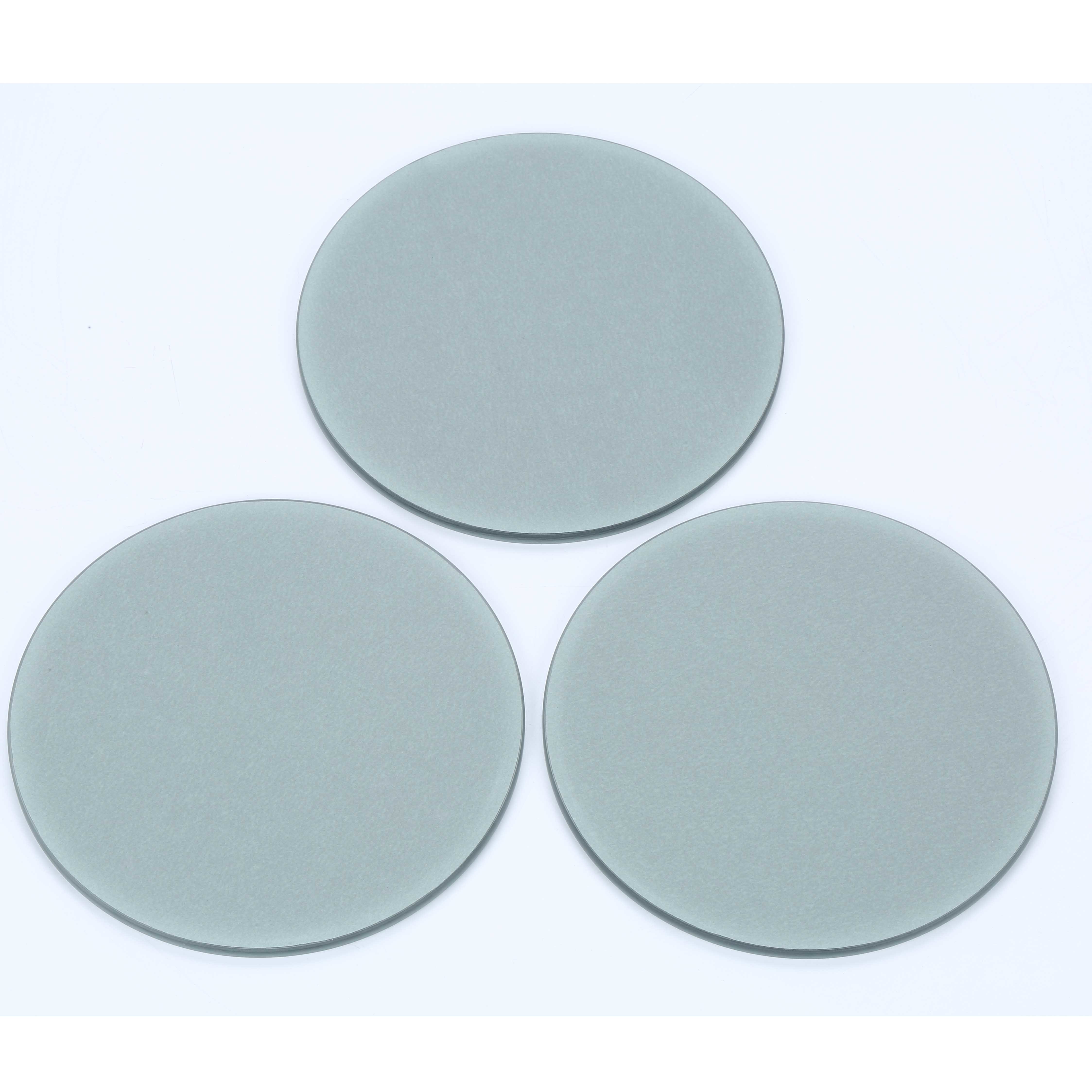

PG5X 480 00 MPO MTP MT seikoh giken polish marble glass rubber polishing pad
Model:PG5X-480-00
Place of Origin:Japan
Product description:
Seikoh Giken offesr wide varieties of polishing pad to respond with wide range of customer needs. Characterisctics of our pad is thickness cleanrace. Thickness is tightlly controlled.
Feature
1. It is suitable for polishing optical fiber connectors, including ceramic ferrules, MTP, MTO and other non-standard connectors.
2. Widely used in four-corner pressure grinder and Seiko SFP-550 series grinder.
3. There are many different degrees and thicknesses for customers to choose
4. The surface of the rubber pad is flat and smooth, and the flatness is 2-5UM
5. The special surface is helpful for the attachment of abrasive sandpaper and is resistant to abrasion
6. Helps to improve the fiber end-face yield and 3D yield
Specification
| Part Number | Size Diameter | Thickness | Material | Hardness(Shore Hardness) | Packing |
| PG5X-480-00 | 127mm | 4.8mm | Glass | 3pcs/set | |
| PG5X-490-00 | 127mm | 4.9mm | Glass | 3pcs/set | |
| PG5X-500-00 | 127mm | 5.0mm | Glass | 3pcs/set | |
| PR5X-480-70 | 127mm | 4.8mm | Rubber | 70 Shore Hardness | 3pcs/set |
| PR5X-480-80 | 127mm | 4.8mm | Rubber | 80 Shore Hardness | 3pcs/set |
| PR5X-480-90 | 127mm | 4.8mm | Rubber | 90 Shore Hardness | 3pcs/set |
| PR5X-500-60 | 127mm | 5.0mm | Rubber | 60 Shore Hardness | 3pcs/set |
| PR5X-500-65 | 127mm | 5.0mm | Rubber | 65 Shore Hardness | 3pcs/set |
| PR5X-500-70 | 127mm | 5.0mm | Rubber | 70 Shore Hardness | 3pcs/set |
| PR5X-500-75 | 127mm | 5.0mm | Rubber | 75 Shore Hardness | 3pcs/set |
| PR5X-500-80 | 127mm | 5.0mm | Rubber | 80 Shore Hardness | 3pcs/set |
| PR5X-500-85 | 127mm | 5.0mm | Rubber | 85 Shore Hardness | 3pcs/set |
| Pr5x-500-90 | 127mm | 5.0mm | Rubber | 90 Shore Hardness | 3pcs/set |
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
Company Profile
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010. Is an optical communications equipment company integrating research and development, production, after-sales service and technical services. Our main R & D and production: automatic fiber optic cable cutting machine, automatic epoxy glue injection machine, optical fiber connector polishing machine, optical fiber connector polishing fixture, optical fiber connector epoxy curing furnace, assembled pneumatic crimping machine, fiber end surface inspection Equipment, fiber connector insertion loss and return loss testers, as well as various fiber connector production equipment and all consumables and tools. We not only sell high-quality products and provide good after-sales service, but also provide free technical support to our customers. For the technical problems encountered in the production of optical fiber connectors, there are good solutions, I hope to help partners! Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. is willing to become a partner with you to reduce manufacturing costs and improve efficiency!
Product Highlights
PG5X 480 00 MPO MTP MT seikoh giken polish marble glass rubber polishing pad Model:PG5X-480-00 Place of Origin:Japan Product description: Seikoh Giken offesr wide varieties of polishing pad to respond with wide range of customer needs. Characterisctics of our pad is thickness cleanrace. Thickness is ...
Silicon Dioxide Fiber Optic Polishing Tools
Japan NTTAT ADS-127 Silicon Dioxide Final Polishing Film Model:ADS-127 Place of Origin:Japan Quick Detail ● Evenly-sprayed particles on coated surface ● Good intensity & flexility, suitable for polishing on different facets ● Suitable for polishing with dry, water or oil medium ● The fiber polishing film is durable polishing rate compared to existing polishing films and offers economical operations Description This product is a silica ADS polishing sheet developed by NTT,
Diamond Polishing Film For Lapping Optical Fiber Patch Cord Cable
Diamond Polishing Film Polishing Paper for Lapping Optical Fiber Patch Cord/Cable Fiber Optic Polishing Paper Features: 1. Uniform dispersion of abrasive particles. 2. Good strength and flexibility. 3. High polishing accuracy. 4. Stable product quality, small difference in batch nails 5. Suitable for polishing with dry, water or oil. Fiber Optic Polishing Film Application: 1. Cutting angle of fiber optic connector, rough grinding, medium grinding, fine grinding 2. Grinding
Blue Fiber Patch Cord Connectors
SC UPC Single-mode simplex 3.0mm fiber optic connector kits Model:SX-SM-SC-UPC-3.0mm Place of Origin:ShenZhen,China Specifications Parameter Unit FC,SC,LC ST,MU MT-RJ,MPO SM MM SM MM SM MM PC UPC APC PC PC UPC PC PC UPC PC Insertion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 Return loss dB ≥45 ≥50 ≥60 ≥30 ≥50 ≥50 ≥30 ≥45 ≥50 ≥35 Operating Wavelength nm 1310,1550 1310,1550 1310,1550 Exchangeability dB ≤0.2 ≤0.2 ≤0.2 Vibration dB ≤0.2 ≤0.2 ≤0.2 Operating
0.9MM Fiber Optic Pigtail Connector , SM MM LC Optical Connector Temperature Control
Optical fiber pigtail optic LC 0.9 connector parts OM4 OM3 SM MM LC 0.9 boot connectorModel:SX-MM-LC-0.9mmPlace of Origin:ShenZhen,ChinaDescriptionProduct NameOptical fiber pigtail optic LC 0.9 Connector PartsModel NumberLC 0.9 fiber optic connectorFiber TypeSM OM1 OM2 OM3 OM4Connector TypeLCInsertion Loss≤0.3dBReturn Loss≥50dBApplicationFTTX,CATV Metro,LANForm of saleOEM/ODMUsePatch cord,PLC splitter,PigtailCustom DesignWelcomeSample Lead Time1 daySample PriceAs per sample
