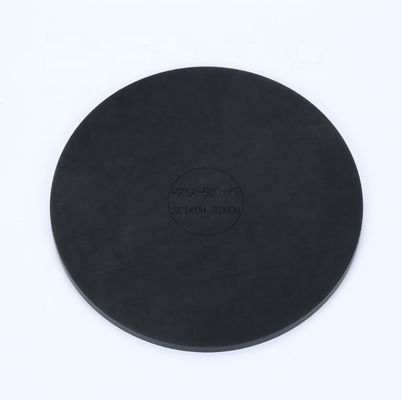

Silica Gel Fiber Optic Rubber Polishing Pad Tools Patch Cord Production Materials 127mm
Product Details
| Product Name: | Fiber Optic Polishing Pads | Thickness: | 5mm |
|---|---|---|---|
| Weight: | 0.3kg/pack | Rubber Hardness: | 60,65,70,75,80,85,90 |
| Number Of Packages: | 3 Pcs/pack | Diameter: | 127mm |
| Operating Temperature: | -20℃ -- +60℃ | Warranty: | 1 Year |
| Highlight |
Silica Gel Fiber Optic Rubber Polishing Pad,Rubber Polishing Pad Patch Cord Production Materials,Silica Gel 127mm Optical Fiber Tools |
||
Product Description
Fiber Optic Polishing Rubber Pad Optical Fiber Patchcord Production Line Materials
Model:PR5X-500-65
Place of Origin:Japan
Product description
Fiber Optic Polishing Rubber Pad is suitable for grinding optical fiber connectors, connectors include ceramic ferrules, MTP, MPO and other non-standard connectors;Widely used in four-point pressure grinding machine and precision engineering SFP-550 series grinding machine;There are many different degrees and thicknesses for customers to choose from.
Feature
1. Special designed for polishing spherical surface of fiber connectors
2. 100% tested for hardness and parallelism A5
3. Surface hardness flat and even
4. Fiber polishing pad material quality: Silica gel
Specification
| Item | value |
| Brand Name | Seikoh Giken |
| Model Number | PR5X-500-65 |
| Type | FTTx Solutions |
| Use | Fiber polishing,SC/FC/ST/LC/MU |
| Material | rubber |
| diameter | 127mm |
| thickness | 5.0mm |
| Weight | 150g |
Model List
| Part Number | Size Diameter | Thickness | Material | Hardness(Shore Hardness) | Packing |
| PG5X-480-00 | 127mm | 4.8mm | Glass | 3pcs/set | |
| PG5X-490-00 | 127mm | 4.9mm | Glass | 3pcs/set | |
| PG5X-500-00 | 127mm | 5.0mm | Glass | 3pcs/set | |
| PR5X-480-70 | 127mm | 4.8mm | Rubber | 70 | 3pcs/set |
| PR5X-480-80 | 127mm | 4.8mm | Rubber | 80 | 3pcs/set |
| PR5X-480-90 | 127mm | 4.8mm | Rubber | 90 | 3pcs/set |
| PR5X-500-60 | 127mm | 5.0mm | Rubber | 60 | 3pcs/set |
| PR5X-500-65 | 127mm | 5.0mm | Rubber | 65 | 3pcs/set |
| PR5X-500-70 | 127mm | 5.0mm | Rubber | 70 | 3pcs/set |
| PR5X-500-75 | 127mm | 5.0mm | Rubber | 75 | 3pcs/set |
| PR5X-500-80 | 127mm | 5.0mm | Rubber | 80 | 3pcs/set |
| PR5X-500-85 | 127mm | 5.0mm | Rubber | 85 | 3pcs/set |
| Pr5x-500-90 | 127mm | 5.0mm | Rubber | 90 | 3pcs/set |
