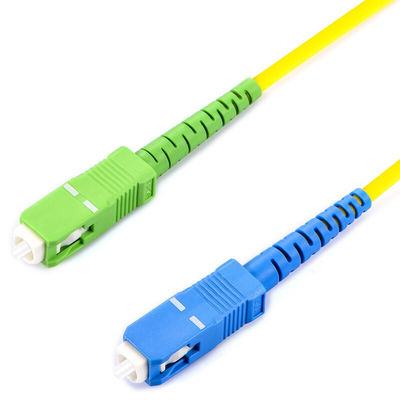

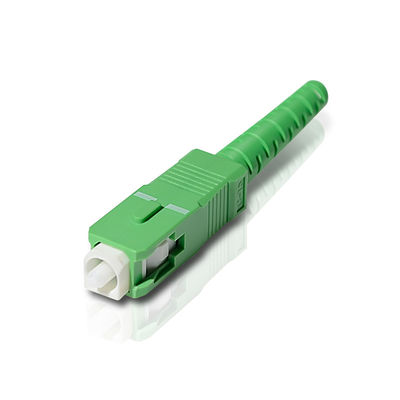

High Precision Single Mode Fiber Sc Connector PBT Fibre Channel Connector 5.0mm Boot
Product Details
| Type: | Fiber Optic Connector | Ferrule Type: | SM 125μm MM 127μm |
|---|---|---|---|
| Operating Temperature: | -40℃~75℃ | Application: | FTTH FTTB FTTX Network,Data Center,CATV |
| Boot Type: | 0.9mm/2.0mm/3.0mm/4.0mm/5.0mm | Material: | PBT |
| Highlight |
5.0mm Boot PBT Fiber Sc Connector,Single Mode Fiber Sc Connector,5.0mm Fibre Channel Connector |
||
Product Description
High Quality Ultra Low Insertion Sc Singlemode Simplex Fiber Optic Connector
Model:SX-SM-SC-UPC
Place of Origin:ShenZhen,China
Description
Fiber optic connector, or optical fiber connector, is a component to terminate the end of fiber optical cable, and enables quicker connection and disconnection than fiber splicing. It mechanically couples and aligns the fiber cores to make light pass successfully. Therefore, fiber optic connector has an important impact on the fiber optic transmission reliability and the performance of the system. Quality optical connectors lose very little light due to reflection or misalignment of the fibers.
Feature
High size precision.
Good repeatability.
Good changeability.
Good temperature stabilization.
High wearable.
Specifications
| Parameter | Unit | FC,SC,LC | ST,MU | MT-RJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥50 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating Wavelength | nm | 1310,1550 | 1310,1550 | 1310,1550 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | ℃ | -40～+75 | -40～+75 | -40～+75 | |||||||
| Storage temperature | ℃ | -40～+85 | -45～+85 | -45～+85 | |||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | |||||||
Application
These connectors are suitable for 900μm, 2mm and 3mm cable. The connector is precision made and manufactured to demanding specifications. The combination of a ceramic ferrule with precision nickel plated brass housing provides consistent,long-term mechanical and optical perforance.
