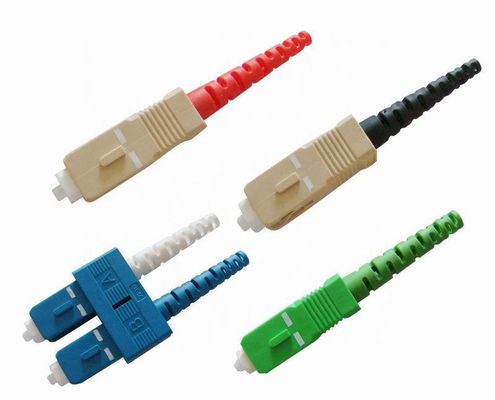

Multimedia Multimode Fiber Patch Cord Connectors Apc Sc Connector
Product Details
| Type: | Fiber Optic Connector | Operating Temperature: | -40℃~75℃ |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network,Data Center,CATV | Material: | PBT |
| Insertion Loss: | 0.2dB(SM), 0.3dB(MM) | Return Loss: | PC≥45dB, UPC≥50dB,APC≥60dB |
| Highlight |
Multimedia Fiber Patch Cord Connectors,Multimode Fiber Patch Cord Connectors,multimode apc connectors |
||
Product Description

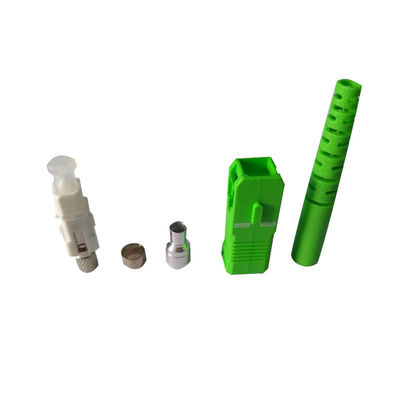

Fibre optical connector sc apc for patchcord pigtail
Model:SX-SM-SC-APC
Place of Origin:ShenZhen,China
1. Applications
CATV
Telecom Network
Metro
Multimedia
Data processing
Premiseinstallation
GigabitEthernet
2. Features
Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key
Nickel plated brass body
Telcordia style boots
Free-floating ceramicferrule
3. Specifications
| Single Mode | Multimode | |
| Insertion Loss | <0.10 dB | <0.15dB |
| Return Loss | ≥55dB(APC≥65dB) | ≥35dB |
| Duranility | <0.1dB typical change,500 matings | |
| Operating Temperature | -40℃~75℃ | -40℃~75℃ |
| Ferrule Hole Sizes | 125.0+1/-0um,Conentricity≤1um | 125um,Conentricity≤3um |
| 125.3+1/-0um,Conentricity≤1um | 127um,Conentricity≤3um | |
| 125.5+1/-0um,Conentricity≤1um | 128um,Conentricity≤3um | |
| 126.0+1/-0um,Conentricity≤1um |
4. Ordering Choices:
FC/PC SM one-piece, multi-piece, 3mm or 2mm boot
FC/PC SM one-piece, multi-piece, 900um boot
FC/APC SM one-piece, multi-piece, 3mm, 2mm or 900um boot (conical)
FC/APC SM one-piece, multi-piece, 3mm, 2mm or 900um boot (step)
FC/APC SM one-piece, multi-piece, 3mm, 2mm or 901um boot (conical pre-angled)
FC/PC MM one-piece, multi-piece, 3mm or 2mm boot
FC/PC MM one-piece, multi-piece, 900um boot
