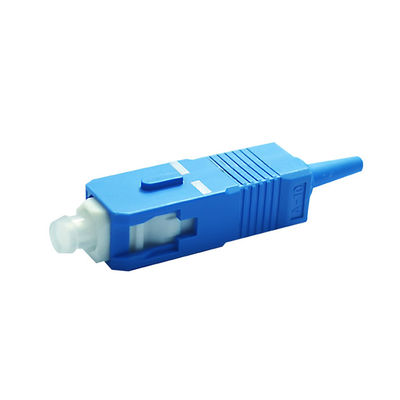

IEC Standard SC PC Fiber Patch Cord Connectors For 0.9/2.0/3.0mm Fiber Jumpers
Product Details
| Type: | Fiber Optic Connector | Application: | FTTH FTTB FTTX Network,Data Center,CATV |
|---|---|---|---|
| Fiber Type: | SM MM | Return Loss: | PC≥45dB, UPC≥50dB,APC≥60dB |
| Insertion Loss: | 0.2dB(SM), 0.3dB(MM) | Material: | PBT |
| Highlight |
SC PC Fiber Patch Cord Connectors,2.0mm Fiber Patch Cord Connectors,IEC sc fiber optic connector |
||
Product Description
Good quality SCPC fiber optic connector for 0.9mm 2.0mm 3.0mm Optic Fiber Patchcord
Model:SX-SM-SC-UPC
Place of Origin:ShenZhen,China
Description
Fiber optic connector has a screw thread fitting into the adapter to provide a secure connection. The connector is comprised of a nickel plated brass body and a ceramic ferrule/spring/crimp barrel assem bly plus a crimp-over sleeve and rubber boot.
Fiber optic connector, or optical fiber connector, is a component to terminate the end of fiber optical cable, and enables quicker connection and disconnection than fiber splicing. It mechanically couples and aligns the fiber cores to make light pass successfully. Therefore, fiber optic connector has an important impact on the fiber optic transmission reliability and the performance of the system. Quality optical connectors lose very little light due to reflection or misalignment of the fibers.
Feature
● Low insertion loss
● Good repeatability
● Good compatibility
● Minimum number of inserts 500 times
● All parts compliant with RoHs/REACH
● IEC standard compatible
● UL Flame Rating of 94V-0
● The color of the boot can be customized
Specifications
| Parameter | Unit | FC,SC,LC | ST,MU | MT-RJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥50 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating Wavelength | nm | 1310,1550 | 1310,1550 | 1310,1550 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | ℃ | -40～+75 | -40～+75 | -40～+75 | |||||||
| Storage temperature | ℃ | -40～+85 | -45～+85 | -45～+85 | |||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | |||||||
