Metal Body Simplex Single Mode UPC Fc Pc Fiber Connector With 2.0mm Boot
Product Details
| Type: | Fiber Optic Connector | Application: | FTTH FTTB FTTX Network,Data Center,CATV |
|---|---|---|---|
| Fiber Type: | SM MM | Return Loss: | PC≥45dB, UPC≥50dB,APC≥60dB |
| Insertion Loss: | 0.2dB(SM), 0.3dB(MM) | Material: | PBT |
| Highlight |
2.0mm Fc Pc Fiber Connector,Single Mode Fc Pc Fiber Connector,2.0mm fc upc fiber connector |
||
Product Description

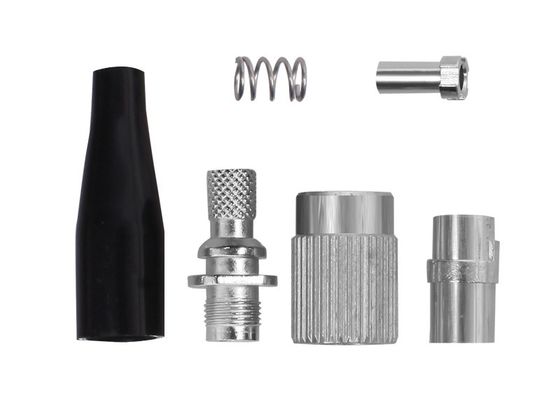

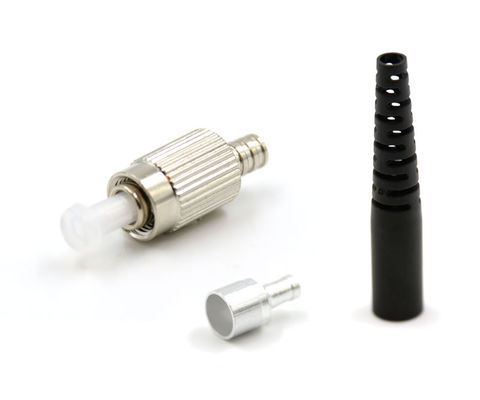

Optical Fiber Simplex Singlemode FC PC UPC Connector with 2.0mm boot and metal body
Model:SX-SM-FC-UPC
Place of Origin:ShenZhen,China
Description
FC-PC/UPC connector is available in both single-mode and multimode versions, and is fully compatible with Bellcore. Both singe-mode and multimode versions come with a zirconia ceramic ferrule with pre-polished PC/UPC profile and convex spherical end. This allows for fast polishing of the fiber and enables the installer to achieve low optical loss, while ensuring maximumrepeatability.
Feature
● Low insertion loss
● Good repeatability
● Good compatibility
● Minimum number of inserts 500 times
● All parts compliant with RoHs/REACH
● IEC standard compatible
Specifications
| Parameter | Unit | FC,SC,LC | ST,MU | MT-RJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥50 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating Wavelength | nm | 1310,1550 | 1310,1550 | 1310,1550 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | ℃ | -40～+75 | -40～+75 | -40～+75 | |||||||
| Storage temperature | ℃ | -40～+85 | -45～+85 | -45～+85 | |||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | |||||||
Application
- WANs,LANs,CATV
- Testing equipment
- Communication system
- Telecommunication networks
Product Highlights
