Model:SX-SM-LC-UPC
Place of Origin:ShenZhen,China
Description

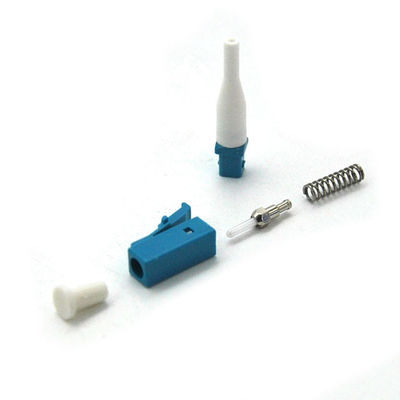

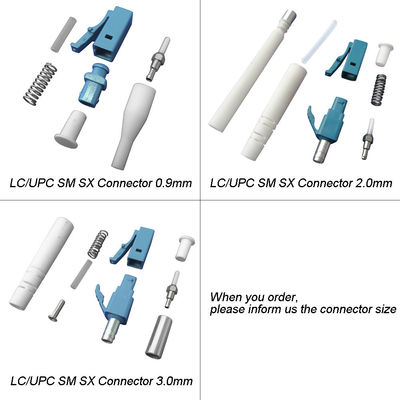

Fiber connectors are available with a wide assortment of options, including simplex, duplex, multimode, single mode, and 3mm, 2mm, or 900µm boot sizes.
Specifications
| Parameter | Unit | FC,SC,LC | ST,MU | MT-RJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥50 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating Wavelength | nm | 1310,1550 | 1310,1550 | 1310,1550 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | ℃ | -40～+75 | -40～+75 | -40～+75 | |||||||
| Storage temperature | ℃ | -40～+85 | -45～+85 | -45～+85 | |||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
|||||||
Feature
1. High quality zirconium dioxide ceramic ferrule.
2. Mature production technology and facility, stable interchangeability and repeatability.
3. The length, outer diameter, ferrule end face and adapter customizable.
4. Low insertion loss, high return loss
5. High dense connection, easy for operation
6. High credibility and stability
7. Good in repeatability and exchangeability
8. 100% test before shipment

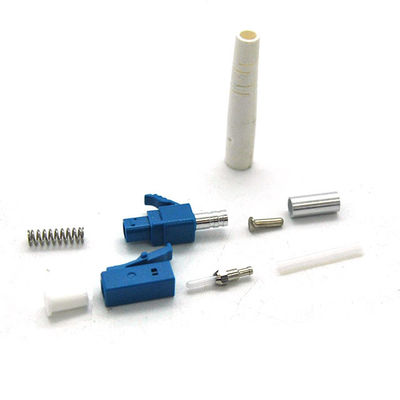

Connector Installation Steps
Application
Telecommunication System
Fiber Optic Access
LAN
Fiber data transmission
CATV Networks
