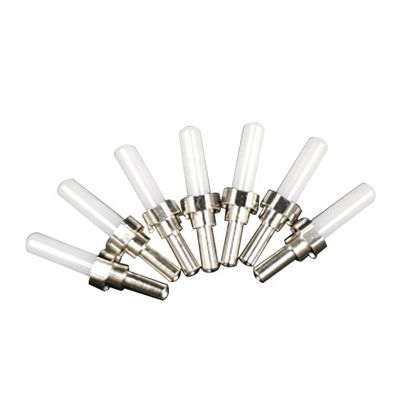

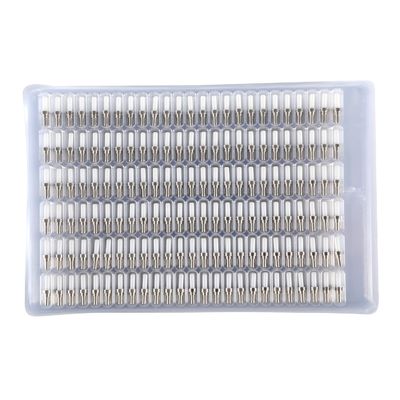

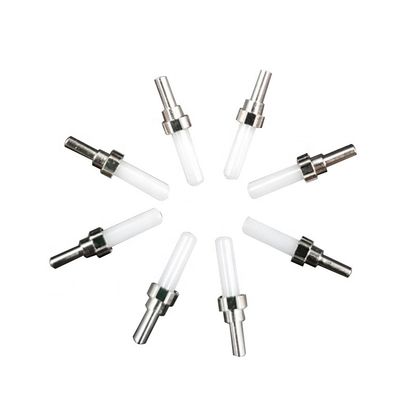

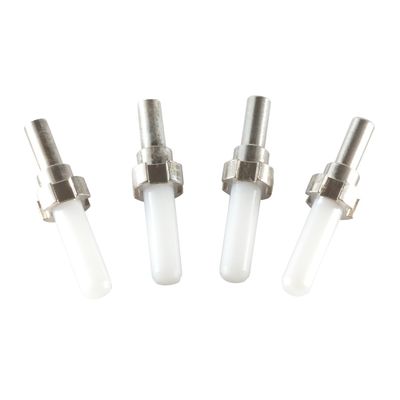

1.0Um Concentricity Multimode Optical Fiber Ferrule 2.50mm Pc Type For Fiber Connectors
Product Details
| Type: | Fiber Adapter & Connectors, | Product Name: | Fiber Optic Ferrule |
|---|---|---|---|
| Concentricity: | 1.0 Um | Fiber: | MM |
| Bore Size: | 255 Um | Application: | SC/FC/ST Fiber Optic Connector |
| Highlight |
Multimode Optical Fiber Ferrule,1.0Um Concentricity Optical Fiber Ferrule,Pc Type fiber optic ferrule |
||
Product Description
1.0 um concentricity 2.50mm pc type multimode ceramic ferrule for fiber adapter & connectors ftth fiber optic ferrule
Model:Ferrule-2.50mm-UPC-MM
Place of Origin:ShenZhen,China
Description
Fiber optic ceramic ferrule, also known as ceramic plug body. The fiber-optic connector has a precisely aligned cylinder in the center with a micropore for the fixed fiber. It is a kind of nano-zirconia (ZrO2) material by a series of formulations, processed from the high-precision special ceramic components, the aperture, true roundness error of 0.5 . The connector is a detachable, classified fiber optic connector, so that the optical channel connection, conversion scheduling more flexible, for the optical system debugging and maintenance.
Features
- Good Concertricity- High strength mechanism durability
- Low insertion loss
- Stable connection compatibility
Specifications
| Item | Ceramic Optical Fiber Ferrule |
| Type | SC/PC |
| Fiber | Singlemode |
| O.D.Size | 2.499±0.0005 mm |
| I.D.Size | 0.0010 mm |
| Concentricity | 0.3 um, 0.5 um, 1.0 um |
| Material | Zirconia Ceramic |
| OEM | Support |
