Medical Industry Apc Upc Fiber Patch Cord Connectors With Metal Ferrule

200 Piece
MOQ
Negotiable
Price
Medical Industry Apc Upc Fiber Patch Cord Connectors With Metal Ferrule
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fiber Optic Connector
Model: SMA 905
Certification: CE RoHS SGS
Application: Military, Medical
Material: Metal And Plastic
Ferrule End-face: PC, UPC,APC
High Light:

SMA 905 Fiber Patch Cord Connectors

,

Metal Ferrule Fiber Patch Cord Connectors

,

SMA 905 apc upc fiber connector

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Model Number: SMA 905
Payment & Shipping Terms
Packaging Details: Bags packed by Carton ,OEM bag/Carton optional
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 10000 Piece/week
Product Description

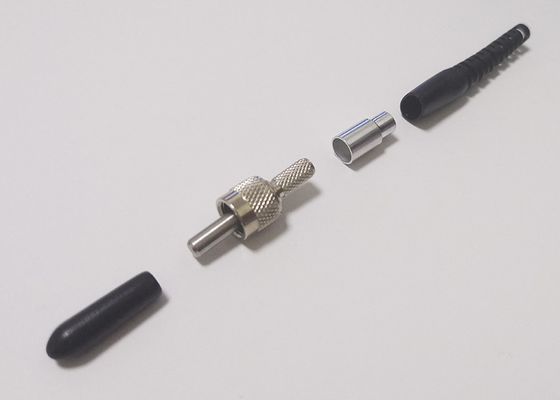

SMA905 fiber optic connector with metal ferrule for Medical/Laser/Energy


Model:SMA 905

Place of Origin:ShenZhen,China


Description

The SMA-905 Connector, also know as FSMA Connector, was one of the first fiber optic interconnect system that gained industry wide acceptance. Today the connector is still widely used for military, industrial, and medical applications.


Feature

1. TIA / IEC compliant

2. Threaded nut connector

3. Simple termination and assembly

4. Stainless Steel or Zirconia ferrule with custom ID sizes up to 1500um

Medical Industry Apc Upc Fiber Patch Cord Connectors With Metal Ferrule 0


Application

1. Military

2. Industrial

3. Laser Systems

4. Spectrometers

5. Medical / Surgical


Specifications

Mode SM MM
Polish UPC APC PC
Insertion Loss Typical ≤0.2dB Maximum ≤0.3dB ≤0.25dB
Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strengh > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)
