IEC Standard Fc To St Fiber Adapter , Fiber Optic Cable Coupler For Metro Industry
Product Details
| Type: | Fiber Adapter & Connectors | Product Name: | FC To ST Duplex Female Fiber Adapter |
|---|---|---|---|
| Durability: | 1000times | Available For: | SC-FC, SC-ST, FC-ST, SC-LC, FC-LC And ST-LC |
| Material: | Zinc Alloy，High Precision Ceramic Sleeve&Rubber/APS | Durability (500 Mating): | 0.1dB Max. |
| Withdrawal Force(g/f): | 200~600 | Storage Temp: | -40~+85 |
| Highlight |
IEC Standard Fc To St Fiber Adapter,IEC Standard fiber optic cable coupler,Metro Industry Fc To St Fiber Adapter |
||
Product Description

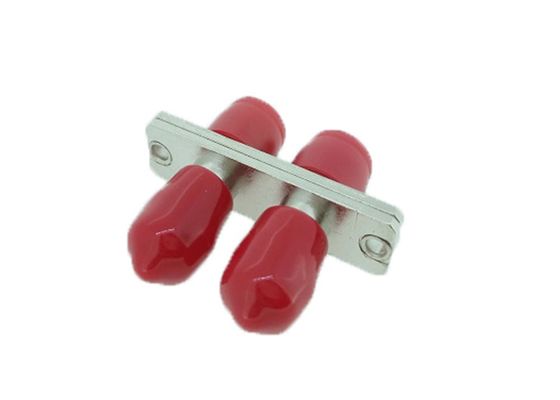

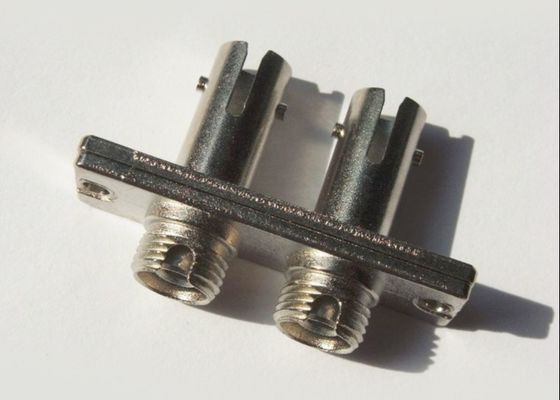

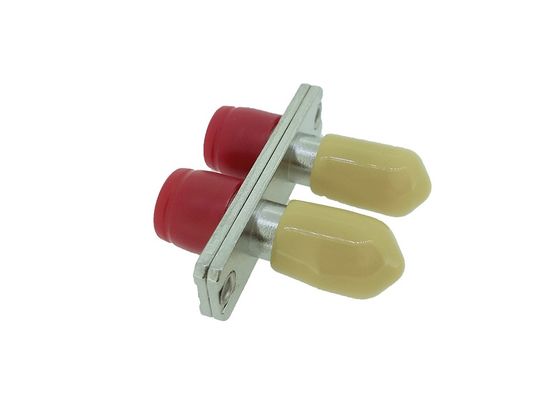

FC to ST female to female hybrid duplex fiber optic adapter
Model:SM-DX-FC/UPC-ST/UPC
Place of Origin:ShenZhen,China
Description
FC(Female) to ST(Female)type fiber optic hybrid adapter, Converting FC connector to ST Connector. Variable FC interface conversion ST interface. Provided a simple and reliable solution for connecting two different optic fiber transmission joints.
Features
- Precision connection with sleeve
- SM and MM connector can be used interchangeably
- Low insertion loss, High Return loss
- Good interchangeability and reliability
- Meet IEC and ROHS standards
- High precision of mechanical dimensions Accuracy
Material
| Parts name | Material | Color |
| Housing body | Zinc alloy | - |
| Sleeve | High precision Ceramic sleeve | White |
| Dust cover | Rubber/APS | Red/Yellow/Black |
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (500 Mating) | 0.1dB Max. | ||
| Withdrawal force(g/f) | 200~600 | ||
| Storage Temp | -40~+85 | ||
Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125
Application
- Patch panels, ODF and other optical connections.
- Optical networks demarcation and monitoring point.
Packaging&Labeling
