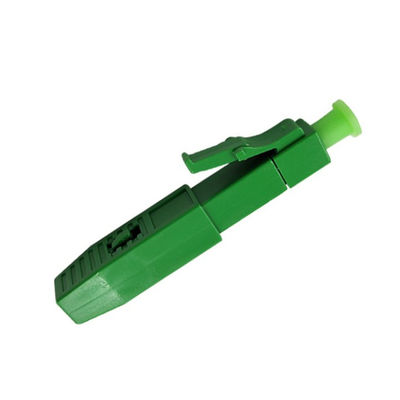

Plastic Field Installable Fiber Optic Fast Connectors FTTH Lc/Upc Military Use
Product Details
| Type: | Fiber Optic Fast Connector | Insertion Loss: | Max.APC≤-50dB, Typical≤-55dB Max UPC≤-40dB, Typical≤-45dB |
|---|---|---|---|
| Return Loss: | Max.≤0.5dB, Typical≤0.3dB | Tensile Strength: | >30N |
| 3D Interferometry: | Complies To IEC 2009 | Operating Temperature: | -20°C~+75°C |
| Highlight |
Military Use Fiber Optic Fast Connectors,Lc Upc Fiber Optic Fast Connectors,field installable connector |
||
Product Description
FTTH Lc/Upc Connectors Optic Fiber Optics Splice Anatel Conector Upc Lc Fast Connector
Model:LC/APC
Place of Origin:ShenZhen,China
Description
This specification defines the characteristics of LC/UPC & LC/APC Field Installable Connector (FIC Type LC35) with G652D/G657A1/G657A2 fiber in a pre-polished LC ferrule. This FIC is designed to be used with 0.9mm (900um) tight buffer cable.
Overall Performance
The FIC fulfills the following spec. and Insertion Loss is tested 100%. The return loss is produced to be
as low as -55dB, so the FIC could bring lowest disturbance to the FTTx system.
| Item Name | Spec. Value |
| Insertion Loss (dB) | Max.≤0.5dB, Typical≤0.3dB |
| Return Loss (dB) | Max.APC≤-50dB, Typical≤-55dB Max UPC≤-40dB, Typical≤-45dB |
| Ferrule End Face | No scratches at 400X |
| 3D Interferometry | Complies to IEC 2009 |
| Average Assembling Time | ≤ 3 min |
| First-Time Done Yield Rate | ≥ 95% |
| Re-Operation Times | Max. 5 times |
| Repeatability (±0.2dB) | ≥ 90% |
| Appearance | No Defects |
| Tensile Strength | >30N |
| Operating Temperature | -20⁰C~+75⁰C |
| Storage Temperature | -40⁰C~+85⁰C |
