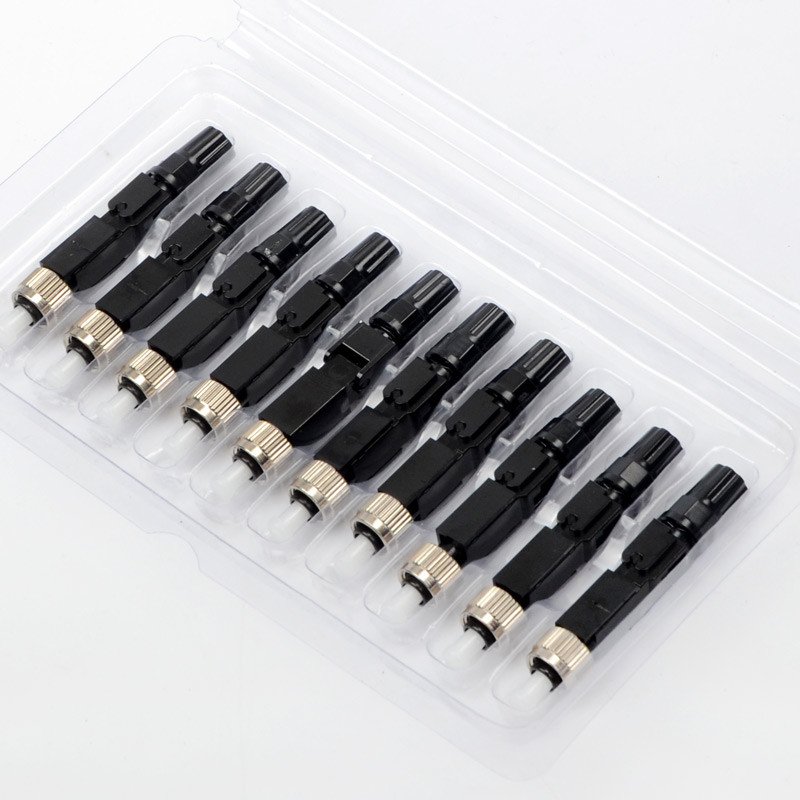

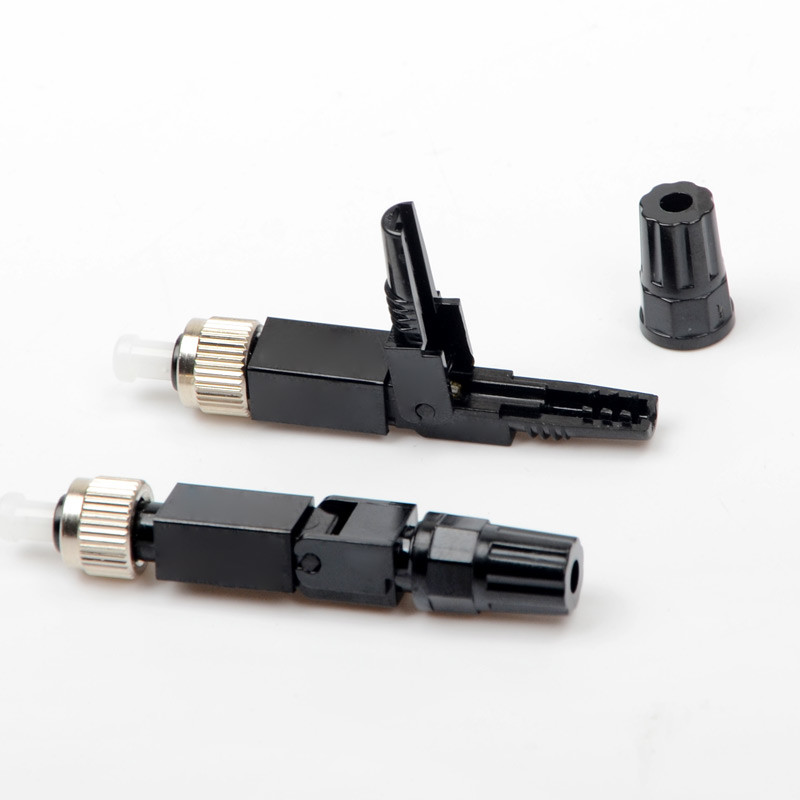

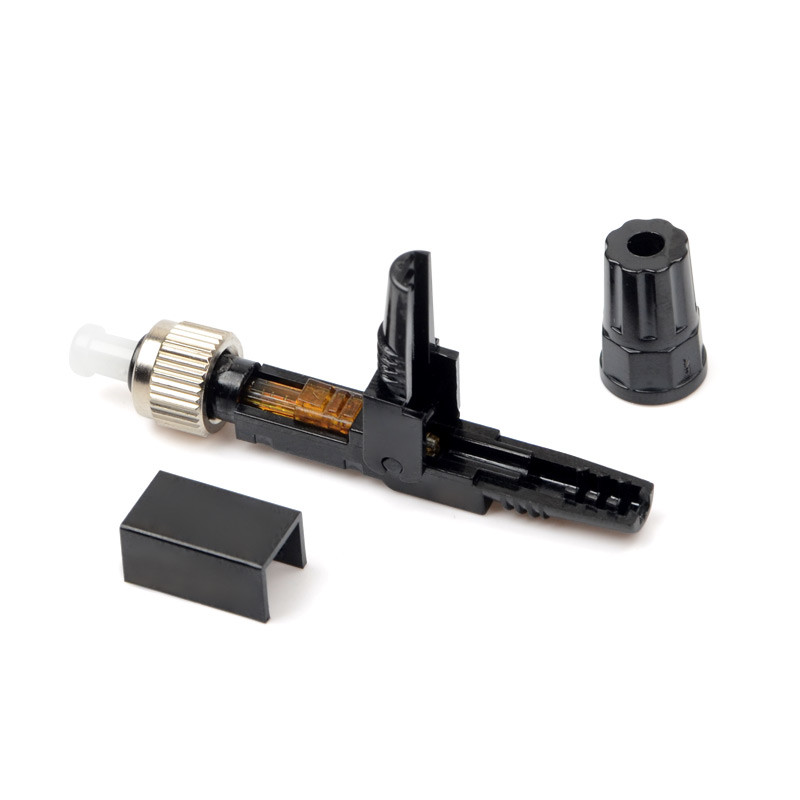

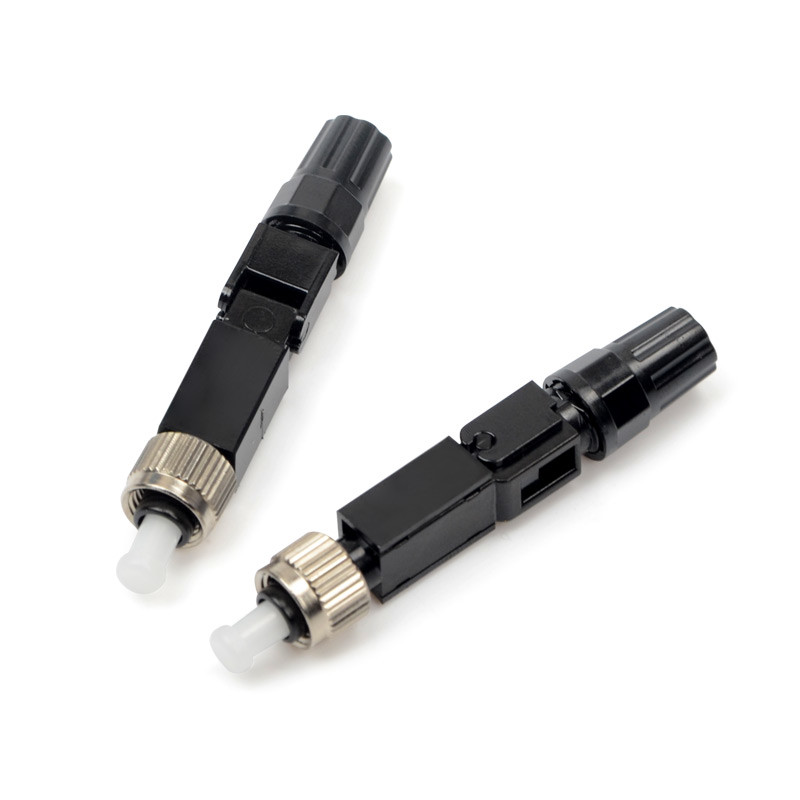

Model:FC/UPC
Place of Origin:ShenZhen,China
Description
Quick Assembly SC connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and makeconnection in minutes at equipment and fiber patch panels. This connector systemwith features of high installation quality, high success rate and high reliability.
Features
- No special tools needed when installed
- Without any gluing and polishing process
- Can be made on-site without splicing connectors
- Only 30 seconds needed to learn the process of installation
- Good high temperature performance and good sealing
- Easy installation, quick and fast in the assembly field
- High return loss and low insertion loss
Application
- Distribution Frames & Patch Panels
- Fiber Optic Patch Cord & Pigtail
- Telecommunication Networks
- Data Processing Networks
- FTTH (Fiber To The Home)
- Local Area Network (LAN)
- Test Equipment.
- CATV & CCTV
Specification
| item | QUICK ASSEMBLE SC CONNECTOR |
| Optical fiber diameter | 0.125mm (657A &658B) |
| Tight buffer diameter | 0.250mm |
| Fiber mode | Single mode |
| Insert loss | ≤0.3dB |
| Return loss | UPC≥45dB, APC≥55dB |
| Fastening strength of naked fiber | >4N |
| Fastening strength of naked fiber holder | >20N |
| Using Temperature | -40°C~+85°C |
| Connector Type | SC |
| Temperature cycle experiment (168h) | △IL≤0.5dB |
| High temperature and high humidity experiment (96h) | △IL≤0.5dB |
| Drop-off test (drop off height 1.5m, once per direction, totally 8 times) | △IL≤0.5dB |
Packing & Delivery
1000PCS/CTN/5.0KGS/0.02CBM 2000PCS/CTN/10.0KGS/0.038CBM 1.Standard export package 2.Customized packing way
