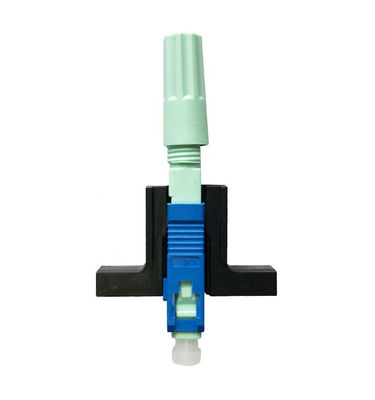

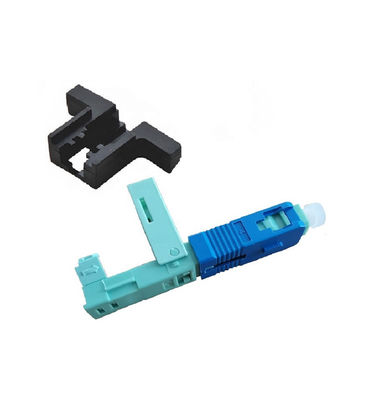

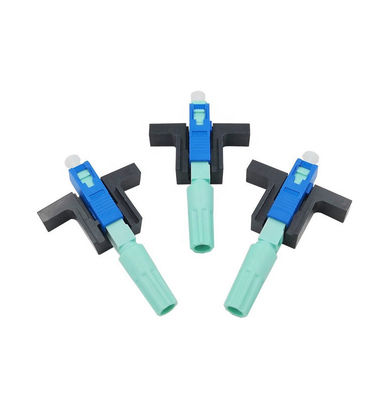

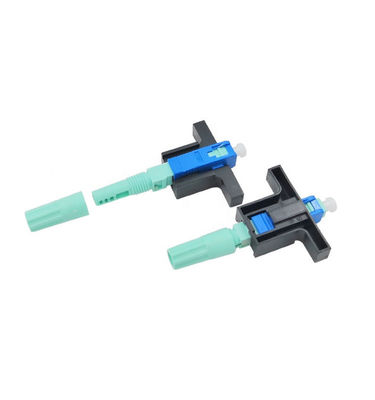

ISO9001 SC UPC Fiber Optic Fast Connectors For FTTH 0.9/2.0/3.0mm Fiber Cable
Product Details
| Type: | Fiber Optic Fast Connector | Mode: | Single Mode |
|---|---|---|---|
| Color: | Blue | Applicable For: | 0.9/2.0/3.0mm Fiber Optic Cable |
| Carton Size: | 34*33*21cm | Weight: | 6kgs/ctn |
| Highlight |
3.0mm Cable Fiber Optic Fast Connectors,ISO9001 Fiber Optic Fast Connectors,3.0mm Cable sc upc fiber connector |
||
Product Description
New Type SC UPC Optic Fiber Fast Connector For FTTH 0.9 2.0 3.0 Fiber Optic Cable
Model:SC/UPC
Place of Origin:Guangdong,China
Description
Field Assmbly SC quick connector can proivide a quick and easy of fiber in the field.Options are avaliable for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber ederface inspection.
Features
1. Factory-installed fiber stub
2. No epoxy or polishing required
3. Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splicestorage
4. Eliminates cable excess length and pigtail splicestorage
5. Cost effective
6. Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable
Specification
| Fast Connector | |||
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss |
Typical≤0.2dB Maximum≤0.3dB |
≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Tensile Strengh | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours | ||
Packing & Delivery
1000PCS/CTN/5.0KGS/0.02CBM 2000PCS/CTN/10.0KGS/0.038CBM 1.Standard export package 2.Customized packing way
