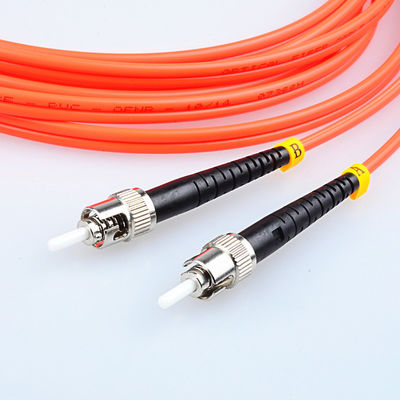

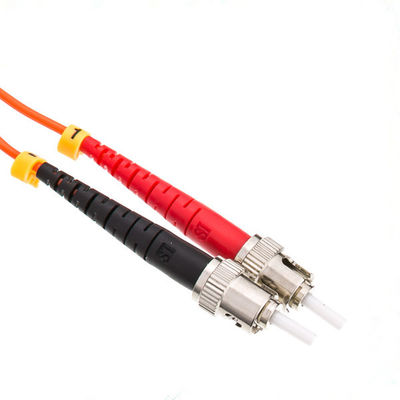

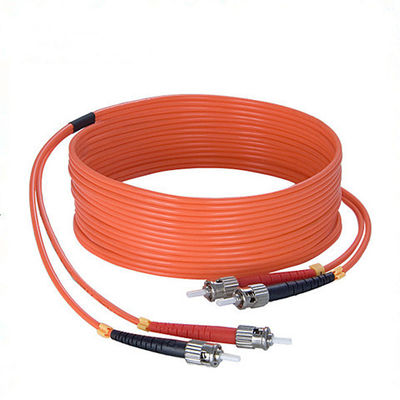

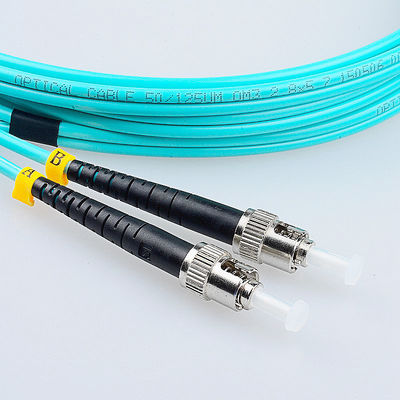

Model Number:ST/UPC-ST/UPC-MM-SX Patch Cable
Place of Origin:ShenZhen,China
Description
Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.
Feature
Meets ROHS and Bell core GR 326-core standards
Custom Configurations Available at No Extra Charge
Available in fiber bunch, ribbon fan-out, pigtail available
FC, LC, ST, SC, MTRJ, MU, MPO, D4, SMA optional
Ferrule of end-face: PC, UPC, APC
PVC, LSZH, OFNR, OFNP fiber cable optional
Factory 100% test before shipment
Low insertion loss and high return loss
Serialized & Individual Test Records
Application
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application
Specification
| Parameter | Single Mode | Multi Mode | |||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | |||
| Ferrule End-face | PC | UPC | APC | UPC | |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.2bB | |
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | |||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | |||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | |
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | ||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | ||
| Apex offset | ≤50um | ||||
| Mechanical | Exchangeability | ≤0.2dB | |||
| Salt Spray | ≤0.1dB | ||||
| Drop | ≤0.2dB(1.5M, 5 drops) | ||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | ||||
| Repeatability | ≤ 0.1dB(1000 times) | ||||
| Durability | > 1000 times | ||||
| Operating Temperature | -40°C ~ +85°C | ||||
