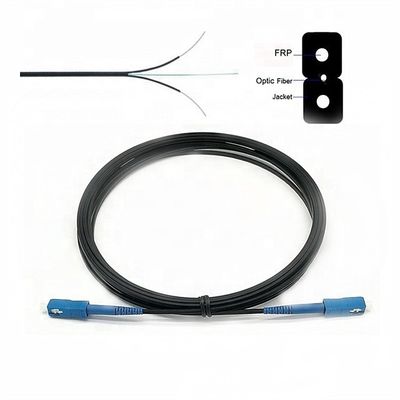

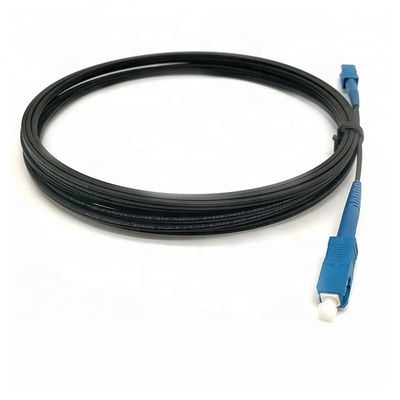

Simplex Single Mode Fiber Optic Patch Cord SC/UPC Drop Cable High Return Loss
Product Details
| Type: | FTTH Fiber Optic Patch Cord | Length: | Customized |
|---|---|---|---|
| Mode: | 9/125, 50/125, 62.5/125, OM3, OM4 | Ferrule End-face: | UPC |
| Insertion Loss: | < 0.35dB | OEM: | Welcome |
| Highlight |
Simplex Fiber Optic Patch Cord,SC UPC Fiber Optic Patch Cord,SC UPC fiber optic drop cable |
||
Product Description
Fiber Optical Patch Cord Simplex Single Mode SC/UPC Drop Cable Fiber Optic Patch Cord
Model Numbe:SC/UPC-SC/UPC-SX-SM-DC
Place of Origin:ShenZhen,China
Description
Armored patch cord can be laid in all kinds of environmental extremes. It is used without protection tube which saves space and is quite convenient for maintenance. Also it has the construction including stainless steel tube which protects optical fiber and provide better security for the whole system.
Features
| 1. The connectors are comply with IEC, Telcordia-GR-326-Core standards |
| 2. Different size & color boot option |
| 3. Low insertion loss; High return loss |
| 4. 100% interferometer measurement |
| 5. Typical IL≤0.20dB |
| 6. Max IL≤0.25dB |
| 7. RL SM≥50dB, APC≥60dB, MM≥20dB |
| 8. Durability(500mating time): IL≤0.25dB |
| 9. Operating / storage temperature:- 20~+70°C |
Applications
- Machine room
- FTTH
- Area network
- Test equipment
- National defense
- FO sensor
- Light communication system
- Common antenna TV system
Specification
| Item | Multimode | |
| Ferrule End-face | PC | UPC |
| Insert attenuation | ≤0.3dB | ≤0.3dB |
| Return loss | ≥35dB | ≥40dB |
| repeatability | ≤0.1dB | ≤0.1dB |
| Operation temperature | -20°C~+70°C(PVC)/-40°C~+90°C(LSZH/PU) | |
| Outer diameter | 0.9mm, 2.0mm, 3.0mm | |
Our service
1.Standard and customized OEM products from small to large quantity are welcome.
2.Compliance with global environmental industry with ROHS and SGS standards.
3.All products are 100% fully tested by our technical expertise before shipping.
4.We provide fiber optic loopbacks according to industry standard.
Packing:
PE bag with stick label (we could add customer's logo in the label.)
