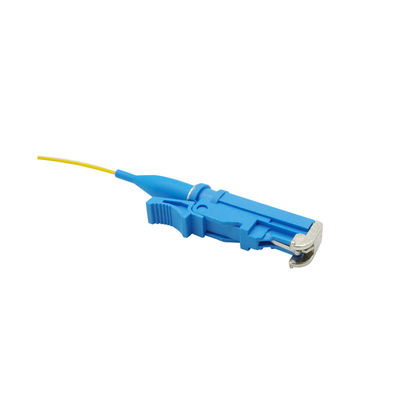

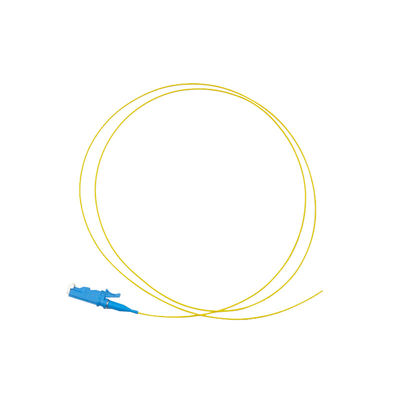

E2000 Single Core Fiber Optic Pigtail Single Mode UPC APC Connector
Product Details
| Model Number: | E2000 Connector Pigtail | Fiber Mode: | Single Mode |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Length: | 1m 2m 3m Or Customized |
| Material: | PVC/LSZH | Quality Control: | 100% Test Before Shipping |
| Highlight |
Fiber Optic Pigtail Single Mode,E2000 Fiber Optic Pigtail,E2000 pigtail fiber connector |
||
Product Description

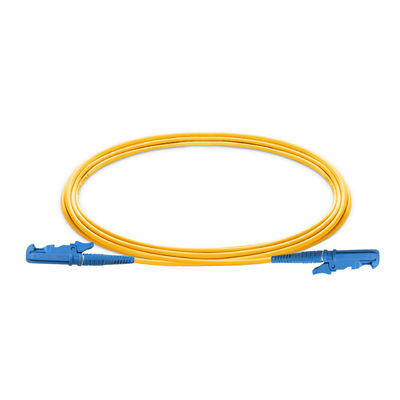

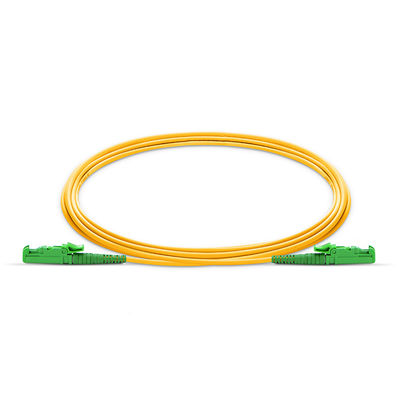

E2000 UPC APC Connector Single Mode Single Core Fiber Optic Pigtail Or Patch Cord
Model Numbe:E2000-Pigtail&Patch Cord
Place of Origin:Guangdong,China
Description
1. [E2000 fiber pigtail] has many advantages, such as small insertion loss, large return loss, strong interchangeability and good repeatability, etc.
2. [E2000 fiber pigtail] E2000 connectors with spring valves and push-pull locking devices are used at both ends.
3. The zipper locks fully when you insert the connector and the spring valve closes automatically when you pull it out.
4. The connector is characterized by protection of the pin from contamination and wear.
APPLICATION
It is widely used in long-distance and local optical transmission network, data transmission network, image transmission network,cable TV and other fields.
Specification
| Fiber Type | OS2 9/125 single mode, OM2 50/125 multi-mode, 10G OM3 50/125 multi-mode |
| Connector Type | E2000-E2000,LC-E2000,SC-E2000,FC-E2000,ST-E2000 |
| Polish Way | UPC/UPC,APC/APC |
| Fiber Core | Simplex/Duplex |
| Parameter | Unit | Single mode | |
| Insertion loss | dB | UPC | APC |
| ≤0.3 | ≤0.3 | ||
| Return loss | dB | ≥55 | ≥75 |
| Work wavelength | nm | 1310/1510 | |
| interchangeability | dB | ≤0.2 | ≤0.2 |
| vibration frequency | dB | ≤0.2 | ≤0.2 |
| Working temperature | ℃ | -40~75 | |
| Storage temperature | ℃ | -40~85 | |
| Cable outer diameter | nm | 3.0/2.0/0.9 | |
Package
