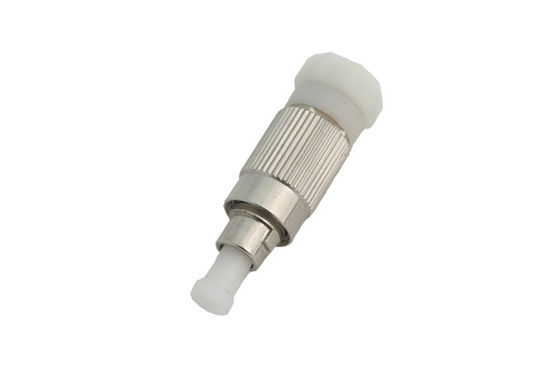

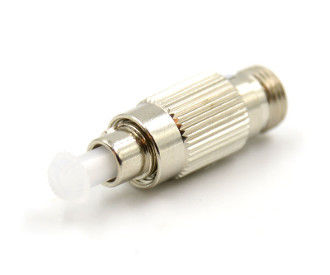

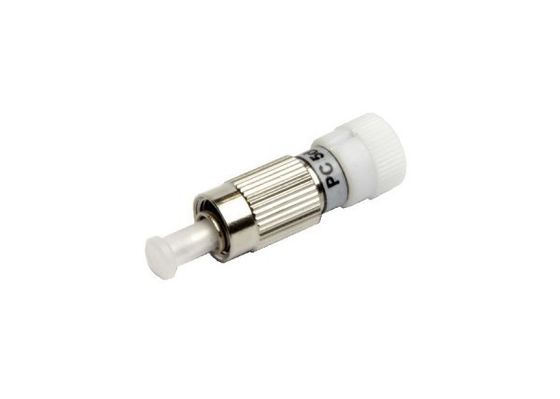

CATV 3db Single Mode Attenuator Male To Female UPC FC Attenuator High Power
Product Details
| Product Name: | Fixed Type Or Plug Type Fiber Optic Attenuator | Type: | Male-female |
|---|---|---|---|
| Material: | Metal,Plastic | Durability: | >1000 Times |
| OEM: | Welcome | Operating Wavelength(nm): | 1260~1620(SM) |
| Highlight |
CATV Single Mode Attenuator,High power Single Mode Attenuator,Male To Female UPC FC Attenuator |
||
Product Description
Fixed Fiber Attenuator FC/UPC Singlemode Plug Type 3db Male To Female Optical Fiber Attenuator

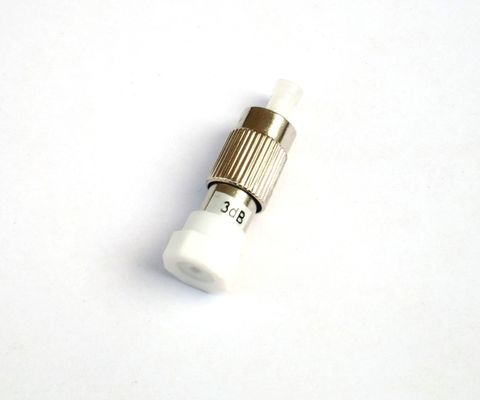

Model:FC/UPC Optical Attenuator 3dB
Place of Origin:Guangdong,China
Description
| 1. High power 1W continuous operation tested over 1000 hours |
| 2. Precise attenuation |
| 3. Return loss UPC >50 dB APC >60 dB |
| 4. Low ripple broadband design for operation at both 1310 and 1550 nm |
| 5. Attenuation range for SC, FC, and LC types 1 to 13 dB in 1 dB increments, 15 dB, and 20 dB |
Application
| 1. Fiber optic systems |
| 2. CATV and telecommunication systems |
| 3. Receiver padding for optical receiver protection |
| 4. Optical power equalization |
| 5. Increasing dynamic range for apparatus |
Specification
| Fiber Connector | FC/UPC |
| Ferrule Type | Zirconia Ceramic |
| Connector Gender | Fixed Male to Female |
| Transfer Mode | Singlemode |
| Attenuation | 1dB 3dB 5dB 6dB 7dB 10dB 15dB 20dB 25dB |
| Operating Wavelength(nm) | 1260~1620(SM) |
| Attenuation Accuracy | ±0.5dB |
| Return Loss | ≥55dB |
| Polarization Dependent Loss | ≤0.2dB |
| Humidity | 95%RH |
| Operating Temperature Range | -40~85°C |
| Storage Temperature Rang | -40~85°C |
Ordering Information: AT-A-B-C-D-E-F-G
| AT- | A | B | C | D | E | F | G |
| Attenuator | LP=LC/UPC |
M=Male
F=Female |
LP=LC/UPC |
M=Male
F=Female |
SM= SingleMode
MM= Multi mode |
1dB ...... 9dB 10dB 15dB 20dB 25dB 30dB |
31=1310nm
55=1550nm
85=850nm
30=1300nm |
| LA=LC/APC | LA=LC/APC | ||||||
| FP=FC/UPC | FP=FC/UPC | ||||||
| FA=FC/APC | FA=FC/APC | ||||||
| SP=SC/UPC | SP=SC/UPC | ||||||
| SA=SC/APC | SA=SC/APC | ||||||
| ST=ST/UPC | ST=ST/UPC | ||||||
| MU=MU/UPC | MU=MU/UPC |
For Example about full attenuator description : SC/UPC Single mode Female to male 3dB 1310/1550nm Build Out Fiber Optical Attenuator
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
