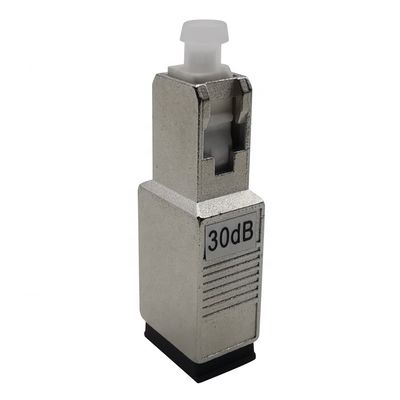

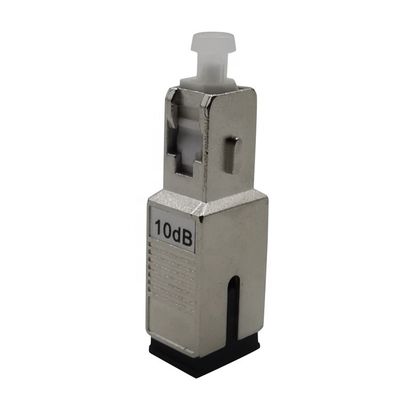

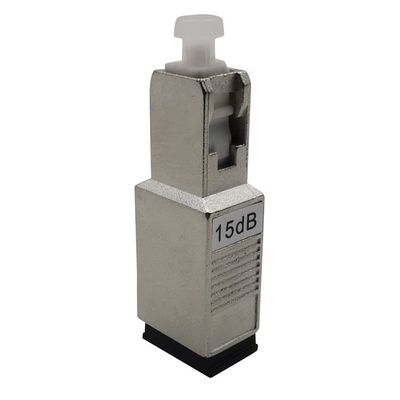

Fixed Type Optical Fiber Attenuator , Fast Connection UPC SC Attenuator Male To Female
Product Details
| Model Numbe: | Fiber Attenuator SC/UPC | Connector Gender: | Fixed Male To Female |
|---|---|---|---|
| Ferrule Type: | Zirconia Ceramic | Zirconia Ceramic: | 1~30dB |
| Attenuation Accuracy: | 1-9dB±0.5dB, 10-25dB±10% | Max Optical Input Power: | 200 MW |
| Highlight |
Fast Connection Optical Fiber Attenuator,Fast Connection UPC SC Attenuator,Male To Female Optical Fiber Attenuator |
||
Product Description

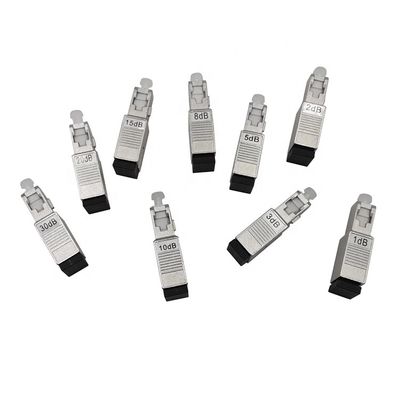

Fiber SC/UPC Attenuator Male-Female Fixed Type 1dB 2dB 3dB 5dB 8dB 10dB 15dB 20dB 30dB
Model:SC/UPC Optical Attenuator
Place of Origin:Guangdong,China
Description
Optic Attenuator is mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
Specification
| Name | Fibre Attenuator SC/UPC Male-Female Fixed Type |
| Fiber Connector | SC |
| Ferrule Type | Zirconia Ceramic |
| Connector Gender | Fixed Male to Female |
| Transfer Mode | SM/MM |
| Attenuation | 1~30dB |
| Operating Wavelength(nm) | 1260~1620(SM),850(MM) |
| Attenuation Accuracy | 1-9dB±0.5dB, 10-25dB±10% |
| Return Loss | ≥45dB |
| Polarization Dependent Loss | ≤0.2dB |
| Max Optical Input Power | 200mW |
| Humidity | 95%RH |
| Operating Temperature Range | -40~80°C |
| Storage Temperature Range | -40~85°C |
Features
1. Stable Attenuation
2. Fast Connection: Distinctive male-female port, easy to connect patch cables and other equipment.
3. Flexible case for easy portability: Accurate size armed with elegant dust cap, better ensure the handy installation and protection from out-service.
4. Durable metal shell for permanent protection: Shaped with metal material, our attenuators perfectly protect the core insert from external damage.
Application
Optic Attenuator is a passive device used to reduce the power level of an optical signal. Optic Attenuator is generally used in single-mode long-haul applications to prevent optical overload at the receiver. Optic Attenuator is widely used in CWDM&DWDM, CATV systems, data center networks, test equipment, and other high power applications.
Ordering Information: AT-A-B-C-D-E-F-G
| AT- | A | B | C | D | E | F | G |
| Attenuator | LP=LC/UPC |
M=Male
F=Female |
LP=LC/UPC |
M=Male
F=Female |
SM= SingleMode
MM= Multi mode |
1dB ...... 9dB 10dB 15dB 20dB 25dB 30dB |
31=1310nm
55=1550nm
85=850nm
30=1300nm |
| LA=LC/APC | LA=LC/APC | ||||||
| FP=FC/UPC | FP=FC/UPC | ||||||
| FA=FC/APC | FA=FC/APC | ||||||
| SP=SC/UPC | SP=SC/UPC | ||||||
| SA=SC/APC | SA=SC/APC | ||||||
| ST=ST/UPC | ST=ST/UPC | ||||||
| MU=MU/UPC | MU=MU/UPC |
For Example about full attenuator description : SC/UPC Single mode Female to male 3dB 1310/1550nm Build Out Fiber Optical Attenuator
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
