Adjustable Fc To Fc Adapter , Mechanical Multimode Fiber Attenuator Lc MM 850nm
Product Details
| Product Name: | Fiber Optic FC-FC Attenuator | Sleeve Material: | Ceramic Or Metal |
|---|---|---|---|
| Attenuation Level Range: | 0~30dB | Durability: | >1000 Times |
| Attenuation Accuracy: | ≤±0.5dB | Return Loss: | >20dB |
| Mating Times: | >1000 | Frequency: | 10Hz-55Hz |
| Highlight |
Adjustable Fc To Fc Adapter,Mechanical fiber attenuator lc,MM 850nm Fc To Fc Adapter |
||
Product Description

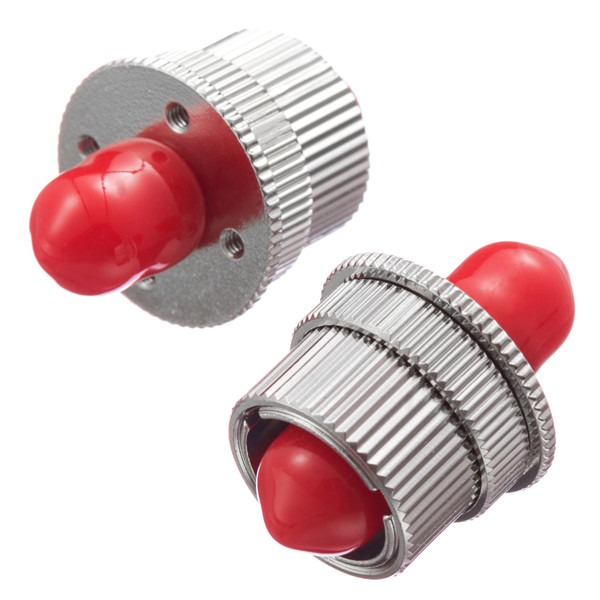

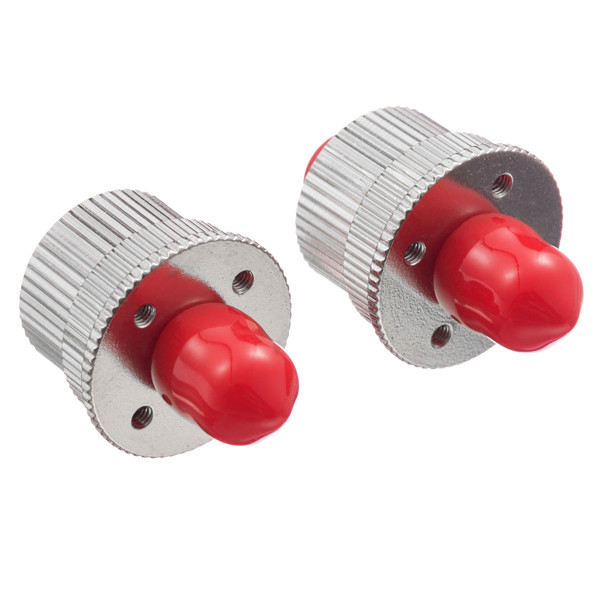

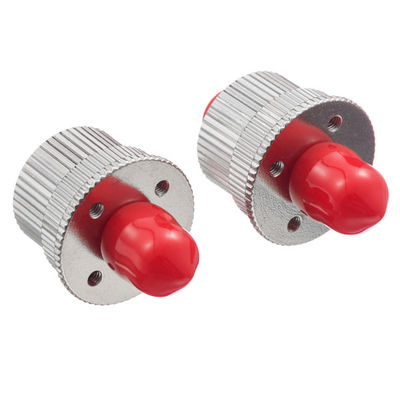

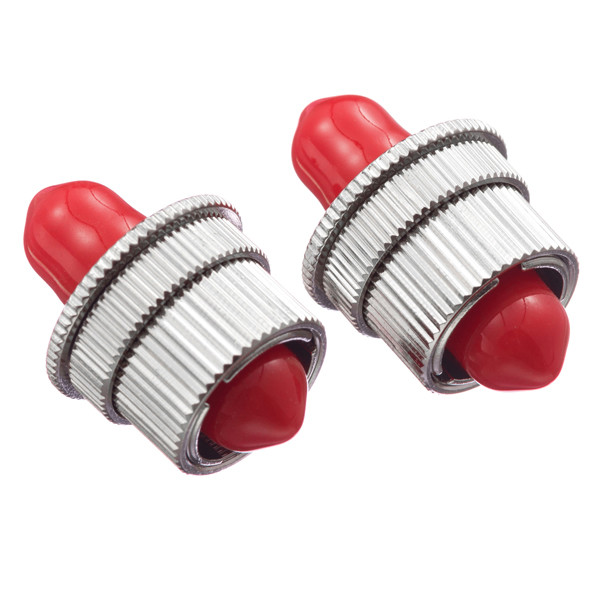

FC Mechanical Fiber Optic Adapter FC-FC Adjustable 0-30dB Fiber Optical Attenuator
Model:FC-FC Adjustable Fiber Optical Attenuator
Place of Origin:Guangdong,China
Description
Optic Attenuator is mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
Specification
| Item: | FC-FC Adjustable 0-30dB Fiber Optical Attenuator | |
| Sleeve material: | ceramic or metal | |
| Wavelength: | SM 1310nm&1550nm | MM 850nm |
| Attenuation accuracy | ≤±0.5dB | |
| Return Loss: | >20dB | |
| Working temperature: | -40℃~80℃ | |
| Storage temperature: | -55℃~85℃ | |
| Mating times: | >1000 | |
| Frequency: | 10Hz-55Hz | |
| Vibration: | Amplitude 1.52mm | |
Feature
High efficiency, stability and durability, low insertion loss, high return loss, high mating times more than 10000+
Application
Widely used in optical fiber distribution frame ODF optical fiber communication, optical fiber wide access network, optical fiber CATV optical fiber instrument meter, optical fiber local area network, etc. Reliable performance.
Ordering Information: AT-A-B-C-D-E-F-G
| AT- | A | B | C | D | E | F | G |
| Attenuator | LP=LC/UPC |
M=Male
F=Female |
LP=LC/UPC |
M=Male
F=Female |
SM= SingleMode
MM= Multi mode |
1dB ...... 9dB 10dB 15dB 20dB 25dB 30dB |
31=1310nm
55=1550nm
85=850nm
30=1300nm |
| LA=LC/APC | LA=LC/APC | ||||||
| FP=FC/UPC | FP=FC/UPC | ||||||
| FA=FC/APC | FA=FC/APC | ||||||
| SP=SC/UPC | SP=SC/UPC | ||||||
| SA=SC/APC | SA=SC/APC | ||||||
| ST=ST/UPC | ST=ST/UPC | ||||||
| MU=MU/UPC | MU=MU/UPC |
For Example about full attenuator description : SC/UPC Single mode Female to male 3dB 1310/1550nm Build Out Fiber Optical Attenuator
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
