LC/UPC Fixed Flange 5db Attenuator Optical Fiber Female To Female Low PDL
Product Details
| Product Number: | Female To Female Fiber Optic Attenuator | Connector Type: | LC/UPC Female To Female |
|---|---|---|---|
| Product Type: | Adapter Type Attenuator | Sleeve Material: | Ceramic Or Metal |

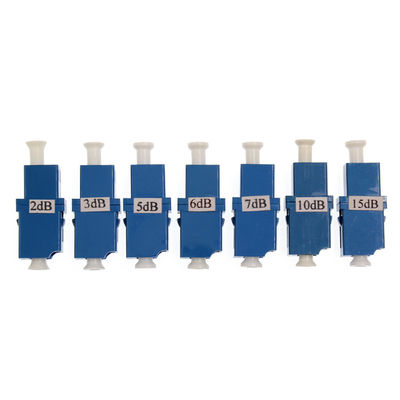

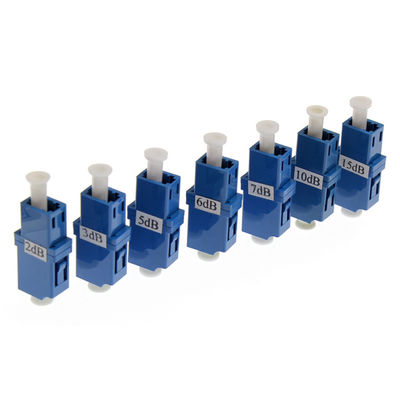

| Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db Etc. | Color: | Blue |
| Highlight |
5db Attenuator Optical Fiber,Flange 5db Attenuator Optical Fiber,lc attenuator 5db |
||
Product Description

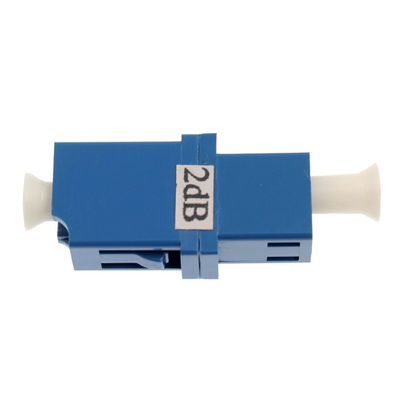

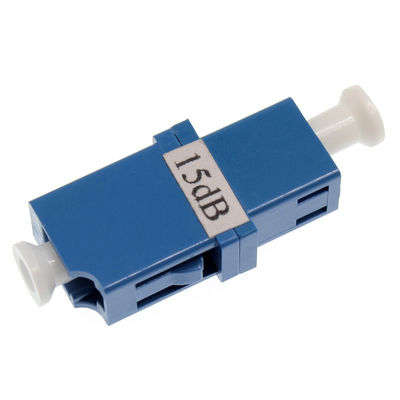

Female to Female Fiber Optic Attenuator LC/UPC Fixed Flange Attenuator
Model:LC/UPC-F-F Optical Attenuator
Place of Origin:Guangdong,China
Description
Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators.
Specifications
| Product type | Coupler Attenuator Male to Female |
| Operation wavelength | SM: 1200 to 1600nm or 1310/1550nm |
| MM: 850nm, 1300nm | |
| Return Loss | ≥ 50 db (PC) |
| ≥ 55 db (UPC) | |
| ≥ 65 db (APC) | |
| Attenuation Accuracy | +/-0.5 db for 1 to 5db attenuation |
| +/-10% for 6 to 30db attenuation | |
| Polarization Dependent loss | ≤ 0.2db |
| Mechanical endurance | >1000 |
| Maximum optical Input power | 200MW |
| Operating Temp Range | -40 to + 80degree |
| Standard | YD/T 1272.4-2007 |
Feature
1. Low back reflection and Low PDL
2. High precision attenuation value
3. Precision control of attenuation range
4. Wide attenuation range
5. Precision ceramic ferrule
6. FC, SC, ST, LC … optional
7. Plastic or metal housing material
Application
1. Fiber optical telecommunication system
2. Fiber optical CATV
3. Fiber optical sensor
4. Testing equipment
Ordering Information: AT-A-B-C-D-E-F-G
| AT- | A | B | C | D | E | F | G |
| Attenuator | LP=LC/UPC |
M= Male F= Female |
LP=LC/UPC |
M= Male F= Female |
SM= Single Mode MM= Multi mode |
1dB ...... 9dB 10dB 15dB 20dB 25dB 30dB |
31= 1310nm 55= 1550nm 85= 850nm 30= 1300nm |
| LA=LC/APC | LA=LC/APC | ||||||
| FP=FC/UPC | FP=FC/UPC | ||||||
| FA=FC/APC | FA=FC/APC | ||||||
| SP=SC/UPC | SP=SC/UPC | ||||||
| SA=SC/APC | SA=SC/APC | ||||||
| ST=ST/UPC | ST=ST/UPC | ||||||
| MU=MU/UPC | MU=MU/UPC |
For Example about full attenuator description : SC/UPC Single mode Female to male 3dB 1310/1550nm Build Out Fiber Optical Attenuator
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
