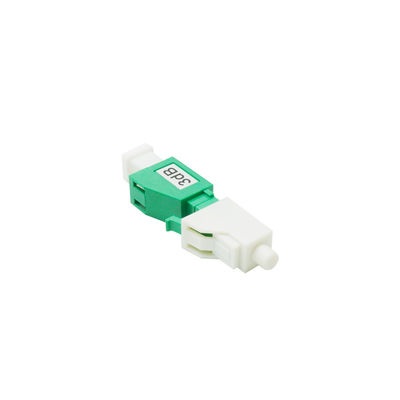

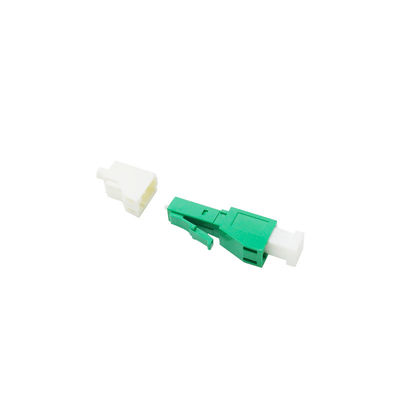

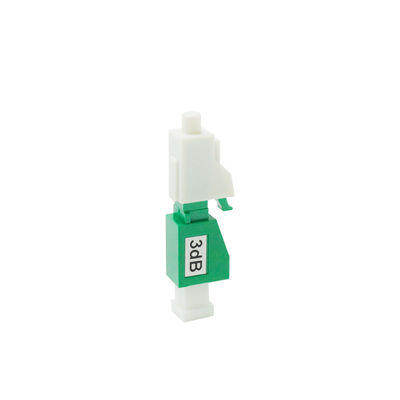

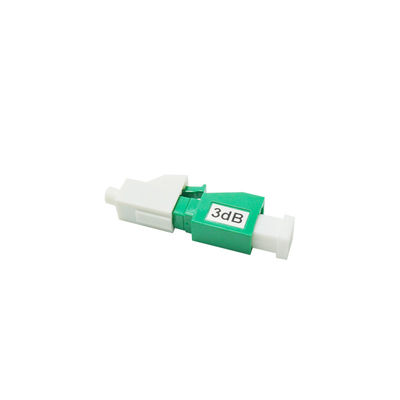

Single Mode 3dB APC LC Fiber Optic Attenuator Plug Type 1310/1550nm Wavelength
Product Details
| Product Name: | LC/APC Fiber Optic Attenuator | Fiber Type: | Single Mode |
|---|---|---|---|
| Connector Type: | LC Simplex | Attenuation: | 1-30dB |
| Wavelength: | 1310/1550nm | Type: | Male To Female |
| Highlight |
APC LC Fiber Optic Attenuator,3dB Fiber Optic Attenuator,3dB single mode fiber attenuator |
||
Product Description
3dB LC Fixed Type Plug Type LC APC Fiber Optic Attenuator
Model:LC/APC Optical Attenuator
Place of Origin:Guangdong,China
Description
Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. We supply various kinds of fiber attenuators, including LC, SC, and ST, FC, and Variable fiber optic attenuators.
Feature
* Fixed Attenuator(Fixed Type FC, SC, ST, LC)
* Female to male type ( FC, SC, ST, LC)
* In-Line Attenuator(Fused and Fiber Jumpers Type)
* High Return Loss(In-Line and High RL Type)
* Exact and Stable Attenuation(Variable Type)
Specifications
| Mode Type | SM | |
| Attenuation(dB) | UPC,APC | 1-30dB (1dB incremental) |
| Operating wavelength(nm) | 1310 and 1550 | |
| Return Loss(dB) | UPC | >50 |
| APC | >60 | |
| Tolerance on attenuation(dB) | 1-10dB | >±0.5 |
| >10dB | >±1.0 | |
| Polarization Dependent(dB) | <0.2 | |
| Operating Temperature(°C) | -40~+75 | |
Ordering Information: AT-A-B-C-D-E-F-G
| AT- | A | B | C | D | E | F | G |
| Attenuator | LP=LC/UPC |
M= Male F= Female |
LP=LC/UPC |
M= Male F= Female |
SM= Single Mode MM= Multi mode |
1dB ...... 9dB 10dB 15dB 20dB 25dB 30dB |
31= 1310nm 55= 1550nm 85= 850nm 30= 1300nm |
| LA=LC/APC | LA=LC/APC | ||||||
| FP=FC/UPC | FP=FC/UPC | ||||||
| FA=FC/APC | FA=FC/APC | ||||||
| SP=SC/UPC | SP=SC/UPC | ||||||
| SA=SC/APC | SA=SC/APC | ||||||
| ST=ST/UPC | ST=ST/UPC | ||||||
| MU=MU/UPC | MU=MU/UPC |
For Example about full attenuator description : SC/UPC Single mode Female to male 3dB 1310/1550nm Build Out Fiber Optical Attenuator
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
