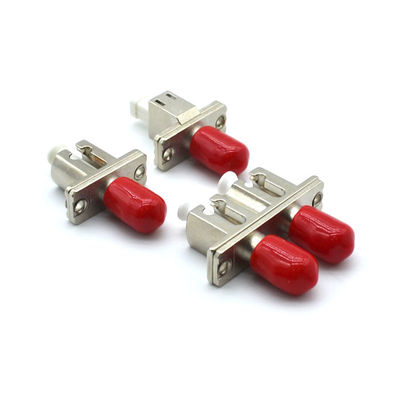

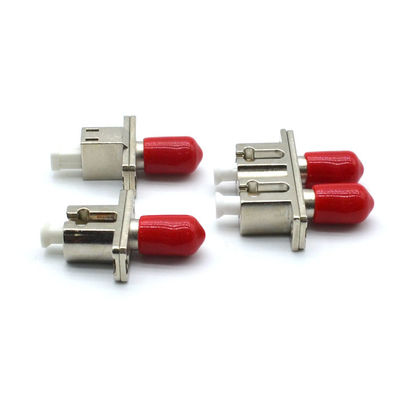

Flange Fixed Fiber Optic Attenuator LC-ST SM MM SX DX 0-30dB IEC Standard
Product Details
| Model Number: | LC-ST Flange Attenuator | Attenuation Value: | 0-30dB |
|---|---|---|---|
| Housing Material: | Metal And Plastic | Sleeve Material: | Zirconia |
| Standard: | GR-910-Core And YD/T 894.1-2010 | Use: | Optical Connector Converter, FTTH |
| Highlight |
Fixed Fiber Optic Attenuator,IEC Fiber Optic Attenuator,IEC fiber attenuator lc |
||
Product Description
FC-ST SM MM SX DX Flange Fiber Optical Attenuator
Place of Origin:Guangdong,China
Description
Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. We supply various kinds of fiber attenuators, including LC, SC, and ST, FC, and Variable fiber optic attenuators.
Feature
Good reproducibility and compatibility
Accurate attenuation value
High reliability
Compliant with IEC standard and Rohs
Compliant with Telcordia-GR-910-CORE
Specifications
| Item | Specification | |
| SM | MM | |
| Test wavelength | 1310&1550nm | 1300&850nm |
| Return loss | UPC≥50dB, APC≥60dB | ≥35dB |
| Operating wavelength | 1260-1650nm | |
| Attenuation range | 0-30dB | |
| Tolerance of attenuation | 0-5dB:±0.5dB | |
| 5-30dB:±10% | ||
| Repeatability | ≤0.1dB | |
| Interchange | ≤0.2dB | |
| Mechanical durability | ≤0.2dB (1000 times) | |
| Optical power | ≤200mw | |
Ordering Information: AT-A-B-C-D-E-F-G
| AT- | A | B | C | D | E | F | G |
| Attenuator | LP=LC/UPC |
M= Male F= Female |
LP=LC/UPC |
M= Male F= Female |
SM= Single Mode MM= Multi mode |
1dB ...... 9dB 10dB 15dB 20dB 25dB 30dB |
31= 1310nm 55= 1550nm 85= 850nm 30= 1300nm |
| LA=LC/APC | LA=LC/APC | ||||||
| FP=FC/UPC | FP=FC/UPC | ||||||
| FA=FC/APC | FA=FC/APC | ||||||
| SP=SC/UPC | SP=SC/UPC | ||||||
| SA=SC/APC | SA=SC/APC | ||||||
| ST=ST/UPC | ST=ST/UPC | ||||||
| MU=MU/UPC | MU=MU/UPC |
For Example about full attenuator description : SC/UPC Single mode Female to male 3dB 1310/1550nm Build Out Fiber Optical Attenuator
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
