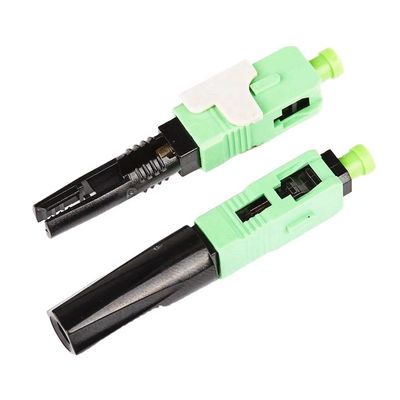

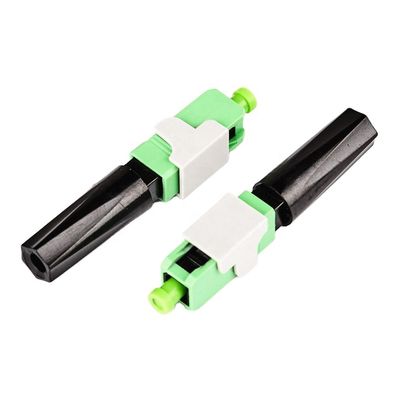

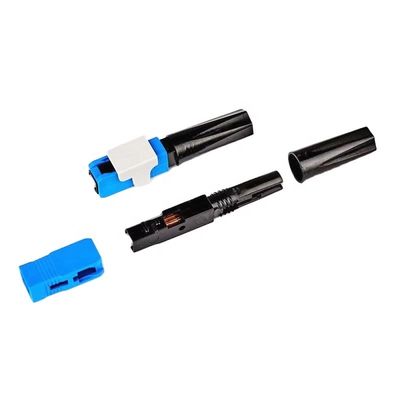

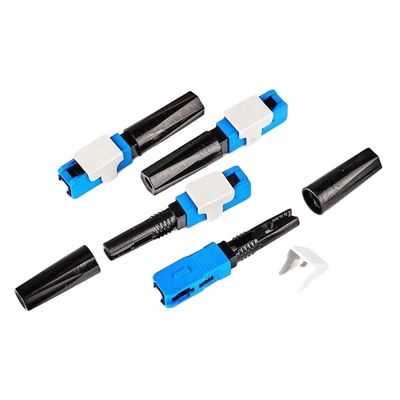

50mm Fast Connect Fiber Connectors , Sc Apc Quick Connector For FTTH Drop Bow Cable
Product Details
| Model Number: | Fiber Optic Fast Connector | Fiber Cable Type: | 3.0*2.0mm FTTH Drop Cable |
|---|---|---|---|
| Length: | 50mm/60mm | Insertion Loss: | ≤ 0.25dB(1310nm & 1550nm) |
| Return Loss: | UPC≥45DB, APC≥50DB | Temperature: | -40°C To +85°C |
| Highlight |
50mm Fast Connect Fiber Connectors,Sc Apc Quick Connector,50mm Sc Apc Quick Connector |
||
Product Description
SC/APC SC/UPC Fiber Optic Fast Connector For FTTH Drop Bow type Cable
Description
The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing, this connector during the installation process does not require any adhesive and curing process. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule, They are widely used in FTTx, Connecting up Renovation of Computer/controlling Room applications.
The Field Assembly SC/PC SC/APC SC/UPC Fast Connector for FTTH can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibe ederface inspection.
Pls Note: Choose type in accordance with connecting head of optical movable connector. According to the structural form of connecting head. It can be divided into FC,FC,ST,LC,MTRJ,MPO,MU,SMA,DDI,DIN4,D4,E2000 various types. The excelent strength and stability(200-600gt insertion and extraction force)can be got by good sintered technology.
Characteristics:
- No special tools needed when installed
- Without any gluing and polishing process
- Can be made on-site without splicing connectors
- Only 30 seconds needed to learn the process of installation
- Good high temperature performance and good sealing
- Easy installation, quick and fast in the assembly field
- High return loss and low insertion loss
Application:
- Distribution Frames & Patch Panels
- Fiber Optic Patch Cord & Pigtail
- Telecommunication Networks
- Data Processing Networks
- FTTH (Fiber To The Home)
- Local Area Network (LAN)
- Test Equipment.
- CATV & CCT
Specification
| Application Cable | 3.1 x 2.0 mm butterfly optical cable;FTTH Drop Cable |
| Boot type | 0.9mm/2.0mm/3.0mm fiber cable |
| Application model | G652D Singlemode |
| Fiber diameter | 125μm ( 657A & 657B ) |
| Tight cladding diameter | 250μm & 900μm |
| Tensile strength | -50N |
| Online stretching resistance test (30 N) | △IL ≤ 0.3dB |
| Mechanical permanence (500 times) | △IL ≤ 0.3dB |
| Insertion loss (db) | Maximum≤0.5DB, Mean≤0.3DB |
| Return loss(db) | UPC≥45DB, APC≥50DB |
| Assembly times | >10 times |
| Tight cladding clamp force | -8N |
| Success rate | - 98% |
| Storage/Operating Temperature | -40°C to + 85°C |
Installation Method
Package details:
This product will be well packaged by carton with Foam or other shock proof materials to protect goods from being damaged during the shipping, or as customer's required.
