SiO2 Fiber Optic Polishing Tools Transparent Micro Lapping Film Scratch Less Polishing
Product Details
| Product Name: | Fiber Optic Polishing Film | Type: | Testers &Tools |
|---|---|---|---|
| Material: | SiO2 | Diameter: | 127mm |
| Color: | Transparent | Package: | 100pcs / Set |
| Film Life: | 5 To 10 Times | Warranty: | 1 Year |
| Highlight |
SiO2 Fiber Optic Polishing Tools,Transparent Fiber Optic Polishing Tools,SiO2 Micro Lapping Film |
||
Product Description

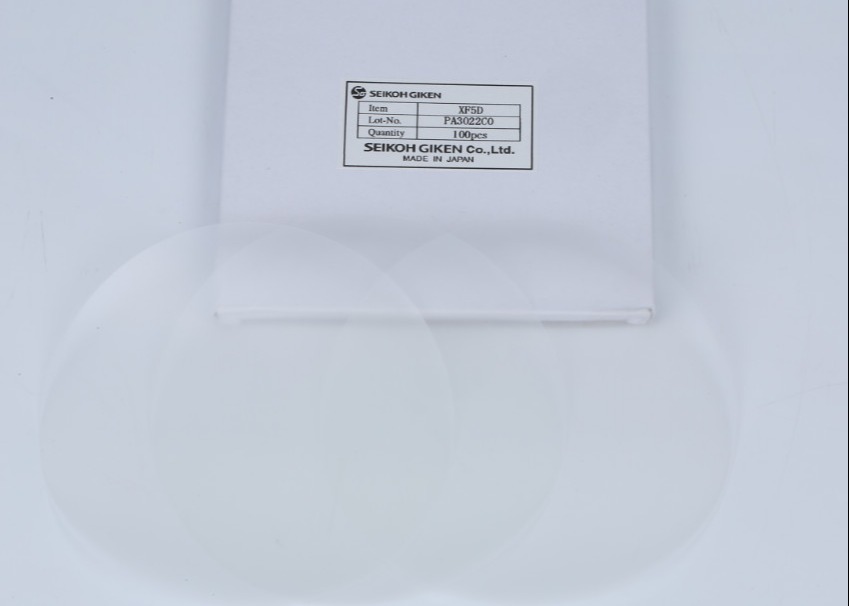

Japan XF5D Seikoh Giken Fiber Optic Final Polishing Film
Key Feature:
1. Stable fiber height over use of film life for both 2.5mm and 1.25mm polishing.
2. Scratch less polishing.
3. Use only purified water.
4. Designed to provide GR-326 endface geometry.
5. Lasts longer compared to exiting finishing films.
6. Easily achieve cost reduction by longer service life
7. Ideal for UPC and APC quality polishing.
Specifications:
| Part Number | XF5D |
| Brand | Seikoh Giken |
| Original Place | Japan |
| Material | SiO2 |
| Diameter | 127mm |
| Color | Translucent |
| Application | 2.5mm and 1.25mm Zr. Ferrule |
| Film Life | 5 to 10 times |
| Package | 100pcs / set |
| Storage Condition | Temp: 10~30℃ Humid: 30~70% |
Application:
1. For Various Single Fiber & Multi-fiber Connector Applications.
2. Applied for Seiko Intruments OFL-15 and OFL-16 machines.
3. 5" disk is the standard size for the Seikoh Giken SFP-550, SFP-520, SFP-510, SFP-500.
4. Used for CLX-02E,CLX-04E, and some other fiber polishing machine.
5. Applied for Seiko Intruments OFL-15 and OFL-16 machines.
XF5D film shows consistent & closest 0nm fiber height results over times of use compared with other tested finishing films.
Related Films:
| Part Number | Color | Diameter | Particle Size | Sheet/Pack |
| DA5D-30U | Green | 127mm | 30um | 20 |
| DR5D-9U | Pink | 127mm | 9um | 20 |
| DG5D-5U | Orange | 127mm | 5um | 20 |
| DH5D-3U | Light Yellow Green | 127mm | 3um | 20 |
| DI5D-1.5U | Yellow | 127mm | 1.5um | 20 |
| DJ5D-1U | Lavender | 127mm | 1um | 20 |
ORDERING OPTIONS
| Part Number | Material | Application | Packing |
| GA5D-30um | Silicon Carbide | Epoxy Removal | 20pcs/pack |
| DR5D-9um | Diamond | Coarse Polishing | 20pcs/pack |
| DG5D-5um | Diamond | Medium Polishing | 20pcs/pack |
| DH5D-3um | Diamond | Medium Polishing | 20pcs/pack |
| DI5D-1.5um | Diamond | Fine Polishing | 20pcs/pack |
| DJ5D-1um | Diamond | Final Polishing | 20pcs/pack |
| XF5D-0.02um | Silicone Dioxide | UPC Final Polishing | 100pcs/pack |
| D30-30um | Diamond | Adhesive Removal | 50pcs/pack |
| D9-9um | Diamond | Coarse Polishing | 50pcs/pack |
| D5-5um | Diamond | Medium Polishing | 50pcs/pack |
| D3-3um | Diamond | Medium Polishing | 50pcs/pack |
| D1-1um | Diamond | Fine Polishing | 50pcs/pack |
| ADS-127 | Silicone Dioxide | Final Polishing | 100pcs/pack |
| SC-16um | Silicon Carbide | Medium Polishing | 50pcs/pack |
| SC-3um | Silicon Carbide | Medium Polishing | 50pcs/pack |
| SC-1um | Silicon Carbide | Fine Polishing | 50pcs/pack |
| AA1-MFPS | Flocked Film Without Abrasive | MPO Polishing | 50pcs/pack |
| CE1-MFPS | Flocked Film Without Abrasive | MPO Polishing | 50pcs/pack |
| MFP610 | Flocked Film Without Abrasive | MPO Final Polishing | 50pcs/pack |
| Remark: (1) All polishing films could be manufactured according to custom design. | |||
| (2) If you could not find the polishing films you want, please feel free to contact us via email or phone. | |||
