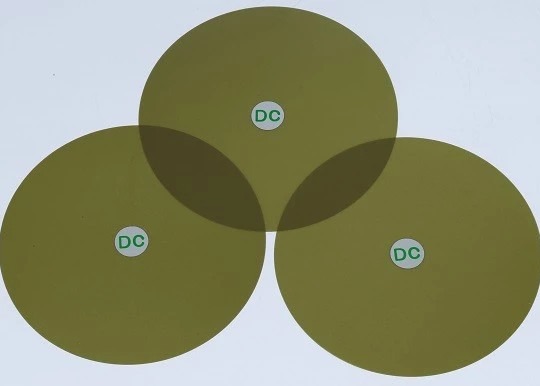

High Reliability Fibre Optic Lapping Film , Low Undercut Fiber Optic Polishing Paper
Product Details
| Product Name: | Fibre Optic Polishing Film | Type: | Fiber Optic Polishing Film |
|---|---|---|---|
| Colour: | As Picture | Size: | 1.5/3/5/9/30UM |
| Diameter: | 100mm/70mm/2.75 Inch/4inch/5 Inch | Application: | For Fiber Optic Connector Polishing |
| Use: | FTTH,FTTX | Operating Temperature: | -20℃ -- +60℃ |
| Highlight |
High Reliability Fibre Optic Lapping Film,Low Undercut Fiber Optic Polishing Paper,Low Undercut Fibre Optic Lapping Film |
||
Product Description
Professional Manufacturing Japan Seikoh Giken High Reliability Fibre Optique Polishing Film
Description
1. Fiber optic connector polishing
2. Designed for high volume manufacturing
3. Quick change tooling
4. APC back reflection as low as -70 dB
5. UPC back reflection as low as -60 dB
6. Insertion loss 0.2 dB typical
7. Super centering accuracy
8. Low undercut
9. Excellent connector endface polishing quality
Polishing film procedure
| Polishing Step | Polishing Film | Polishing Fluid | Thrust(Std.) | Polishing Time(Std.) | Polishing Film Life(Std.) |
| Adhesive removal(hand polishing) |
Abrasive paper | None | Approx 1 to 2kg | 15 Sec | Dispose of every time |
| Grinding(1st polishing) | 9 mic | Water | Point 2 | 50 Sec | 30 times |
| Grinding(2nd polishing) | 3mic | Water | Point 2 | 50 Sec | 30 times |
| Grinding(3rt polishing) | 1mic | Water | Point 3 | 50 Sec | 30 times |
| Grinding(4th polishing) | ADS(0.05mic) | Water | Point 3 | 50 Sec | 10 times |
Application
1. Fiber-optic lapping;
2. Ferrule Connector(Fiber Channel) lapping;
3. Pigtail polishing;
4. D9-9UM diamond film.
Feature
1.Full stainess steel polishing plate, more reliable and stable.
2.Double motors with sufficient power.
3.High accuraty Machinary size, minimal plane tolerance.
4.Rotation speed and time adjustable with simple operation.
5.Excellent stability, five or ten years lifetime.
Order information
| No. | Model/Type | Description | MOQ pack |
| 1 | D30-30um | Epoxy Removal / APC angle polishing film | 100 pcs /pack |
| 2 | D15-15um | Epoxy removal polishing film | 100 pcs /pack |
| 3 | D9-9um | Coarse polishing film | 100 pcs /pack |
| 4 | D5-5um | Medium Polishing film | 100 pcs /pack |
| 5 | D3-3um | Medium Polishing film | 100 pcs /pack |
| 6 | D1-1um | Fine Polishing film | 100 pcs /pack |
| 7 | ADS-127(0.02um) | Final policing film | 100 pcs /pack |
