Cerium Oxide 0.5um Square Diamond Lapping Paper 127mm Fiber Optic Polishing Film
Product Details
| Product Name: | Fiber Optic Polishing Films | Type: | Fiber Optic Polishing Consumables |
|---|---|---|---|
| Dimensions: | 127mm | Color: | Brown |
| Material: | Cerium Oxide | Application: | Connectors Polishing |
| Weight: | 0.002kg | Apllication: | Fiber Optic Connector, Ceramics Ferrule |
| Highlight |
Cerium Oxide Diamond Lapping Paper,0.5um Diamond Lapping Paper,127mm Fiber Optic Polishing Film |
||
Product Description

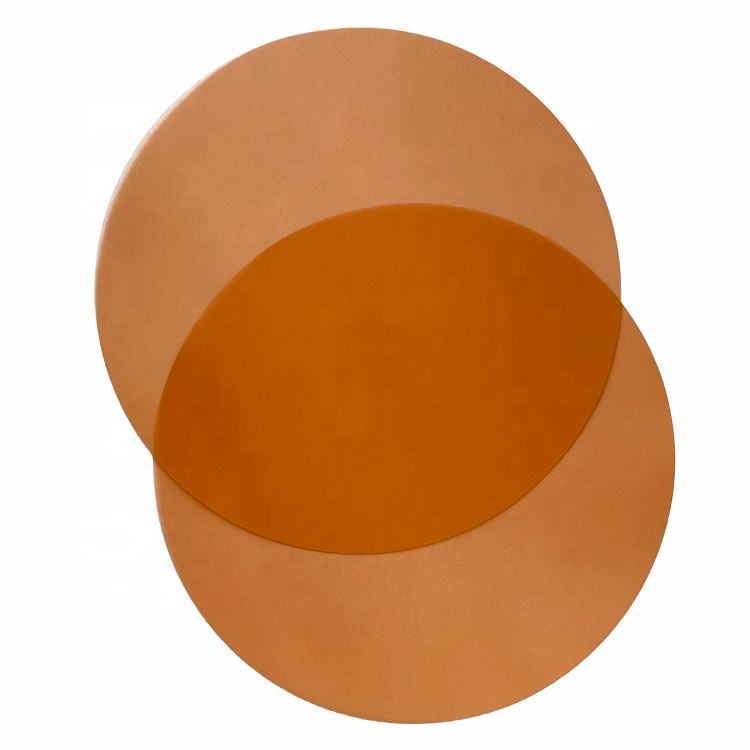

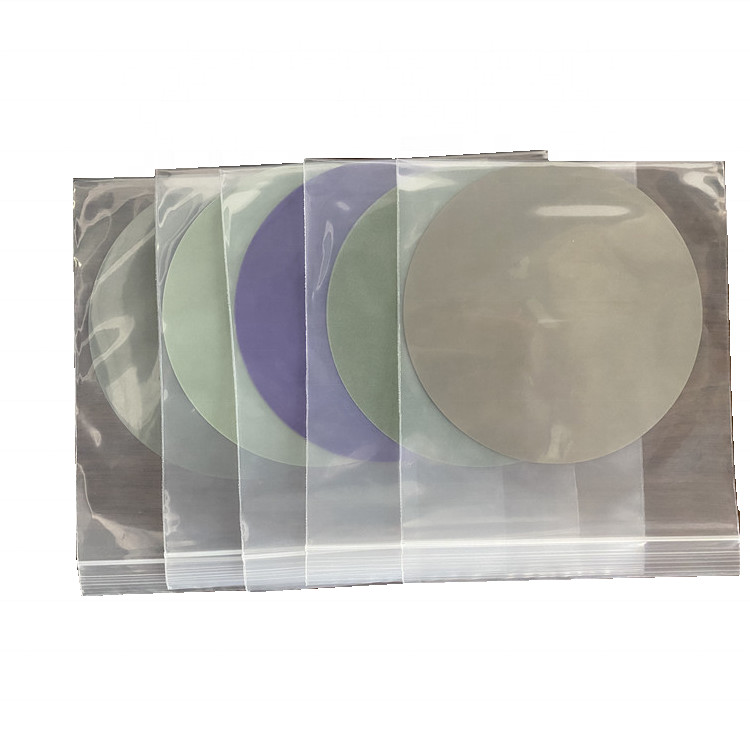

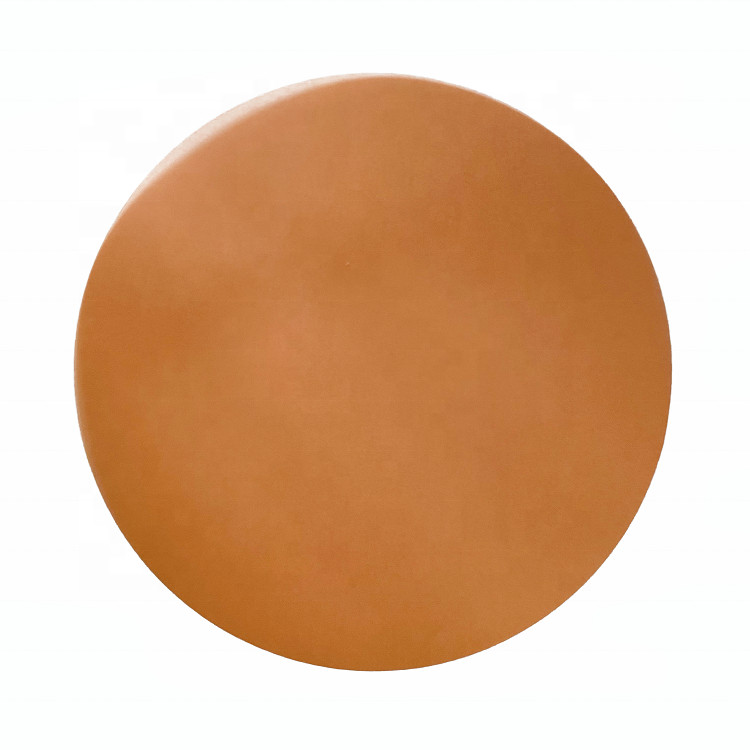

Cerium Oxide 0.5um Square Lapping Polishing Film 127mm Fiber Optic Polishing Films
Description
Fiber optic polishing film is coated with precisely graded minerals (such as diamond, aluminum oxide, silicon carbide, silicon oxide, cerium oxide and so on) on the high strength polyester backing to provide a uniform, consistent finish. Available in 0.01-45 μm grades, with or without PSA (Pressure Sensitive Adhesive) backing.
Specification
| Model | CO-0.5UM |
| Place of Origin | China |
| Standard Size | Φ127mm (5inch) |
| Material | Cerium Oxide |
| Article Grade | 0.5UM |
| Color | Brown |
| Recommended Polishing Medium | Water/Oil |
| Apllication | Fiber Optic Connector, Ceramics Ferrule |
| Package | 100pcs / set |
| Storage Condition | Temp: 10~30℃ Humid: 30~70% |
Order Options
| Part Number | Material | Application | Packing |
| GA5D-30um | Silicon Carbide | Epoxy Removal | 20pcs/pack |
| DR5D-9um | Diamond | Coarse Polishing | 20pcs/pack |
| DG5D-5um | Diamond | Medium Polishing | 20pcs/pack |
| DH5D-3um | Diamond | Medium Polishing | 20pcs/pack |
| DI5D-1.5um | Diamond | Fine Polishing | 20pcs/pack |
| DJ5D-1um | Diamond | Final Polishing | 20pcs/pack |
| XF5D-0.02um | Silicone Dioxide | UPC Final Polishing | 100pcs/pack |
| D30-30um | Diamond | Adhesive Removal | 50pcs/pack |
| D9-9um | Diamond | Coarse Polishing | 50pcs/pack |
| D5-5um | Diamond | Medium Polishing | 50pcs/pack |
| D3-3um | Diamond | Medium Polishing | 50pcs/pack |
| D1-1um | Diamond | Fine Polishing | 50pcs/pack |
| ADS-127 | Silicone Dioxide | Final Polishing | 100pcs/pack |
| SC-16um | Silicon Carbide | Medium Polishing | 50pcs/pack |
| SC-3um | Silicon Carbide | Medium Polishing | 50pcs/pack |
| SC-1um | Silicon Carbide | Fine Polishing | 50pcs/pack |
| AA1-MFPS | Flocked Film Without Abrasive | MPO Polishing | 50pcs/pack |
| CE1-MFPS | Flocked Film Without Abrasive | MPO Polishing | 50pcs/pack |
| MFP610 | Flocked Film Without Abrasive | MPO Final Polishing | 50pcs/pack |
| Remark: (1) All polishing films could be manufactured according to custom design. | |||
| (2) If you could not find the polishing films you want, please feel free to contact us via email or phone. | |||
Feature
1. Full stainess steel polishing plate, more reliable and stable.
2. Double motors with sufficient power.
3. High accuraty Machinary size, minimal plane tolerance.
4. Rotation speed and time adjustable with simple operation.
5. Excellent stability, five or ten years lifetime.
