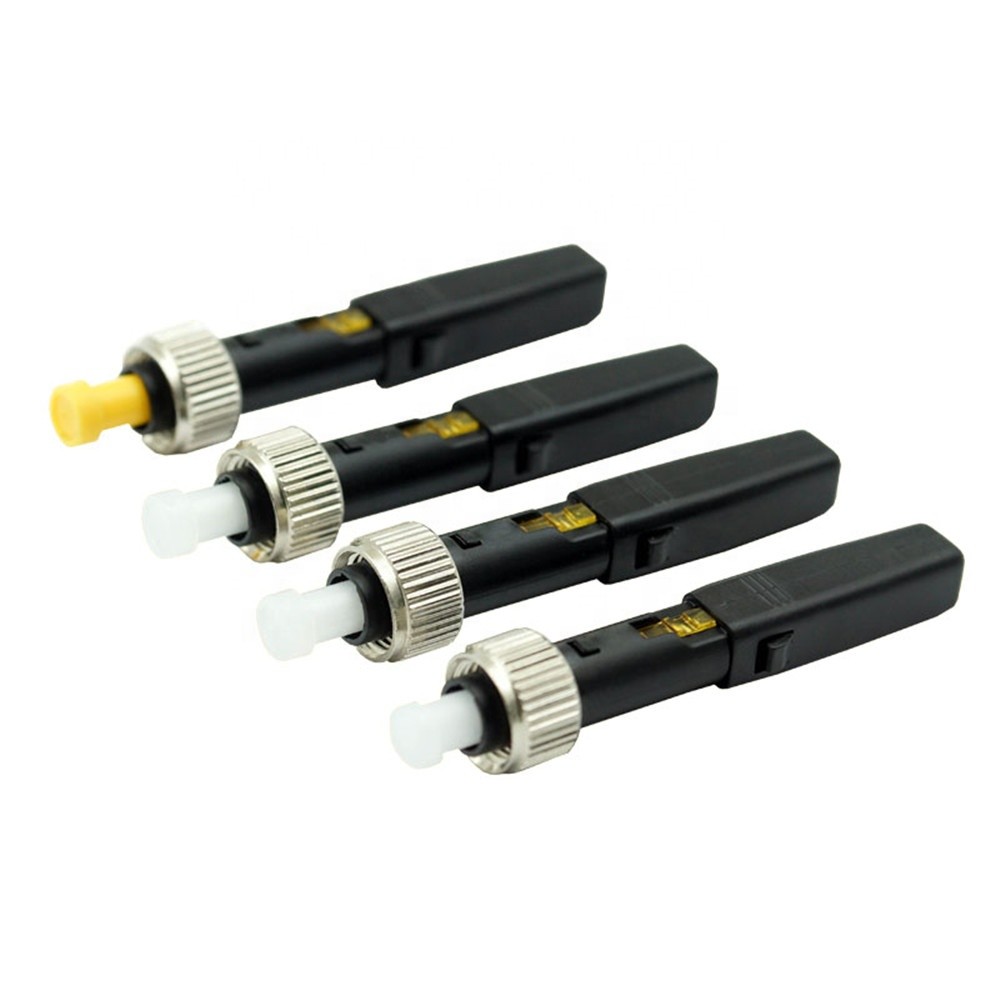

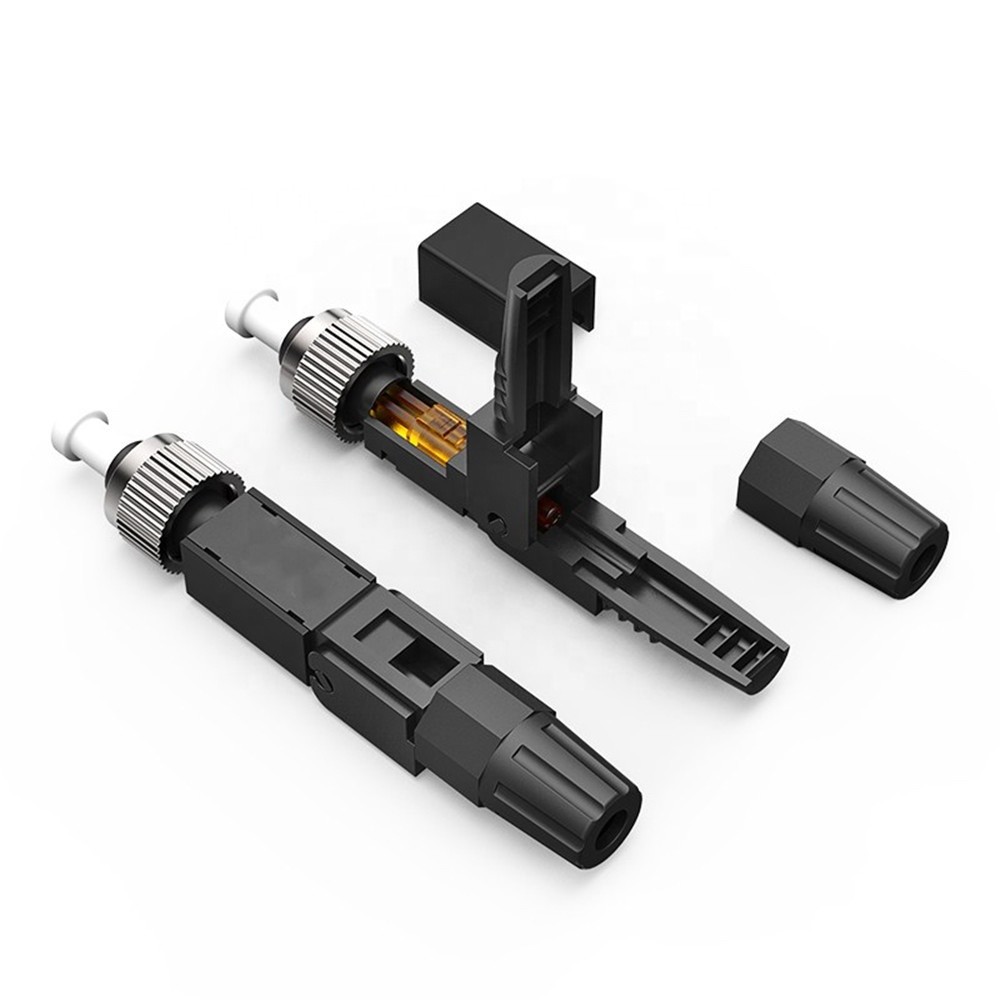

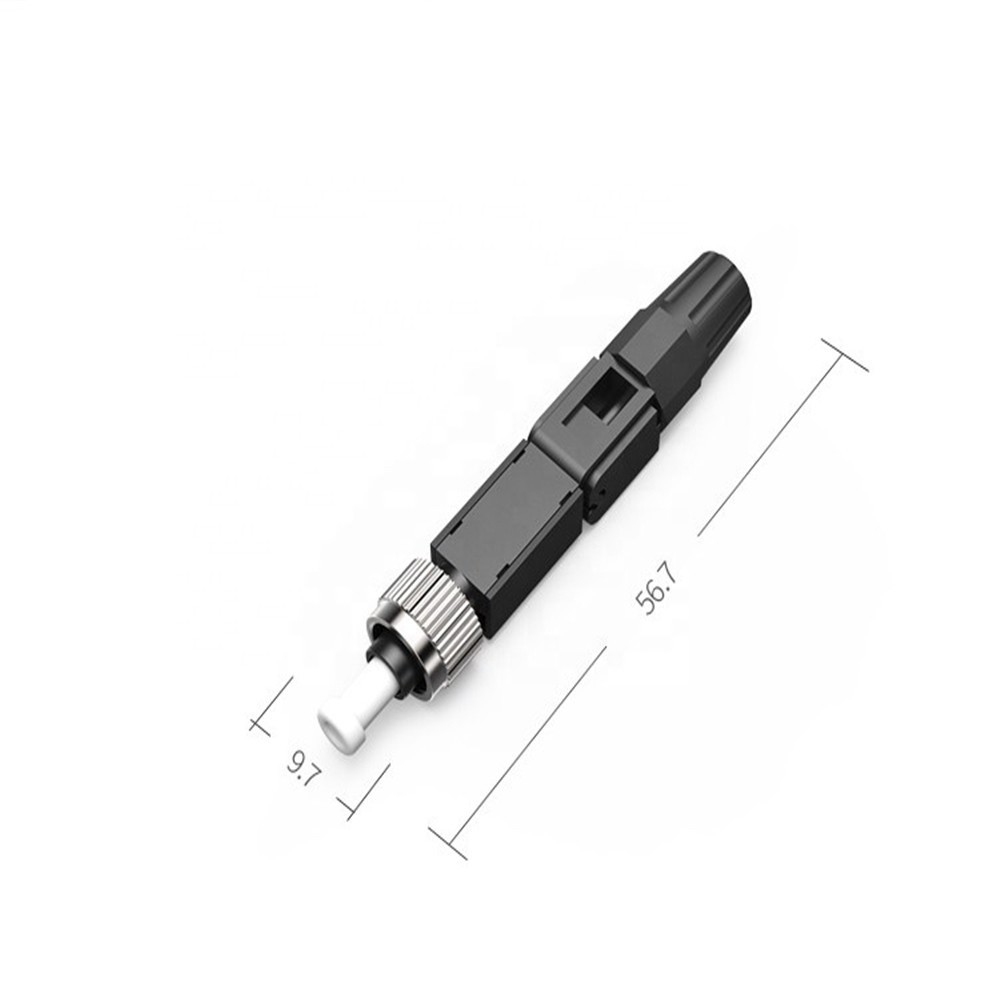

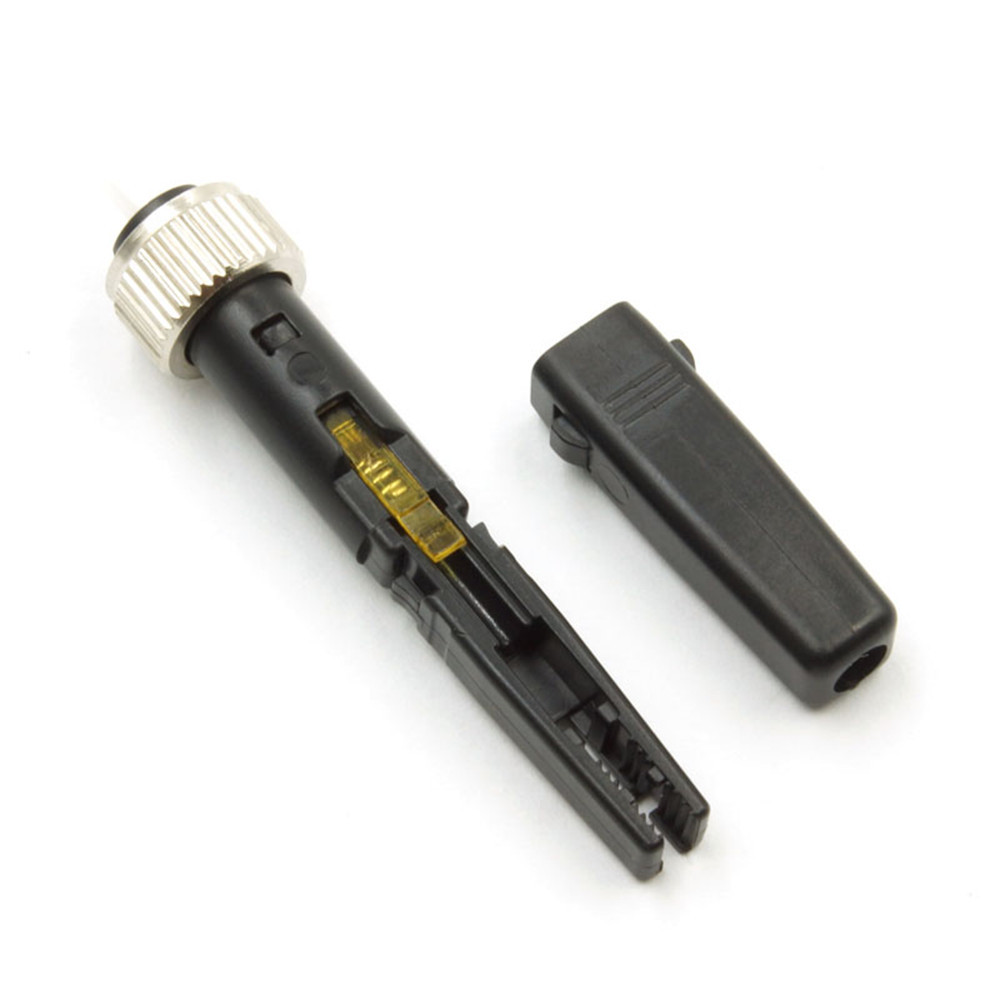

FTTH Field Fiber Optic FC PC Apc Fast Connector For Telecommunications
Product Details
| Product Name: | Fiber Optic Fast Connector | Color: | Black |
|---|---|---|---|
| Application: | Telecom Networks FTTH FTTX CATV | Fiber: | Simplex/Duplex |
| Surface Polishing: | UPC, APC, PC | Mode: | SM, MM |
| Highlight |
FC PC Apc Fast Connector,Fiber Optic Apc Fast Connector,Telecommunications ftth fast connector |
||
Product Description
FTTH Field Quick Assembly Fiber Optic FC PC APC quick connector for telecommunications
Features
* Quick and easy to install without special tools
* Power-save, as it does not need hot melting
* Without any gluing and polishing process
* Reusable and repeat operation times are up to 500
* Integrated protection of the casing to prevent the connector form impact
* Can be installed in two minutes
* Connector opticons:FC/SC
* Low insertion loss and high return loss
* FTTH cable, fiber optic cable optional
* Standards of IEC, Telcordia
Specification
| Technical Data | Description |
| Connector Type | SC/UPC SC/APC FC/UPC FC/APC |
| Fiber Cable | 0.9/2.0/3.0 in/outdoor FTTH cable |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | ≥45dB |
| Plug Times | ≥ 1000pcs |
| Operating Wavelength | 1260nm-1650nm |
| Working Temperature | -40 ~ +75 C |
| Fiber Type Application | single mode |
Package details:
This product will be well packaged by carton with Foam or other shock proof materials to protect goods from being damaged during the shipping, or as customer's required.
