AC110V 220V Fiber Optic Polishing Machine Efficient And Durable
Product Details
| Product Name: | Fibre Optic Connector Polishing Equipment | Dimensions: | 285*220*338mm |
|---|---|---|---|
| Electric Power: | 126w | Application: | Fiber Optic Patch Cord Production |
| Weight: | 27 Kg | Type: | Fiber Optic Equipment |
| Voltage: | 110~220V AC 50Hz/60Hz | Working Temperature: | 8C°-45C° |
| Insert Loss: | 0.3 DB (SM) 0.2 DB (MM) | Return Loss: | 50 DB (PC) 60 DB (APC) |
| Highlight |
AC110V Fiber Optic Polishing Machine,AC220V Fiber Optic Polishing Machine,AC110V Patch Cord Making Machine |
||
Product Description

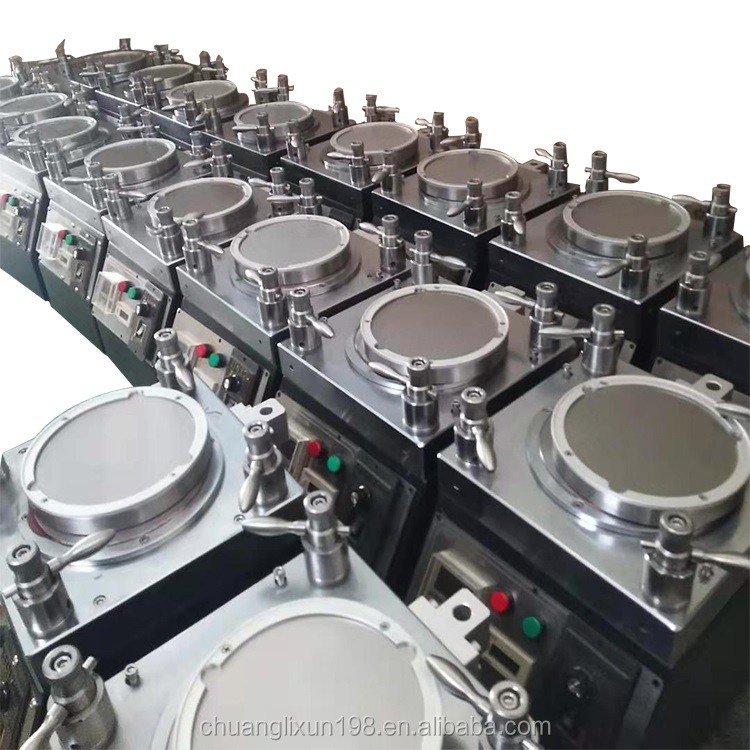

AC110V 220V Fiber Optic Polishing Machine Efficient And Durable
Efficient And Durable Fibre Optic Connector Polisher For Fiber Optic Patch Cord Production
Model:CLX-02E
Place of Origin:ShenZhen,China
Product description of Fibre Optic Connector Polished Machine
This machine is designed for mass production needs, and can process excellent connector end-face of LC, SC, ST, FC, MTRJ, E2000 and ect as well as angle polishing. And more the polishing machine can save material and low cost for polishing.
Patch Cord Production Machine Product features
1. High-precision optical fiber connector polishing machine
2. Can Quickly change polishing jigs.
3. The polishing trails obey the planet orbit. Polishing rotation speed is adjustable with normally 140RPM.
4. Maximum polishing capacity reaches 48 pcs for MU and LC connectors. And for SC, FC, ST. it reaches 36 pcs.
5. High efficiency, The first pass yield for end face quality reach 98%～100%
6. The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber optic connector polishing 3D pass rate> = 98% (100% Typical, according to IEC),
7. APC return loss ≥60dB , PC(UPC)return loss ≥55dB , Insertion loss ≤0.20dB ( typical)
8. The high quality stainless steel material after heat-treatment ensures the high precision & durability of the machine,Excellent stability, Eight or ten years lifetime
Fiber Patch Cord Polishing Machine Specifications
|
1. Size |
285*220*338mm |
|
2. O.D. of Rotation Plate |
127 mm(5 inch) |
|
3. Time Settings |
99 min 99 sec (Max) |
|
4. Speed for Rotation Plate |
80 rpm |
|
5. Height of Plate Jumpiness |
<10 um |
|
6. Pressure Configuration |
21 ~ 36 N/cm2 |
|
7. Work Temperature |
10℃~40℃ |
|
8. Relative Humidity |
15%~85% |
|
9. Noice |
unloading Less 50 dB |
|
10. Libration |
Working Status 0.25g 5~100Hz 10min |
|
11. Stopping Status |
0.50g 5~100Hz 10min |
|
12. Power Input |
110~230 VAC 50Hz/60Hz |
|
13. Electric Power |
126W |
|
14. Net Weight |
27kg |
|
15. Lnsertion Loss |
≤0.20dB |
|
16. Return Loss |
≥55dB(UPC,PC) ≥60dB (APC) |
About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples.
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5. How do we pay
......Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description
