Four Corners Pressurized fiber cable connector machine end face Grinding
Product Details
| Product Name: | Optical Fiber Patch Cord Grinding Machine | Dimensions: | 285(W)*220(D)*338mm(H) |
|---|---|---|---|
| Electric Power: | 126w | Certification: | RoHS |
| Application: | Fiber Optic Patch Cord Production Line | Net Weight: | 27 Kg |
| Model Number: | CLX | Power Input: | 220~230 VAC 50Hz/60Hz 110~120 VAC 50Hz/60Hz |
| Insert Loss: | 0.3 DB (SM) 0.2 DB (MM) | Return Loss: | 50 DB (PC) 60 DB (APC) |
| Highlight |
Pressurized Fiber Cable Connector Machine,RoHS Fiber Cable Connector Machine,Pressurized Fiber Optic Grinding Equipment |
||
Product Description

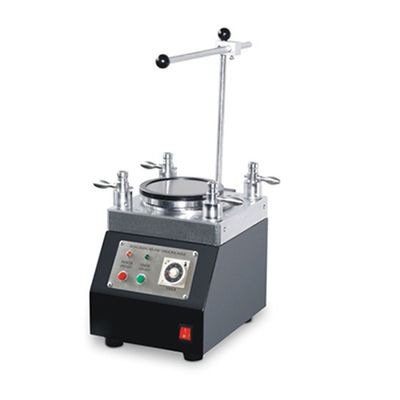

Four Corners Pressurized Fiber Cable Connector Machine End Face Grinding
Four Corners Pressurized Fiber end face Grinding Machine Optical Fiber Grinding Machine
Model:CLX-02E
Place of Origin:ShenZhen,China
Fiber Optic Grinding Equipment Product description
This Square Pressure Fiber Optic Polishing Machine strength controlled by four angle, thus the pressure is more precise to control and the final products has higher precision.
Each polishing jig for this machine is available as LC,SC,ST, FC, MTRJ,E2000 PC connector as well as angle polishing.
May process each kind of standard fiber optic connectors, such as FC/UPC/APC,SC/UPC/APC, ST/UPC/APC, LC/UPC/APC, ,MU/UPC/APC, MTRJ,E2000/UPC/APC etc.
Optical Fiber Connector Grinding Equipment features
1. High accuraty polishing machine
2. Designed for high volume manufacturing
3. Quick change tooling
4. APC back reflection as low as -60 dB
5. UPC back reflection as low as -55 dB
6. Insertion loss 0.2 dB typical
7. Super centering accuracy
8. Low undercut
9. Excellent connector endface polishing quality
Fiber Optical Connector Grinding Machine Key Feactures
1. Double motors with sufficient power
2. High accuraty Machinary size, minimal plane tolerance
3. High accuraty Machinary size, minimal plane tolerance
4. Excellent stability, five or ten years lifetime
Fiber Optic Patch Cord Grinding Machine Specifications
| 1. Certificate | RoHS |
| 2. APC return loss | -60 dB |
| 3. UPC return loss | -55 dB |
| 4. Insertion loss | 0.3 dB (SM), 0.2 dB (MM) |
| 5. Under cut | 50nm |
| 6. 3D pass | PC>95%, APC>90% |
| 7. Polishing capacity | SC 36 Max, LC 48 Max |
| 8. Pressure source | Coil Spring |
| 9. Motor speeed | 140rpm rotation, 2rpm revolution |
| 10 .Polish plate size | 127 mm(5 inch) |
| 11. Time settings | 99 min 99 sec (Max) |
| 12. Plate jumpiness height | <10 um |
| 13. Pressure configuration | 21 ~ 36 N/cm2 |
| 14. Pressure range | 0~5kg |
| 15. Noice | unloading <50 dB |
| 16. Work Temperature | 10℃~40℃ |
| 17. Relative Humidity | 15%~85% |
| 18. Libration | Working Status 0.25g 5~100Hz 10min |
| 19. Stopping Status | 0.50g 5~100Hz 10min |
| 20. Power Input | 220~230 VAC 50Hz/60Hz 110~120 VAC 50Hz/60Hz |
| 21. Electric Power | 126W |
| 22. Machine Size | 285(W)*220(D)*338mm(H) |
| 23. Net Weight | 27kg |
| 24. Warranty | One-year warranty |
About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples.
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5. How do we pay
......Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description
