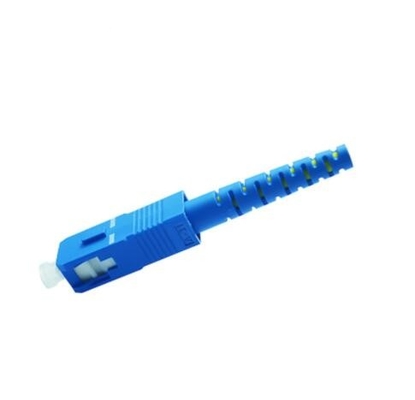

SC PC Fiber Patch Cord Connectors PBT For FTTH FTTB FTTX Network
Product Details
| Type: | Fiber Optic Connector | Application: | FTTH FTTB FTTX Network,Data Center,CATV |
|---|---|---|---|
| Fiber Type: | SM MM | Return Loss: | PC≥45dB, UPC≥50dB,APC≥60dB |
| Insertion Loss: | 0.2dB(SM), 0.3dB(MM) | Material: | PBT |
| Highlight |
94V-0 Fiber Patch Cord Connectors,FTTX Network Fiber Patch Cord Connectors,PBT SC PC Fiber Connector |
||
Product Description
Good quality SCPC fiber optic connector for 0.9mm 2.0mm 3.0mm Optic Fiber Patchcord
Specifications
| Parameter | Unit | FC,SC,LC | ST,MU | MT-RJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥50 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating Wavelength | nm | 1310,1550 | 1310,1550 | 1310,1550 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | ℃ | -40～+75 | -40～+75 | -40～+75 | |||||||
| Storage temperature | ℃ | -40～+85 | -45～+85 | -45～+85 | |||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
|||||||
Feature
● Low insertion loss
● Good repeatability
● Good compatibility
● Minimum number of inserts 500 times
● All parts compliant with RoHs/REACH
● IEC standard compatible
● UL Flame Rating of 94V-0
● The color of the boot can be customized
Application
